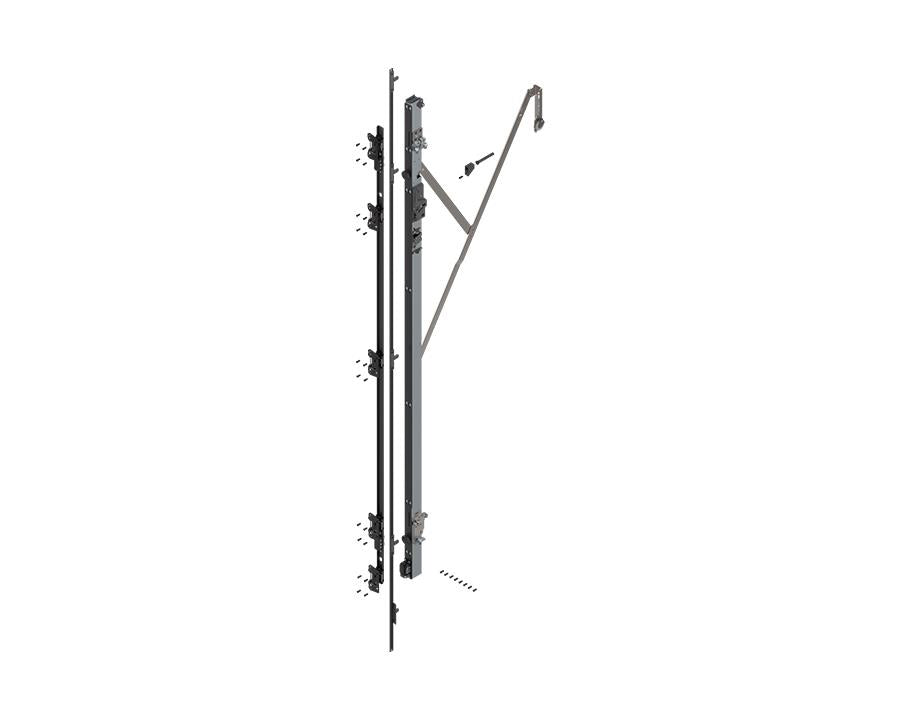

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2257 – 2406mm. Left. 801T4000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge bracket
• Application: Suitable for REVEGO uno
• Length: 2207 mm
• Pocket Height: 2257 – 2406 mm
• Material: Zinc-plated steel
• Fixing Method: Tool-free installation
• Package: Set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended for use with all REVEGO uno & duo pocket systems

Key Details:

• Plan internal construction based on the internal dimensions (W x H x D)
• Begin layout with the widest front in multi-panel setups
• Proven for 40,000 open/close cycles
• Opening force stays below 70 N, per durability testing
• Drilling guides, dimensions, and part details available in the Blum Product Configurator

Installation Notes:

• Use a CNC machine or Blum MINIPRESS top with EASYSTICK for machining wood parts
• Requires both horizontal drilling and a track cut-out
• Blum’s drilling template is recommended for accurate pocket connector placement
