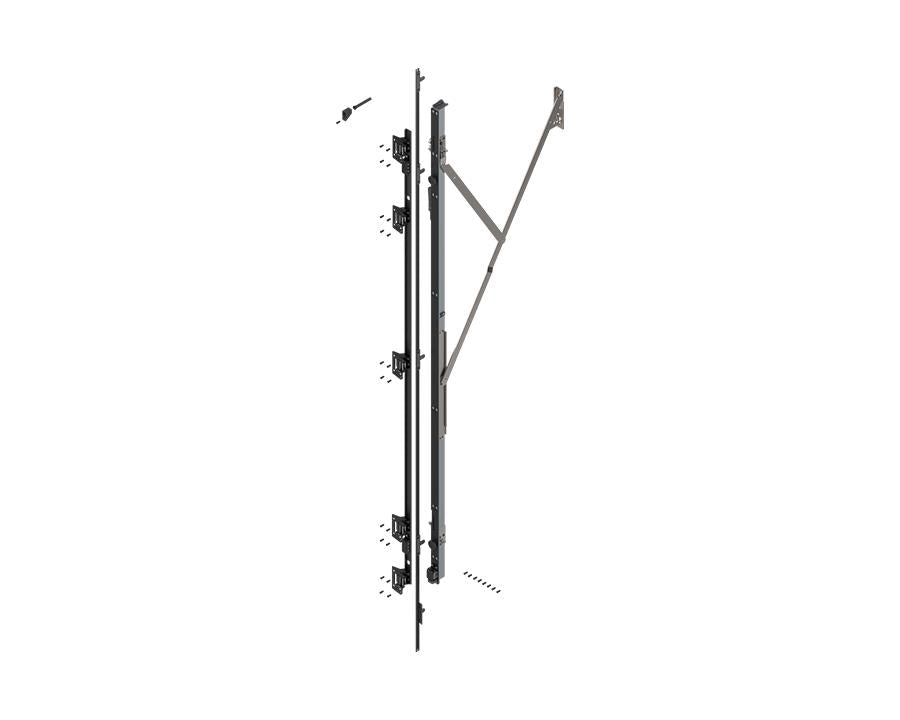

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2257 – 2406mm. Right. 801T4000.R2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge bracket
• Application: Designed for use with REVEGO uno
• Length: 2207 mm
• Pocket Height Range: 2257 – 2406 mm
• Material: Steel
• Finish: Zinc plated
• Fixing Method: Tool-free installation
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum system screw, countersunk head 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Important Notes:

• Internal cavity dimensions (width x height x depth) set the limit for internal fitting
• For multiple fronts, start planning with the widest panel first
• Durability certified for 40,000 opening and closing cycles
• Manual operation force remains under 70 N according to tests
• Detailed drilling templates, cut-to-size info, and parts lists are accessible in the Blum Product Configurator

Assembly Guidance:

• Requires CNC or Blum MINIPRESS top with EASYSTICK to machine wooden components
• Both horizontal drilling and track cut-outs are necessary
• Blum’s recommended drilling template should be used for pocket connector holes
