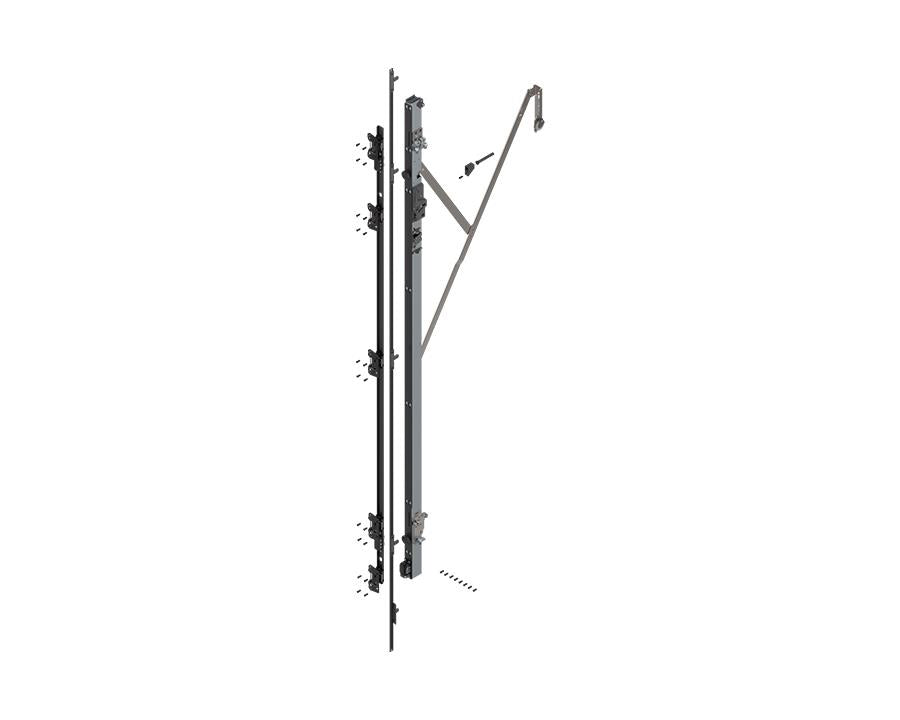

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2407 – 2556mm. Left. 801T5000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge bracket
• Application: Suitable for REVEGO uno systems
• Length: 2356 mm
• Pocket Height Range: 2407 – 2556 mm
• Material: Steel
• Finish: Zinc plated
• Fixing Method: Tool-free installation
• Package Includes: Set

Required Accessories (sold separately):

• Blum countersunk head screw 6 x 14.5 mm (6611450HG) – mandatory for installation
• CBR04DS door straightener – recommended for use with all REVEGO uno & duo pocket systems

Key Notes:

• The internal (W x H x D) cavity defines maximum usable space
• Begin layout with the widest front panel in multi-front applications
• Tested to last 40,000 open/close cycles
• Opening force remains under 70 N as per endurance testing
• For full specs, drilling guides, and part listings, refer to the Blum Product Configurator

Assembly Information:

• Wood components must be machined with a CNC or Blum MINIPRESS top and EASYSTICK
• Horizontal boreholes and a track cut-out are required
• Use the Blum drilling template to ensure accurate pocket connector positioning
