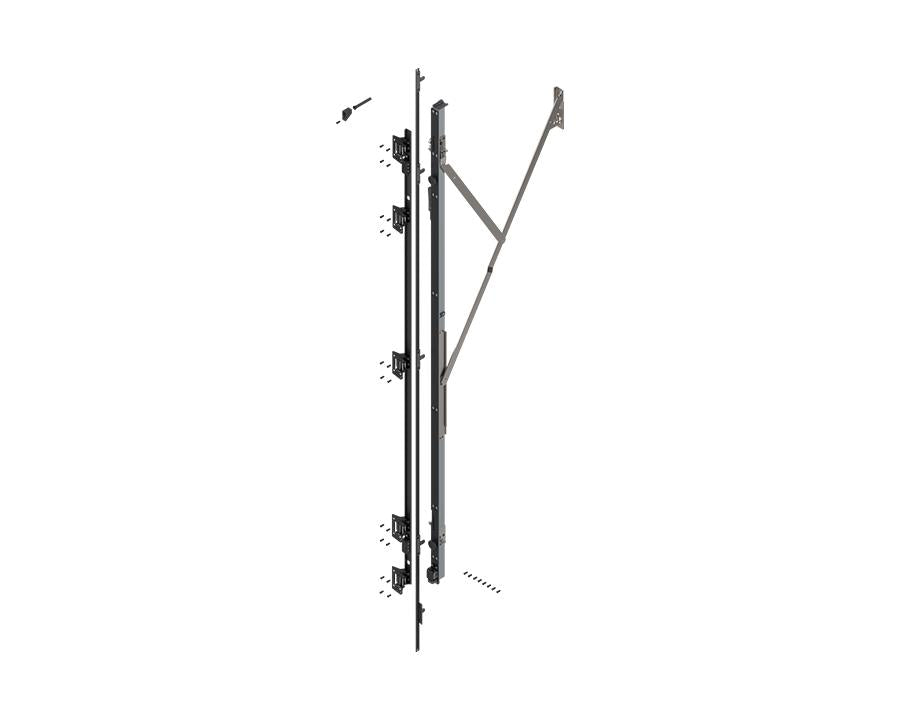

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2407 – 2556mm. Right. 801T5000.R2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Designed for REVEGO uno
• Length: 2356 mm
• Pocket Height Range: 2407 – 2556 mm
• Material: Steel
• Finish: Zinc plated
• Fixing Method: Tool-free attachment
• Item Package: Set

Required Accessories (sold separately):

• Blum Countersunk Head Screw 6 x 14.5 mm (6611450HG) – required for installation
• Door straightener CBR04DS – recommended for all REVEGO uno & duo pocket systems

Important Information:

• Internal cabinet dimensions (width x height x depth) define the available space
• When combining fronts, always start with the widest panel
• Verified for 40,000 opening and closing cycles
• Manual opening force stays under 70 N based on test results
• Full drilling patterns, cut sizes, and parts lists can be accessed via the Blum Product Configurator

Assembly Guidelines:

• Wooden parts should be machined using a CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal bores and a track cut-out are required
• Use Blum’s drilling template for precise pocket connector positioning
