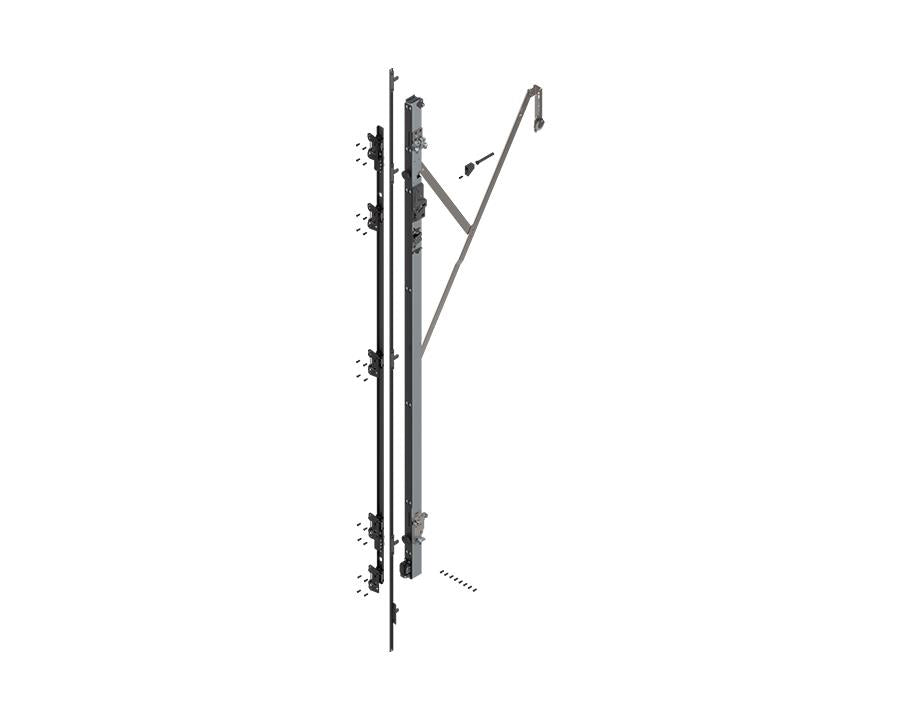

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2557 – 2706mm. Left. 801T6000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Compatible with REVEGO uno
• Length: 2506 mm
• Pocket Height: 2557 – 2706 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Item Package: Set

Required Accessories (sold separately):

• Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) – mandatory for installation
• Door straightener CBR04DS – recommended for all REVEGO uno & duo pocket systems

Key Information:

• Internal dimensions (width x height x depth) determine the maximum internal space available
• Begin with the widest front panel when designing combined front systems
• Tested durability ensures 40,000 opening and closing cycles
• Manual operating force remains under 70 N according to durability testing
• Detailed drilling templates, cut-to-size specs, and parts lists are available through the Blum Product Configurator

Assembly Instructions:

• Use a CNC machine or Blum MINIPRESS top with EASYSTICK to machine wooden components
• Both horizontal drillings and a track cut-out are necessary
• Blum’s drilling template is recommended for precise horizontal drilling of REVEGO pocket connectors
