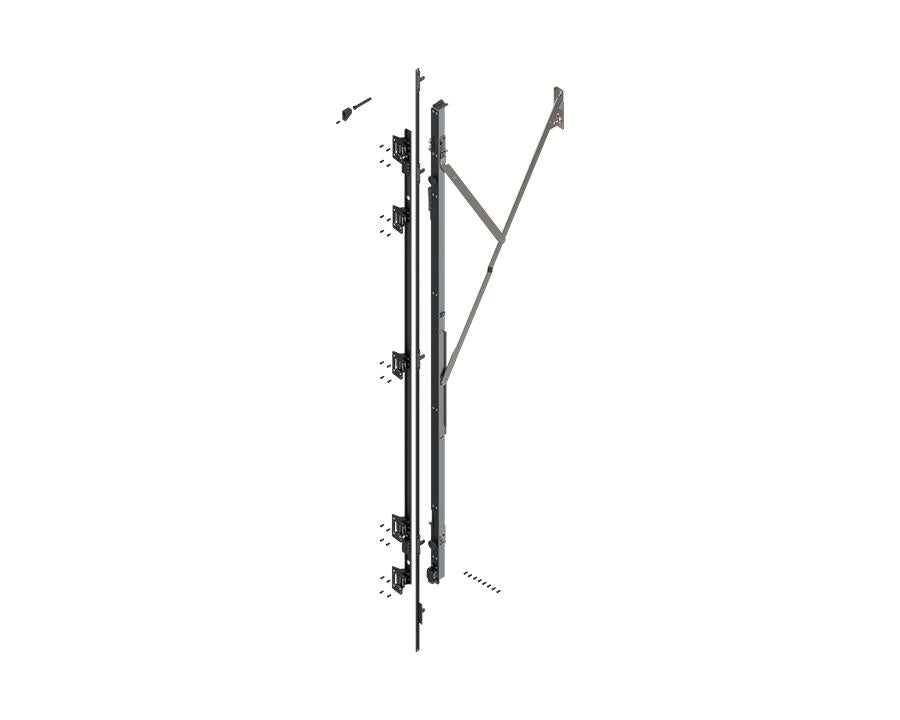

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2557 – 2706mm. Right. 801T6000.R2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Designed for REVEGO uno
• Length: 2506 mm
• Pocket Height: 2557 – 2706 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Item Package: Set

Required Accessories (sold separately):

• Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used
• Door straightener CBR04DS is recommended for use with all REVEGO uno & duo pocket systems

Important Notes:

• Internal application dimensions (width x height x depth) dictate the maximum internal space available for construction
• Always plan the widest front panel first in combined front designs
• Tested and certified durability of 40,000 opening and closing cycles
• Manual operating force is below 70 N based on durability testing
• Drilling patterns, size specifications, and detailed parts lists can be accessed via the Blum Product Configurator

Assembly Information:

• Machining wooden parts requires a CNC machine or Blum MINIPRESS top with EASYSTICK
• Both horizontal drilling and track cut-out are necessary
• Blum recommends using the drilling template for REVEGO pocket connectors to ensure accurate horizontal drillings
