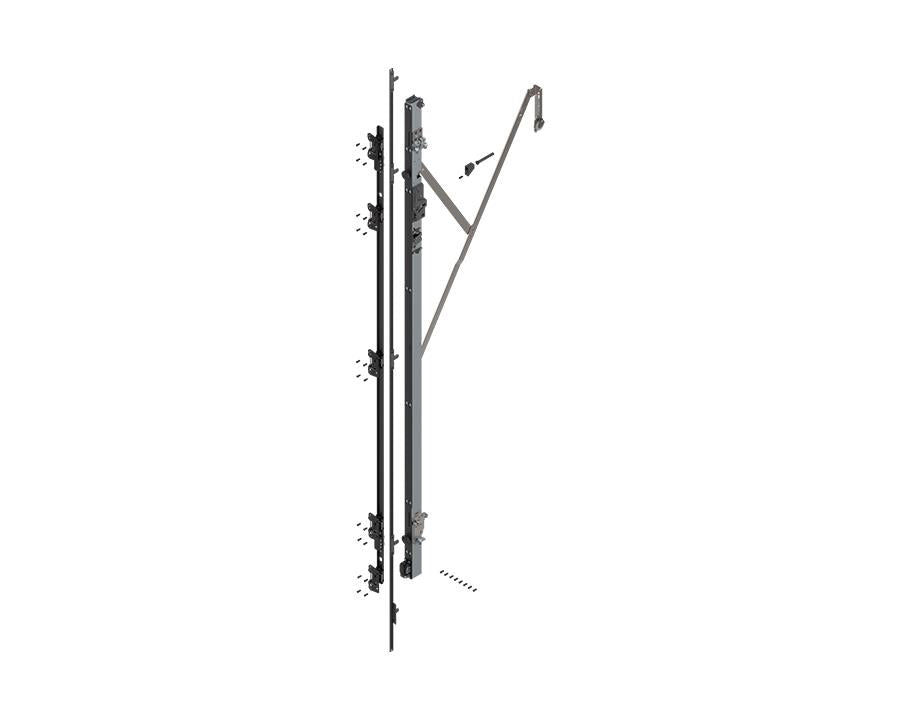

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2707 – 2856mm. Left. 801T7000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Suitable for REVEGO uno
• Length: 2656 mm
• Pocket Height: 2707 – 2856 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Item Package: Set

Required Accessories (sold separately):

• Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) is required
• Door straightener CBR04DS is recommended for all REVEGO uno & duo pocket systems

Important Information:

• Internal application dimensions (width x height x depth) define the maximum internal construction space
• Start with the widest front panel for combined applications
• Tested durability supports 40,000 open/close cycles
• Manual operating force remains under 70 N per durability tests
• Detailed drilling guides, cut-to-size info, and parts lists are available in the Blum Product Configurator

Assembly Details:

• Wooden parts must be machined using a CNC or MINIPRESS top with EASYSTICK from Blum
• Both horizontal drillings and track cut-outs are necessary
• Blum advises using their drilling template for REVEGO pocket connector horizontal drillings
