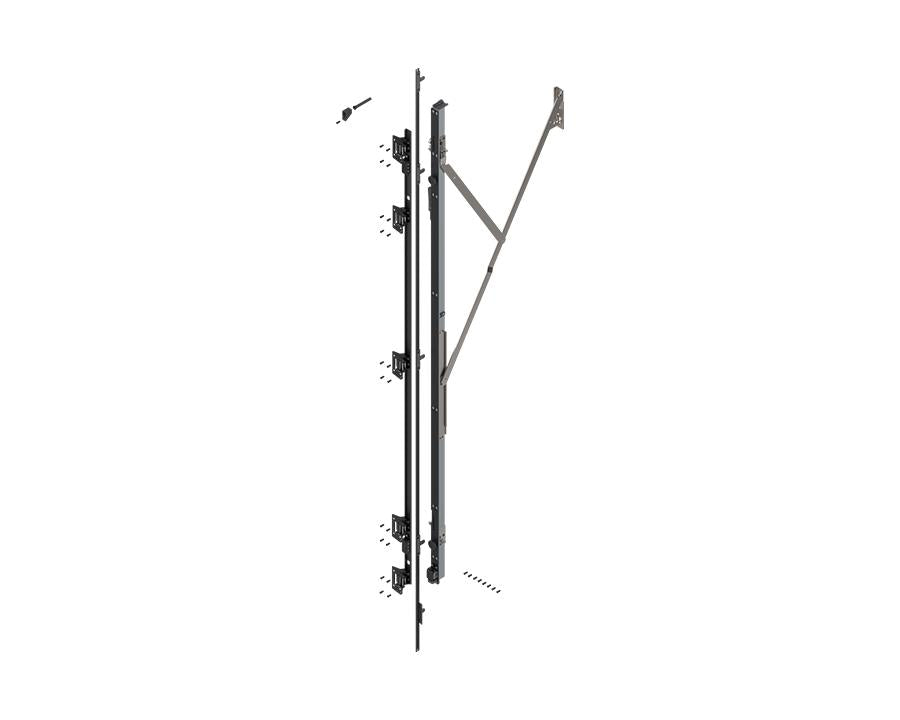

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2707 – 2856mm. Right. 801T7000.R2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Compatible with REVEGO uno
• Length: 2656 mm
• Pocket Height: 2707 – 2856 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Item Package: Set

Required Accessories (sold separately):

• Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Important Notes:

• Internal application dimensions (width x height x depth) set the limit for internal construction space
• Design the widest front panel first in combined applications
• Certified for 40,000 opening and closing cycles
• Manual operating force is under 70 N based on durability tests
• Drilling patterns, cut-to-size specs, and detailed parts lists available in the Blum Product Configurator

Assembly Instructions:

• CNC machine or Blum MINIPRESS top with EASYSTICK required for machining wooden parts
• Horizontal drillings and track cut-outs are necessary
• Blum recommends using their drilling template for REVEGO pocket connector drillings
