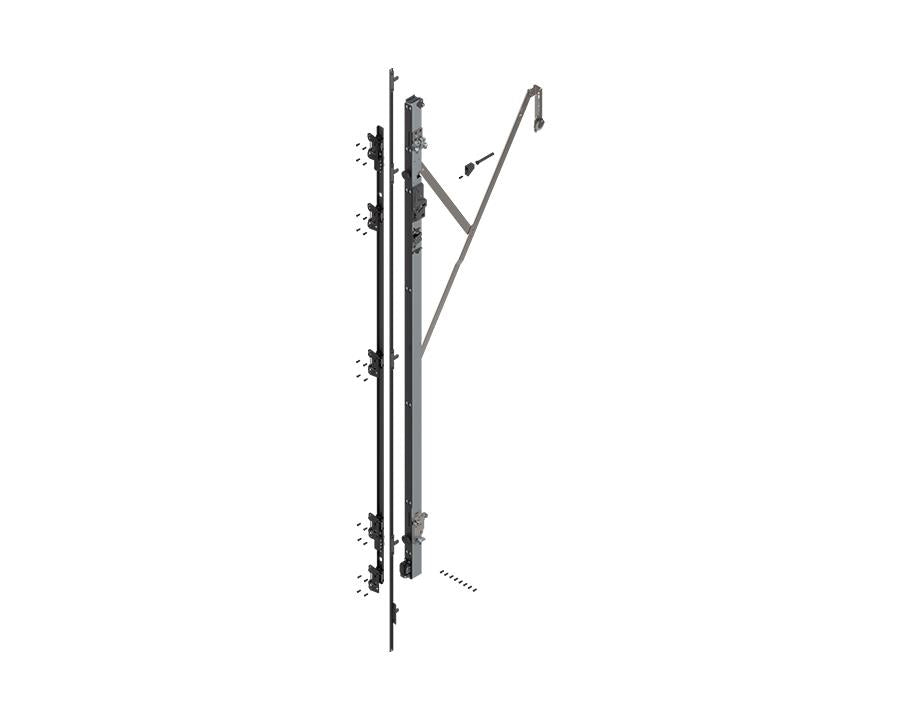

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2857 – 2999mm. Left. 801T8000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge Bracket
• Application: Suitable for REVEGO uno
• Length: 2806 mm
• Pocket Height: 2857 – 2999 mm
• Material: Steel
• Colour / Finish: Zinc plated
• Fixing Method: Tool-free
• Package: Set

Required Accessories (sold separately):

• Blum System Screw, Counter Sunk Head 6 x 14.5mm (6611450HG) must be used
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Important Notes:

• Internal dimensions (width x height x depth) define max space for internal components
• Always design the widest front panel first in combined setups
• Tested durability for 40,000 open/close cycles
• Manual operating force below 70 N per durability testing
• Detailed drilling patterns, cut-to-size specs, and parts lists available via Blum Product Configurator

Assembly Instructions:

• CNC machine or Blum MINIPRESS top with EASYSTICK required to machine wooden parts
• Both horizontal drillings and track cut-outs are necessary
• Blum drilling template recommended for pocket connector drillings
