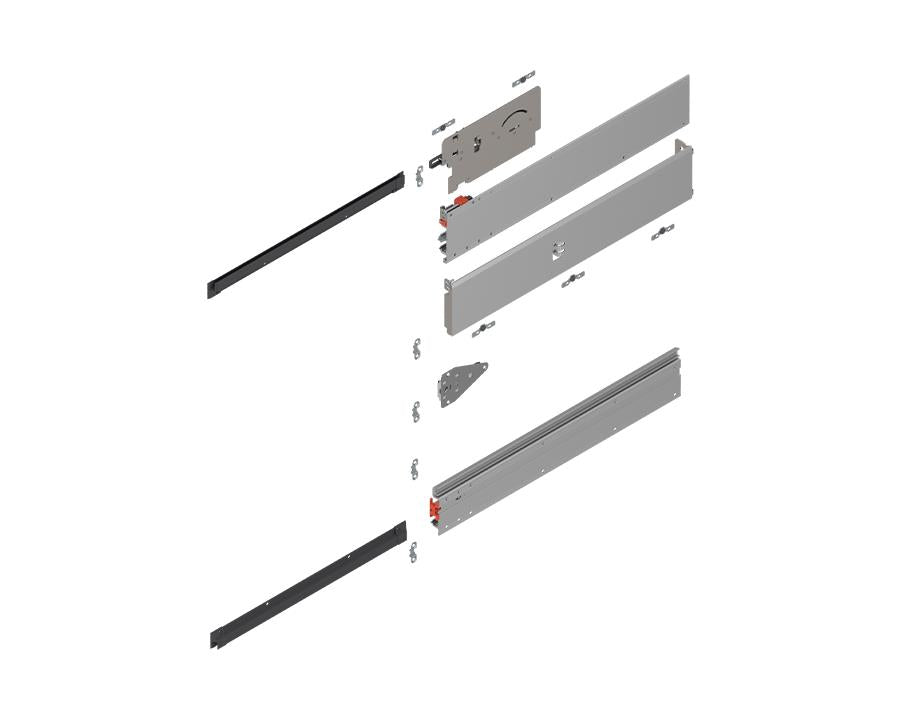

Blum Revego Uno Pocket Profile Set. Nominal Length: 450mm. Left. 801P450E.L2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Compatible with REVEGO uno
• Length: 493 mm (nominal length 450 mm)
• Material: Aluminium with E6/EV1 natural anodized finish
• Mounting: Designed for system screws
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is advised for all REVEGO uno & duo pocket systems

Important Information:

• Internal cavity size (width x height x depth) sets the limit for internal components
• Start with the widest front panel when combining fronts
• Tested durability for 40,000 open/close cycles
• Manual opening force below 70 N, per durability tests
• Detailed drilling patterns, cut-to-size specs, and parts lists available via the Blum Product Configurator

Installation Notes:

• Machining of wooden parts requires a CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal drilling and track cut-outs are necessary
• Blum recommends using their drilling template for pocket connector drilling
