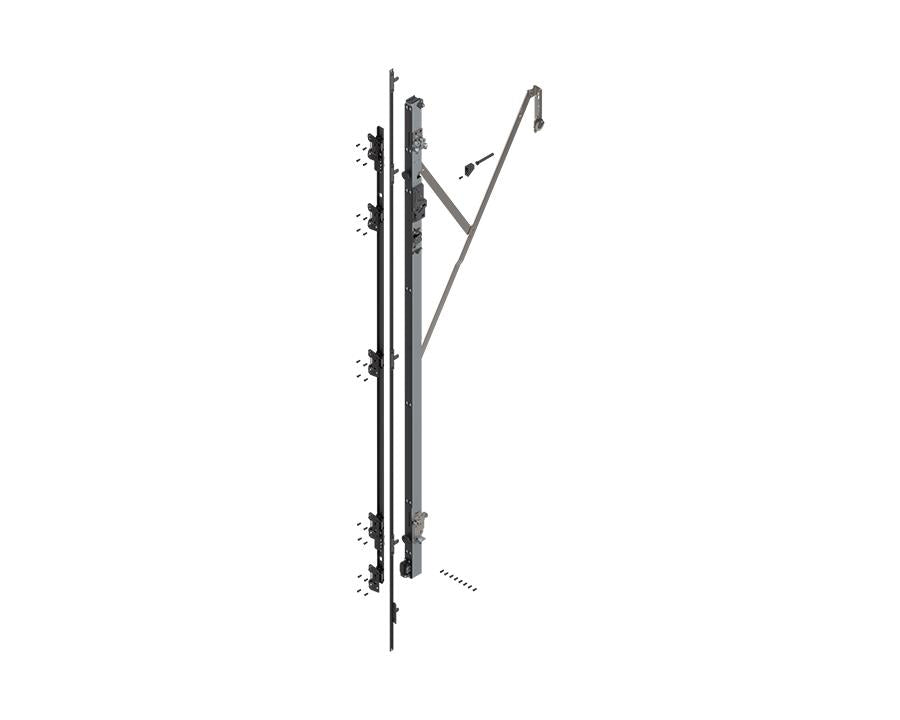

Blum REVEGO uno Hinge Bracket Set with TIP-ON for pocket height 2107 – 2256mm. Left. 801T3000.L2 by W&B

Hinge Bracket by Wilson and Bradley – for REVEGO uno

• Type: Hinge bracket
• Application: Compatible with REVEGO uno
• Length: 2507 mm
• Pocket height: Adjustable between 2107 and 2256 mm
• Material: Zinc-plated steel
• Fixing method: Tool-free
• Package: Set

Required accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) is mandatory
• Door straightener CBR04DS recommended for REVEGO uno & duo systems

Notes:

• Internal dimensions (width x height x depth) define max space for internal fitting
• Design widest front first for combined setups
• Endurance certified for 40,000 open/close cycles
• Manual operating force below 70 N per durability tests
• Detailed drilling guides, cut-to-size specs, and parts lists are available in Blum Product Configurator

Assembly instructions:

• Use CNC or Blum MINIPRESS with EASYSTICK for machining wood parts
• Horizontal drillings and track cut-out are required
• Blum’s drilling template recommended for precise pocket connector installation
