SKU:IWBRUPPSNL500L2

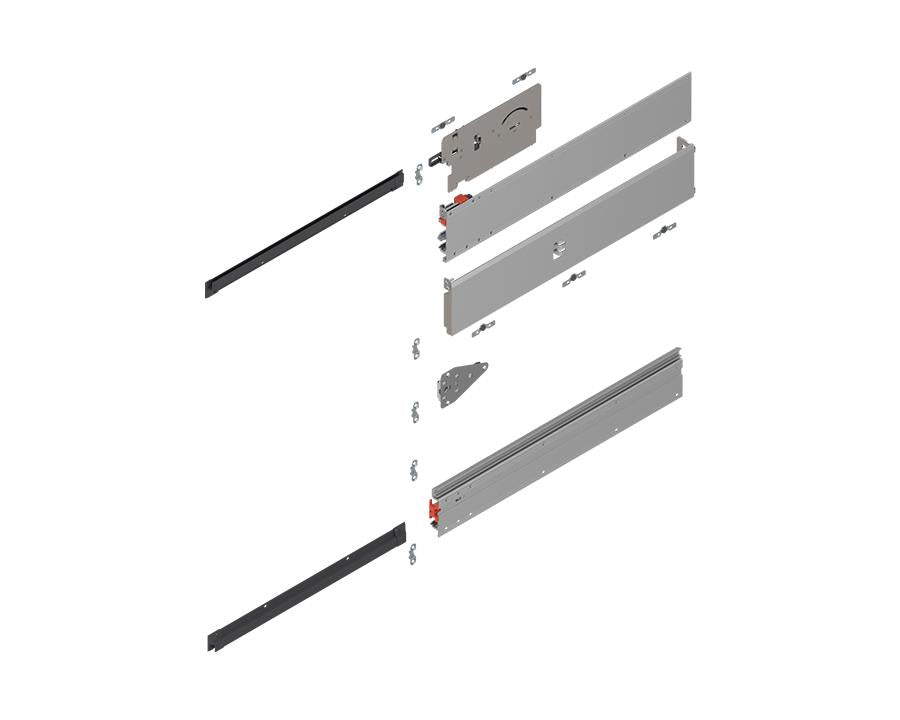

Blum Revego Uno Pocket Profile Set. Nominal Length: 500mm. Left. 801P500E.L2 by W&B

Blum Revego Uno Pocket Profile Set. Nominal Length: 500mm. Left. 801P500E.L2 by W&B

Regular price $979.64 AUD
Regular price Sale price $979.64 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Pocket Profile by Wilson and Bradley – For REVEGO uno

  • Type: Pocket profile
  • Application: Suitable for REVEGO uno systems
  • Length: 543 mm (nominal length 500 mm)
  • Material: Aluminium with natural E6/EV1 anodised finish
  • Mounting: Designed for system screws
  • Package: Supplied as a set

Required Accessories (sold separately):

  • Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
  • Door straightener CBR04DS is recommended with all REVEGO uno & duo systems

Key Details:

  • Internal dimensions (width x height x depth) set the maximum space for internal fittings
  • Start with the widest front panel in combined designs
  • Tested durability of 40,000 open/close cycles
  • Manual opening force under 70 N according to testing
  • Detailed drilling layouts, cut-to-size info, and parts lists available through the Blum Product Configurator

Assembly Instructions:

  • Use CNC or Blum MINIPRESS top with EASYSTICK to machine wooden components
  • Both horizontal drillings and track cut-outs are required
  • Blum recommends their drilling template for REVEGO pocket connector horizontal drillings
