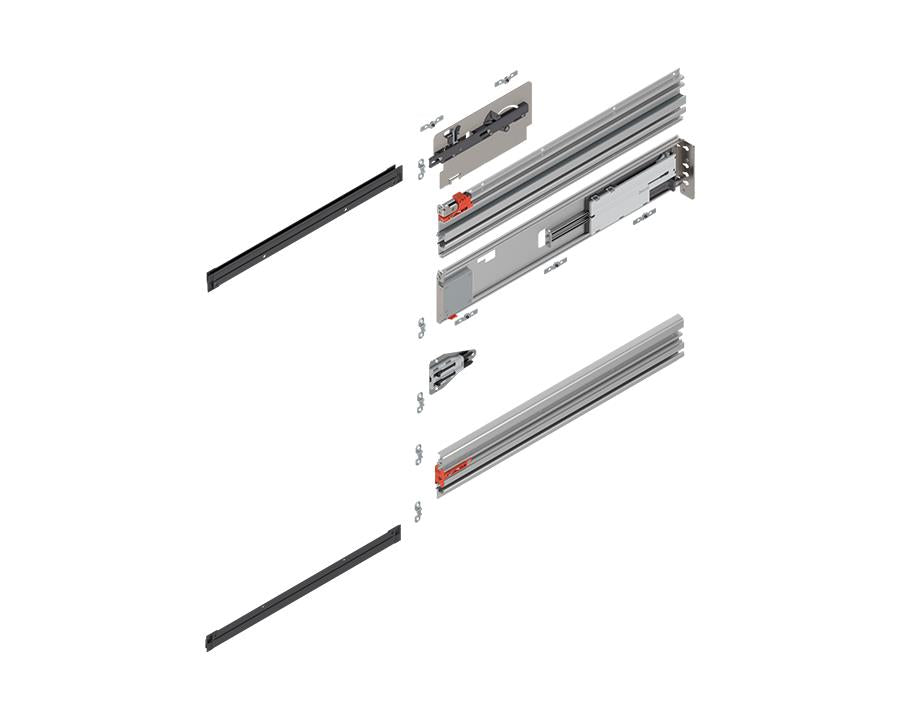

Blum REVEGO Uno Pocket Profile Set. Nominal Length: 500mm. Right. 801P500E.R2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Compatible with REVEGO uno
• Length: 543 mm (nominal length 500 mm)
• Material: Aluminium with natural E6/EV1 anodised finish
• Fixing method: For system screws
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS recommended for REVEGO uno & duo systems

Important Notes:

• Internal dimensions (width x height x depth) define max space for internal construction
• Begin with the widest front in combined setups
• Certified for 40,000 opening and closing cycles
• Manual opening force is under 70 N per durability testing
• Drilling patterns, cut-to-size details, and parts lists available via Blum Product Configurator

Assembly Information:

• Machining requires CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal drillings and track cut-outs are necessary
• Blum recommends using their drilling template for REVEGO pocket connector drilling
