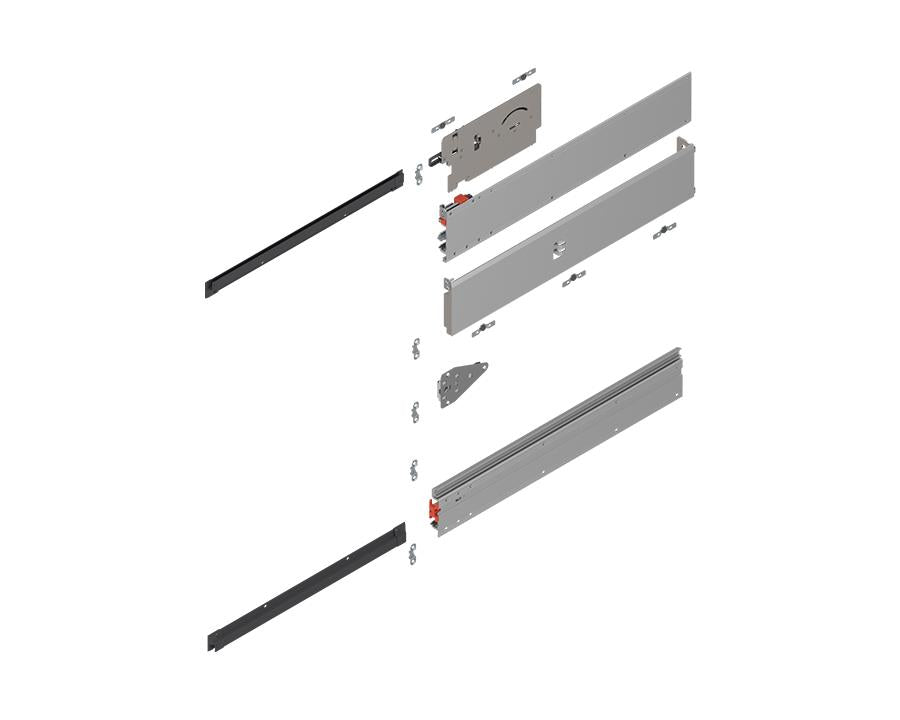

Blum REVEGO uno Pocket Profile Set. Nominal Length: 600mm. Left. 801P600E.L2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Designed for REVEGO uno
• Length: 643 mm (nominal length 600 mm)
• Material: Aluminium with natural E6/EV1 anodised finish
• Fixing method: For system screws
• Package: Supplied as a complete set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS recommended for all REVEGO uno & duo pocket systems

Key Details:

• Internal dimensions (width x height x depth) determine max space for internal build
• Start with the widest front panel for combined designs
• Certified for 40,000 open/close cycles
• Manual operating force below 70 N based on durability tests
• Drilling patterns, cut-to-size info, and parts lists available in the Blum Product Configurator

Assembly Instructions:

• Wooden parts need machining with CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal drilling and track cut-outs are required
• Blum recommends using the drilling template for precise REVEGO pocket connector drilling
