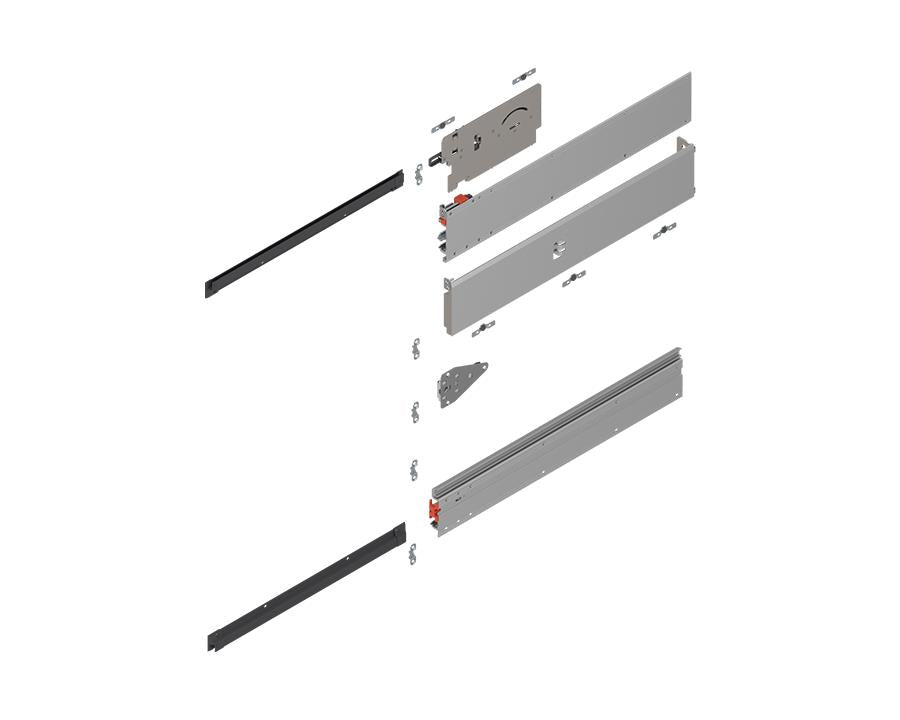

Blum REVEGO Uno Pocket Profile Set. Nominal Length: 700mm. Left. 801P700E.L2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Designed for REVEGO uno systems
• Length: 743 mm (nominal length 700 mm)
• Material: Aluminium with natural anodised finish (E6/EV1)
• Fixing method: For use with system screws
• Package: Supplied as a complete set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended with all REVEGO uno & duo systems

Product Highlights:

• Internal space (width x height x depth) defines max installation area
• Start layout with the widest front in multi-front applications
• Tested for 40,000 open/close cycles
• Manual force required is under 70 N, per testing
• Cutting dimensions, drilling guides, and parts lists can be accessed via the Blum Product Configurator

Assembly Information:

• Machining must be done using CNC or Blum MINIPRESS top with EASYSTICK
• Requires horizontal drillings and a track cut-out
• Use Blum’s drilling template for accurate connector positioning
