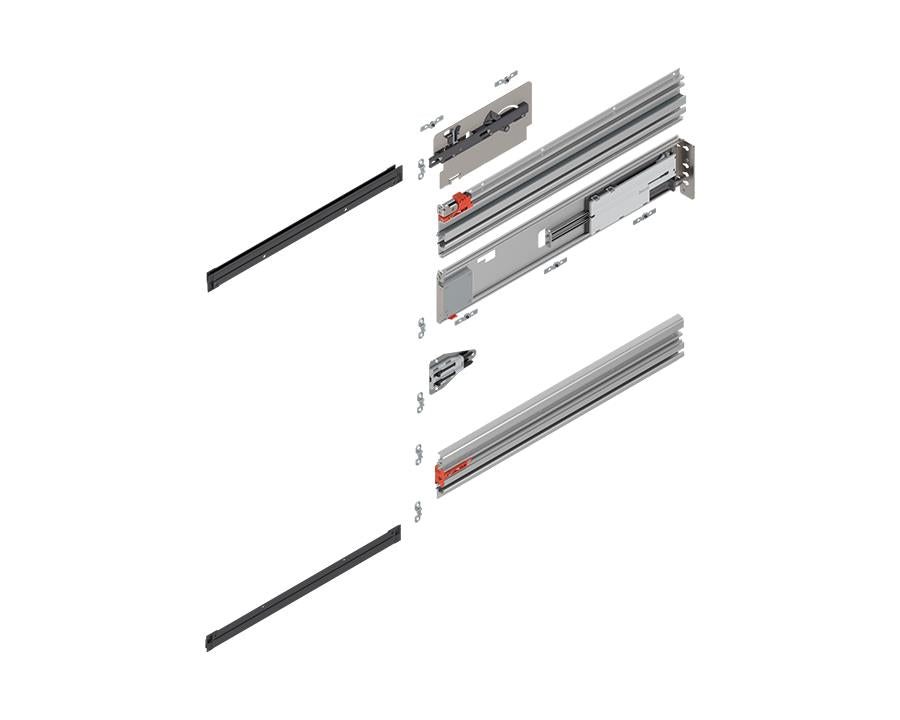

Blum REVEGO Uno Pocket Profile Set. Nominal Length: 700mm. Right. 801P700E.R2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Suitable for REVEGO uno systems
• Length: 743 mm (nominal length 700 mm)
• Material: Aluminium with E6/EV1 natural anodised finish
• Fixing method: Compatible with system screws
• Package: Supplied as a set

Required Accessories (sold separately):

• Must be used with Blum countersunk screw 6 x 14.5 mm (6611450HG)
• Door straightener CBR04DS is recommended for use with all REVEGO uno & duo setups

Important Details:

• Internal space (width x height x depth) defines maximum installation allowance
• Always begin design with the widest front in multi-panel layouts
• Tested and certified for 40,000 open/close cycles
• Manual operating force is under 70 N, based on durability testing
• Full cutting details, drilling templates, and part specs are available via the Blum Product Configurator

Assembly Requirements:

• Requires machining with CNC or Blum MINIPRESS top and EASYSTICK
• Includes both horizontal drillings and a track cut-out
• Blum recommends their drilling template for accurate connector placement
