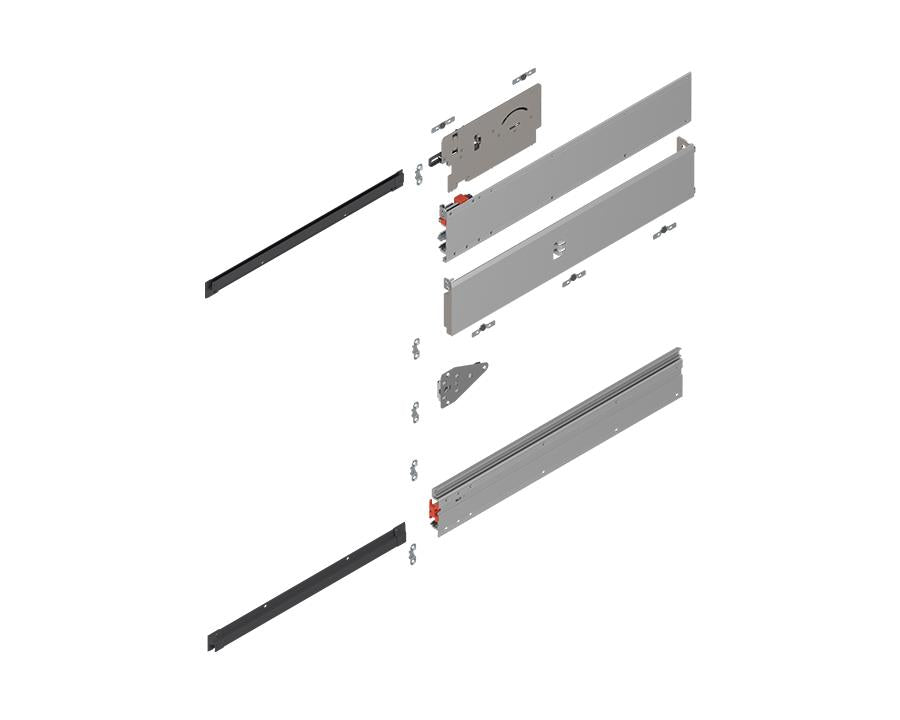

Blum REVEGO uno Pocket Profile Set. Nominal Length: 800mm. Left. 801P800E.L2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Designed for REVEGO uno systems
• Length: 843 mm (nominal length 800 mm)
• Material: Aluminium with natural E6/EV1 anodised finish
• Fixing method: For use with system screws
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended with all REVEGO uno & duo pocket systems

Product Information:

• Internal measurements (W x H x D) determine the total construction space required
• When using multiple fronts, begin with the widest
• Certified for 40,000 opening and closing cycles
• Manual operating force is under 70 N as per durability testing
• Drilling diagrams, sizing, and part details are available via the Blum Product Configurator

Assembly Notes:

• CNC machining or Blum MINIPRESS top with EASYSTICK is needed for wooden parts
• Includes horizontal drillings and a track cut-out
• For accurate placement, use the Blum drilling template for REVEGO pocket connectors
