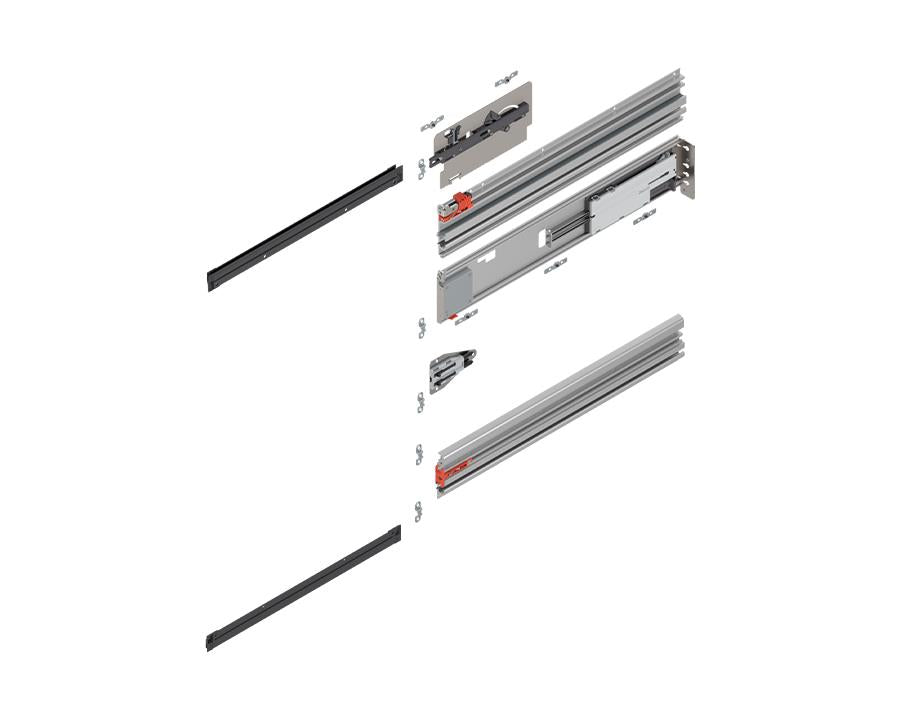

Blum REVEGO uno Pocket Profile Set. Nominal Length: 800mm. Right. 801P800E.R2 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Suitable for REVEGO uno
• Length: 843 mm (nominal length 800 mm)
• Material: Aluminium with E6/EV1 natural anodised finish
• Fixing method: Designed for system screws
• Package: Set supplied

Required Accessories (sold separately):

• Must use Blum countersunk screw 6 x 14.5 mm (6611450HG)
• Door straightener CBR04DS recommended for all REVEGO uno & duo setups

Key Information:

• Internal space (W x H x D) determines maximum construction area
• Begin layout with the widest front in multi-panel configurations
• Certified for 40,000 open/close cycles
• Manual operating force is below 70 N (as tested)
• Drilling guides, cutting dimensions, and full parts lists available via the Blum Product Configurator

Assembly Instructions:

• Machining requires CNC equipment or Blum MINIPRESS top with EASYSTICK
• Track cut-outs and horizontal drillings are necessary
• Use Blum’s recommended drilling template for precise pocket connector positioning
