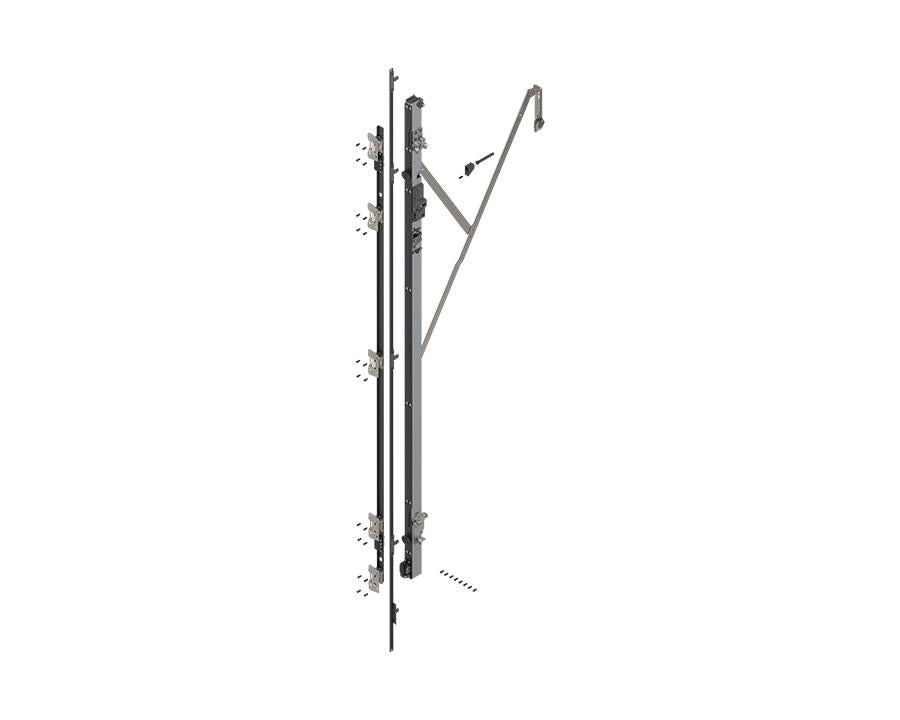

Blum Revego Uno Hinge Bracket Set with TIP-ON for Pocket Height 1807 – 1956mm. Left. 801T1000.L2 by W&B

Hinge Bracket by Wilson and Bradley – For REVEGO uno

• Type: Hinge bracket
• Application: Designed for REVEGO uno system
• Length: 1757 mm
• Pocket height: Adjustable from 1807 to 1956 mm
• Material: Steel with zinc plating
• Fixing method: Tool-free installation
• Package: Supplied as a set

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended for use with all REVEGO uno & duo pocket systems

Important Notes:

• Internal dimensions (width x height x depth) define maximum space for internal construction
• Begin design with the widest front in combined applications
• Certified durability for 40,000 opening and closing cycles
• Manual operating force less than 70 N according to testing
• Drilling patterns, cut-to-size dimensions, and detailed parts lists available via Blum Product Configurator

Assembly Instructions:

• Wood parts require machining with CNC or Blum MINIPRESS top using EASYSTICK
• Both horizontal drilling and track cut-outs are needed
• Blum recommends using their drilling template for REVEGO pocket connectors to ensure precise drilling
