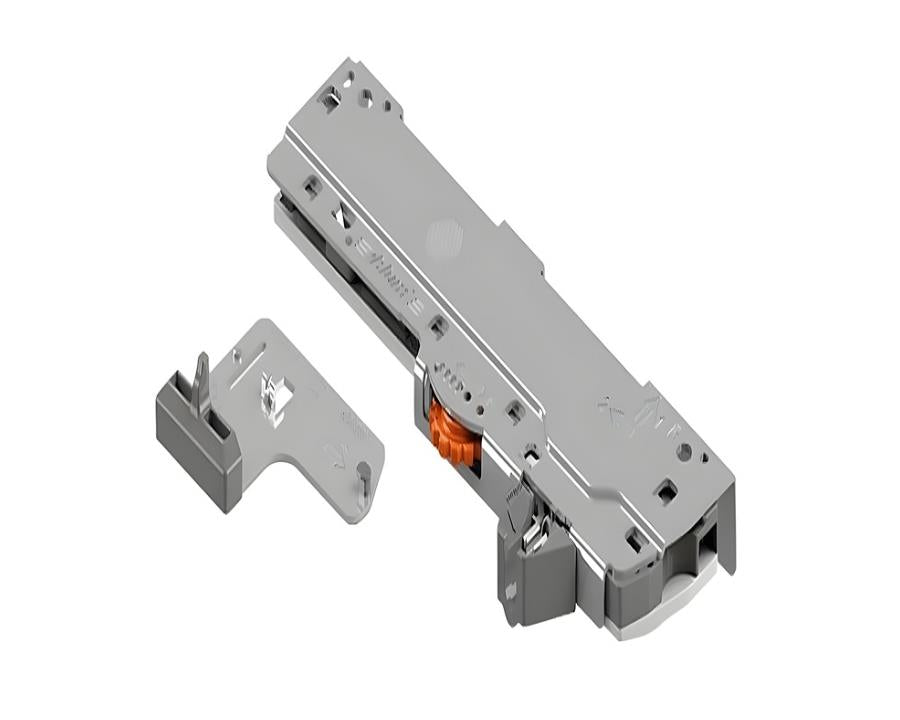

Blum TIP-ON BLUMOTION set (unit and latch) for LEGRABOX and MOVENTO. For 350 – 600mm NL runners. Type L1. Total weight of pull out 0 - 20kg T60L7340

TIP-ON BLUMOTION combines the advantages of the TIP-ON mechanical opening system with tried and tested soft-close BLUMOTION. Touch to open. Close with an energetic push (the TIP-ON function is activated and BLUMOTION cuts in for soft and effortless closing). What's more, it works on a purely mechanical basis.

TIP-ON BLUMOTION for MOVENTO combines the advantages of the TIP-ON mechanical opening support system with the reliable BLUMOTION dampening for silent and effort less closing – 100 % mechanically.

TIP-ON BLUMOTION ‘s extensive trigger range provides inspirational ease of use for handle-less pull-outs and drawers. To optimise the function and increase the trigger range, we generally recommend using synchronisation.

Features
● TIP-ON BLUMOTION can be adjusted to have a small front gap of 2.5 mm
● Four-dimensional adjustment ensures a precise gap layout
● Depth adjustment is integrated and tool-free, simply turn the adjustment wheel
● The TIP-ON BLUMOTION unit can be assembled tool-free, as can all the other components

Specifications
● Type: TIP-ON BLUMOTION unit
● Product group: LEGRABOX
● Product group: MOVENTO
● Dynamic load bearing: 40kg
● Nominal length of: 270mm
● Nominal length up to: 349mm
● Description: Type S1
● Total weight of the pull-out: 10-20kg
● Trigger path:1
● Triggering force: 16.4kg
● Clamping distance: 25mm
● BLUMOTION and BLUMATIC closing distance: 15.5mm
● Self-closing distance: 12mm
● Material: Nylon/steel
● Colour/finish: RAL 7035 light grey
● Version: Optional part
● Fixing method: To slip-on
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +/- 3mm
● Additions: Latch + 2 adapters, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
