SKU:IW-BTOBS-600MM-35-70KG

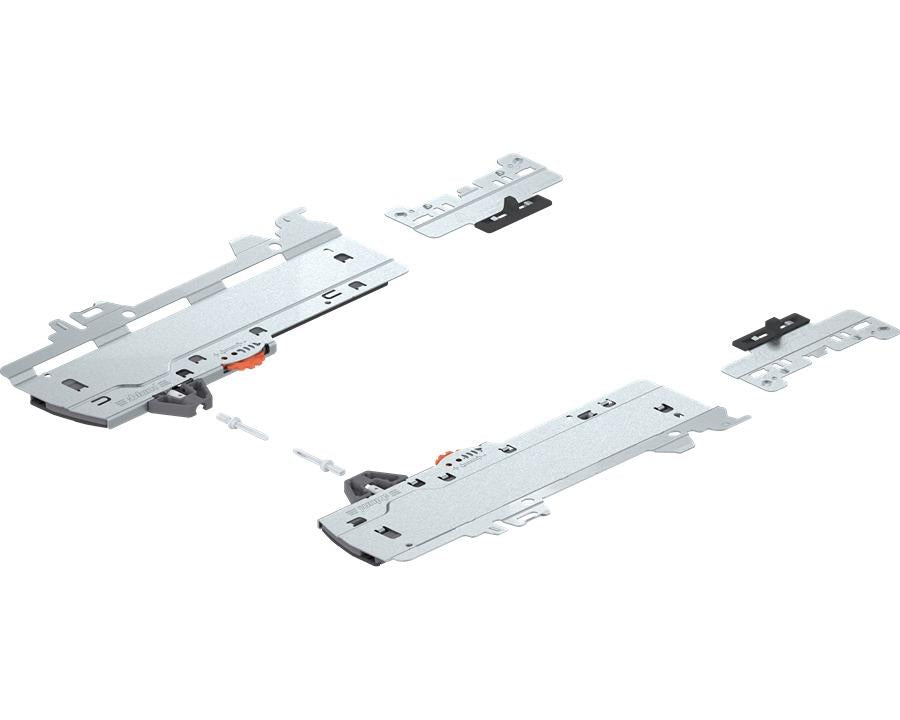

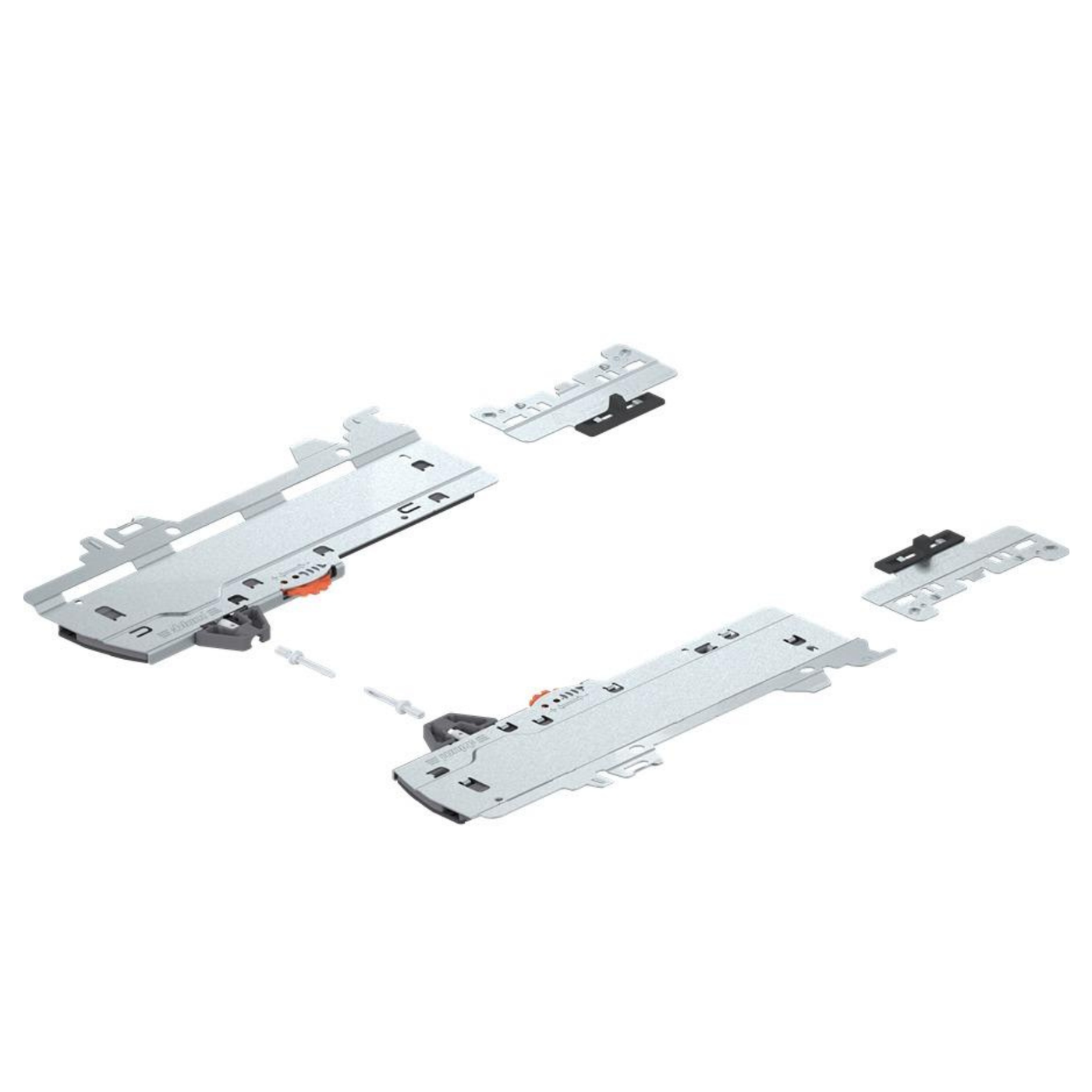

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 350 – 600mm NL runners. Type L5. Total weight of pull out 35 - 70kg. T60H4570

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 350 – 600mm NL runners. Type L5. Total weight of pull out 35 - 70kg. T60H4570

Regular price $46.17 AUD
Regular price Sale price $46.17 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.

MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.

The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.

Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.

Features:
● The TIP-ON mechanical opening support system combined with soft-close BLUMOTION
● Gap 2.5 mm
● Four-dimensional front adjustment
● Extensive trigger range
● Synchronisation for internal cabinet widths LW of 243 mm and wider

Specifications:
● Type: TIP-ON BLUMOTION unit
● Product group: MERIVOBOX
● Dynamic load bearing: 70kg
● Nominal length: 450mm
● Nominal length up to: 650mm
● Description: Type L5
● Total weight of the pull-out: 35-70kg
● Trigger path: 1
● Triggering force: 24kg
● Clamping distance: 39mm
● BLUMOTION and BLUMATIC closing distance: 43mm
● Self-closing distance: 12mm
● Material: Nylon/steel
● Colour/finish: Black
● Version: Optional part
● Fixing method: To slip-on
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +/- 3mm
● Additions: Latch + 2 adaptors, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
