SKU:IW-BTBS- 350-600MM-40KG

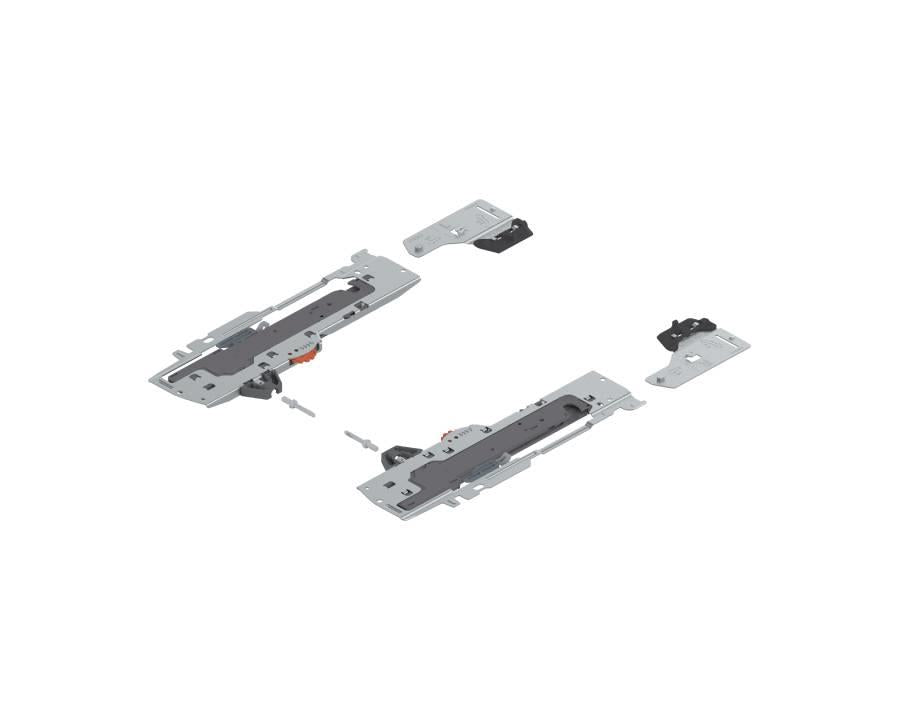

Blum TIP-ON BLUMOTION set (unit and latch) for TANDEMBOX. For 350 - 600mm NL runners. Type L3. Total weight of the pull-out 15 - 40kg T60B3530
Blum TIP-ON BLUMOTION set (unit and latch) for TANDEMBOX. For 350 - 600mm NL runners. Type L3. Total weight of the pull-out 15 - 40kg T60B3530
TIP-ON BLUMOTION for TANDEMBOX opens the door on a multitude of design possibilities. Combining the advantages of the TIP-ON mechanical opening support system with the reliable BLUMOTION dampening for silent and effortless closing, TIP-ON BLUMOTION is assisted 100 % mechanically.
TIP-ON BLUMOTION ‘s extensive trigger range provides inspirational ease of use for handle-less pull-outs and drawers. An optional synchronisation can be used to extend the trigger range even further.
Backed by a lifetime warranty and replacement guarantee on all products, Blum TANDEMBOX systems are rigorously tested for quality and safety.
Features:
● Dynamic load bearing of 30kg
● Slip-on fixing method
● Made from steel and nylon
● Applicable for antaro pull-out system
● Lifetime guarantee on all Blum products
Specifications:
● Type: TIP-ON BLUMOTION unit
● Product group: TANDEMBOX
● Pull-out system programme line: Antaro
● Dynamic load bearing: 30kg
● Nominal length: 350mm
● Nomial length up to: 600mm
● Description: Type L3
● Total weight of the pull-out: 15-40kg
● Trigger path: 1
● Triggering force: 22kg
● Clamping distance: 41.5mm
● BLUMOTION and BLUMATIC closing distance: 27mm
● Self-closing distance: 12mm
● Material: Nylon/steel
● Colour/finish: RAL 7035 light grey
● Version: Optional part
● Fixing method: To slip-on
● Type of depth adjustment: Convenient with spiral crew
● Depth adjustment: +/- 3mm
● Additions: Lath + 2 adapters, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
