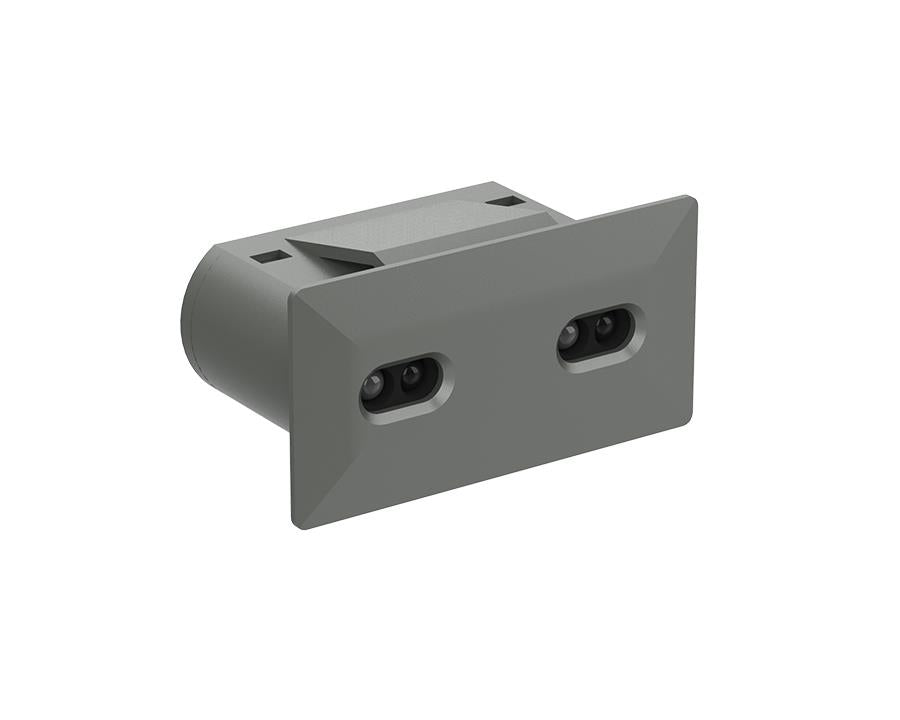

L&S MEC Double IR Sensor for Wired Sensor Distribution Module – by Wilson and Bradley
The next advancement in lighting from L&S, exclusive to Imperial Glass and Timber, is the innovative MEC driver system.
This driver delivers unmatched flexibility and user-friendliness, simplifying installation, control, and space transformation. Featuring a multi-voltage power supply offered in five wattage options, it supports both 12V and 24V applications, making lighting connections more versatile.

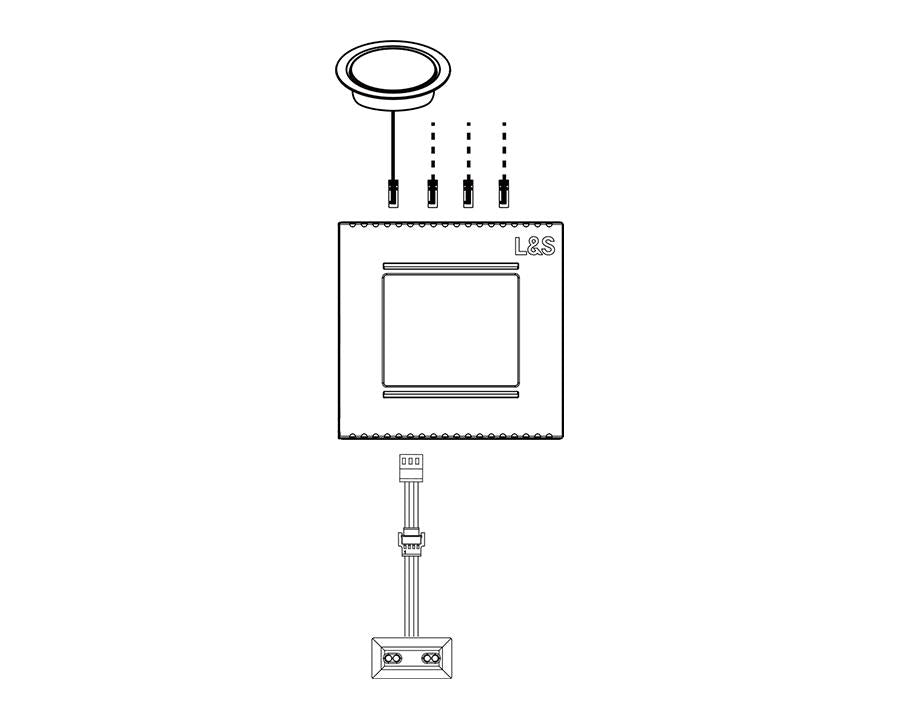

The MEC Double IR Sensor is designed for use with the Wired Sensor Distribution Module, enabling light control through L&S IR and PIR sensors. Alternatively, L&S Touch Switches can manage on/off and brightness settings. The system supports multiple wired sensor modules running off one driver.
Features:
IR sensor designed for Wired Sensor Distribution Module
Supports multiple switches and sensors on one driver
Controls on/off functions through door open/close detection
Customizable to stay off or maintain 10% brightness when doors are closed, ideal for ambient lighting behind glass

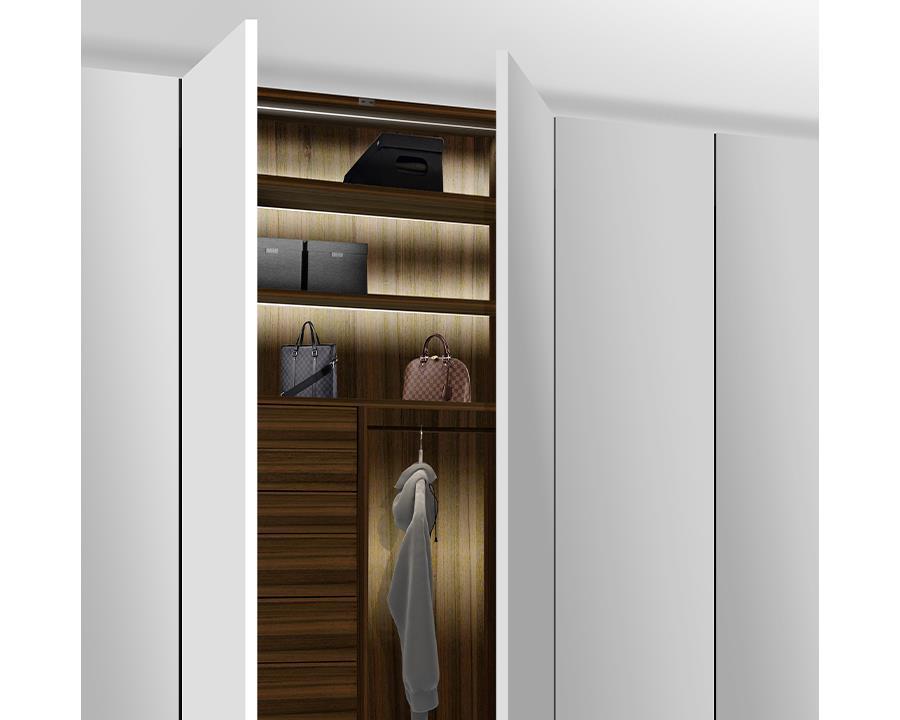

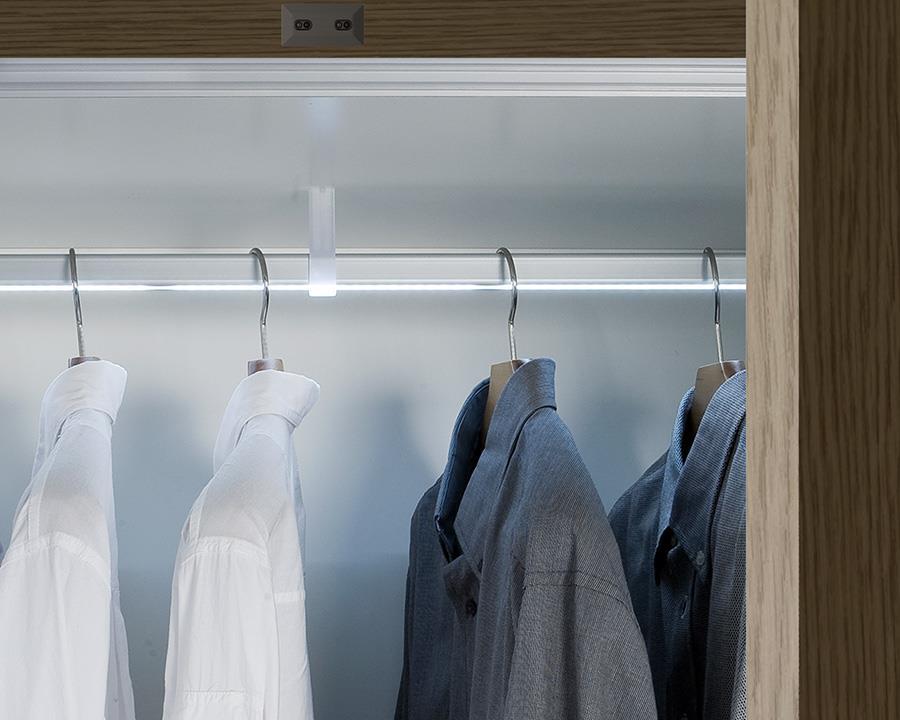

Perfect for wardrobes, kitchen cabinets, pantries, and more
Multiple IR sensors connectable to one module
Compatible with PIR sensors or Touch Switches depending on the setup
Extension cords available to increase distance from the distribution module
Specifications:
Cable length: 1200mm
Optional extension cable (LSEXTSEN): 3000mm
Voltage: 12V and 24V
Required hole size: 27mm x 12mm (refer to full installation guide for details)
