Blum Hinge Systems: Precision and Innovation for Thin Doors by Wilson & Bradley
Blum’s hinge systems are engineered with a focus on durability, versatility, and ease of use. Our hinge range is designed to offer reliable function, enhanced adjustability, and a sleek, attractive design. Featuring 3-dimensional adjustment, our hinges provide unparalleled flexibility in installation, making them the perfect choice for a wide variety of applications—whether it’s wood, glass, aluminum frame doors, or both thin and thick doors.
Our CLIP top BLUMOTION technology adapts to the dynamics of every door, providing a smooth, soft-close action regardless of the door's size, weight, or the force with which it's closed. Available in opening angles of 95°, 107°, 110°, and 155°, BLUMOTION can be deactivated on one or both hinges for the perfect closing speed. The CLIP system allows doors to be easily snapped on and off, while 3-dimensional and cam adjustments ensure precise fitting.
For thinner fronts, Blum offers the EXPANDO T fixing system, ideal for materials with thicknesses between 8mm and 14mm. A steel pull-in anchor ensures a secure fit for harder materials, while plastic jaws provide a secure fit for softer materials. EXPANDO T boasts a fixed drilling diameter of 10mm and a shallow drilling depth of just 6mm, making it suitable for a range of materials and allowing for creative design flexibility.
With Blum’s time-tested CLIP mechanism, assembly is quick, tool-free, and hassle-free, ensuring doors open and close with reliable ease.
Key Features:
- Tested to withstand over 200,000 opening and closing cycles
- Suitable for all types of doors, including thin, thick, and varied materials
- CLIP top BLUMOTION ensures a smooth, controlled closing action
- EXPANDO T system for thin doors (8mm - 14mm thickness)
- Easy 3-dimensional and cam adjustments
- Tool-free, quick assembly with CLIP mechanism
Technical Specifications:

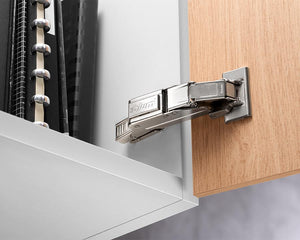

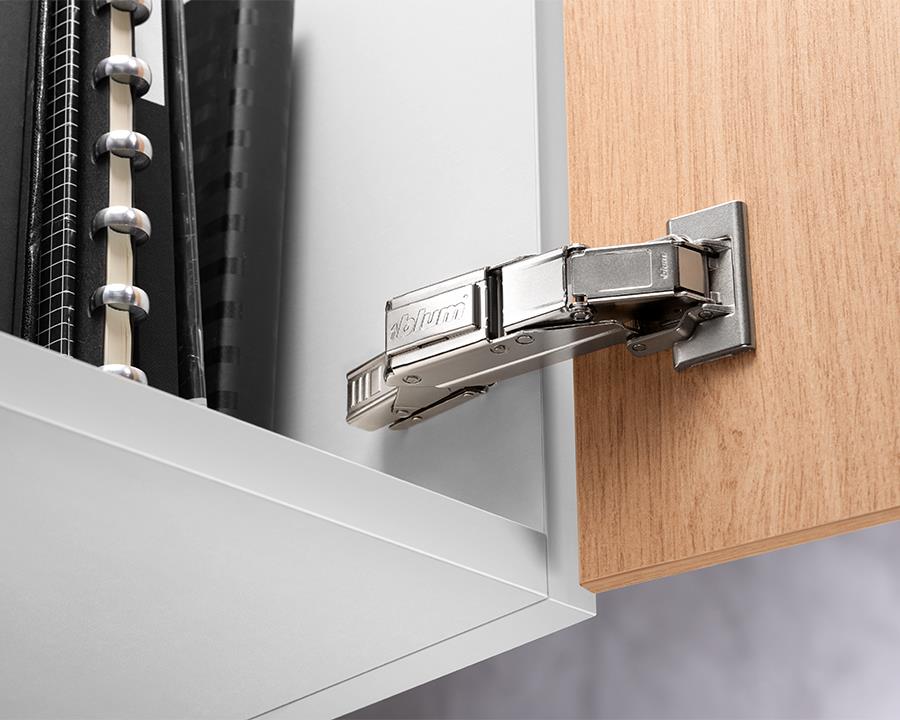

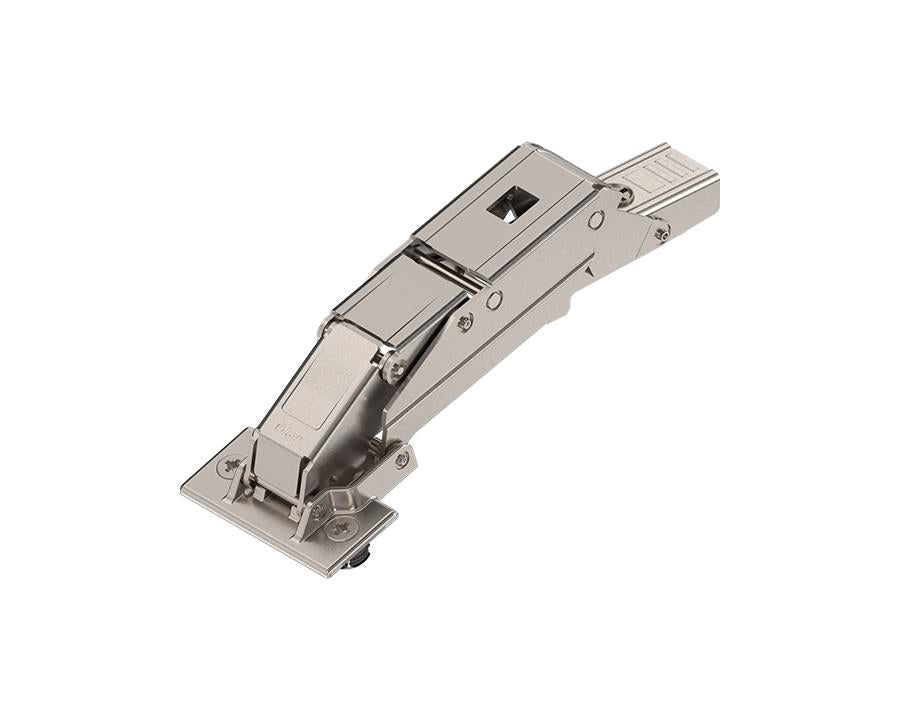

- Application: Hinge for thin doors
- Opening angle: 110°
- Closing mechanism: Unsprung
- Cover cap types: 70.4503, 70T7504 (boss cover cap)
- Boss material: Zinc
- Boss finish: Nickel plated
- Boss assembly: EXPANDO T
-
Flange dimensions:
- Width: 44mm
- Length: 22mm
- Height: 2.2mm
- Fixing hole diameter: 10mm
- Distance between drillings: 32mm
- Minimum drilling distance: 23.5mm
- Maximum drilling distance: 46mm
- Arm material: Steel
- Arm finish: Nickel plated
- Collision measurement (hinge arm height): 56.5mm
- Fixed dimension/factory setting: -3.5mm
- Side adjustment: +/- 2mm (with screw)
- Depth adjustment: Convenient with spiral screw (+3/-2mm)
- Gap: 1.5mm
- Item package: 1 piece
- Packaging: Industrial packing
Note: All plates are sold separately
