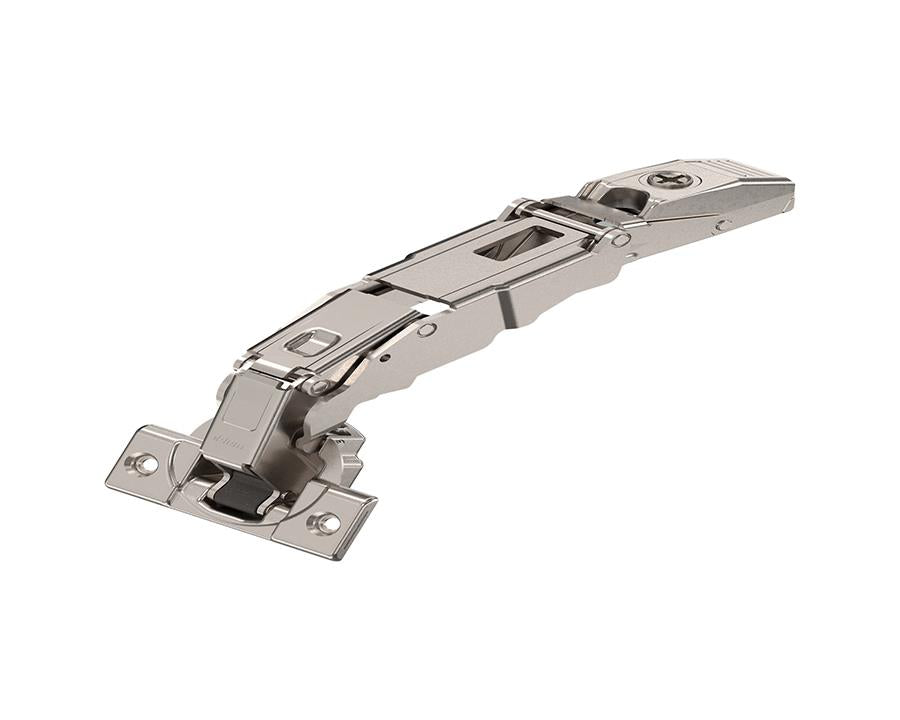

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: Screw-on. Unsprung for TIP-ON. 70T7550TL ** Not compatible with BLUMOTION attachment ** by W&B
Wilson and Bradley hinge systems combine durability, precision, and sleek design to bring you a product that excels in function and ease of use. Designed with a focus on long-lasting performance, our hinges provide smooth and reliable operation, ensuring your doors open and close effortlessly. Constructed to withstand over 200,000 cycles, they’re perfect for a variety of applications, including wood, glass, and aluminum frame doors. Our systems also cater to special needs like angled or blind corner installations.
With TIP-ON motion technology, handle-less fronts are now possible, while the CLIP mechanism guarantees tool-free assembly, making the installation process incredibly fast and simple.
Features:
Tested durability: Over 200,000 opening and closing cycles for lasting performance.
Versatile applications: Suited for all types of doors, including wood, glass, and aluminum.
TIP-ON technology: Enables handle-less designs for a modern look.
3-dimensional adjustment: Ensures easy height, side, and depth adjustments.
Simple assembly: Tool-free installation with the CLIP mechanism.
Specifications:
Application: Wide angle hinge for zero protrusion
Cranking: Overlay
Opening angle: 155°
Closing mechanism: Unsprung
Hinge variant: With free movement for TIP-ON
Cover cap types: 70.4503, 70T7504 (boss cover cap)
Boss material: Steel
Boss finish: Nickel plated
Boss assembly: Screw-On
Flange dimensions:
Width: 57mm
Length: 22mm
Height: 3.2mm
Fixing hole dimensions:
Diameter hinge boss drilling: 35mm
Diameter fixing holes: 8mm
Distance between drillings: 45mm
Eccentric position: 9.5mm
Arm material: Zinc
Arm finish: Nickel plated
Collision measurement (hinge arm height): 62mm
Side adjustment: +/- 2mm (with screw)
Depth adjustment: Convenient with spiral screw (+3/-2mm)
