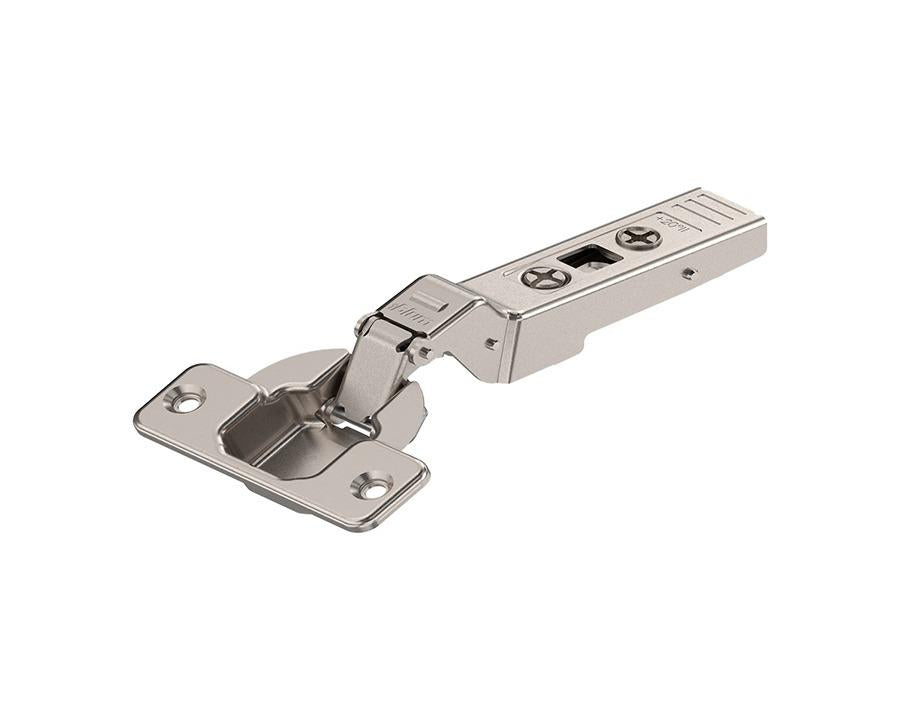

Blum CLIP top Angled Hinge 20 Degree Ii, Full Overlay. Boss: Screw-On 79A9555.T by W&B

Wilson and Bradley Angled Hinge

Wilson and Bradley offer innovative and functional hinge solutions designed for modern cabinetry. Crafted with precision, these hinges are built to endure over 200,000 opening and closing cycles, ensuring long-lasting reliability. Whether for wood, glass, or aluminium doors, our hinges cater to a wide variety of applications, including thin, thick, angled, and blind corner doors.

The CLIP mechanism makes assembly quick and tool-free, while 3-dimensional adjustments ensure precise and flexible door alignment. Our hinges also offer a wide range of customization options for doors with angles from -50° to 50°.

Features:

• Tested for 200,000 cycles to ensure durability
• Versatile applications for wood, glass, aluminium frame, and more

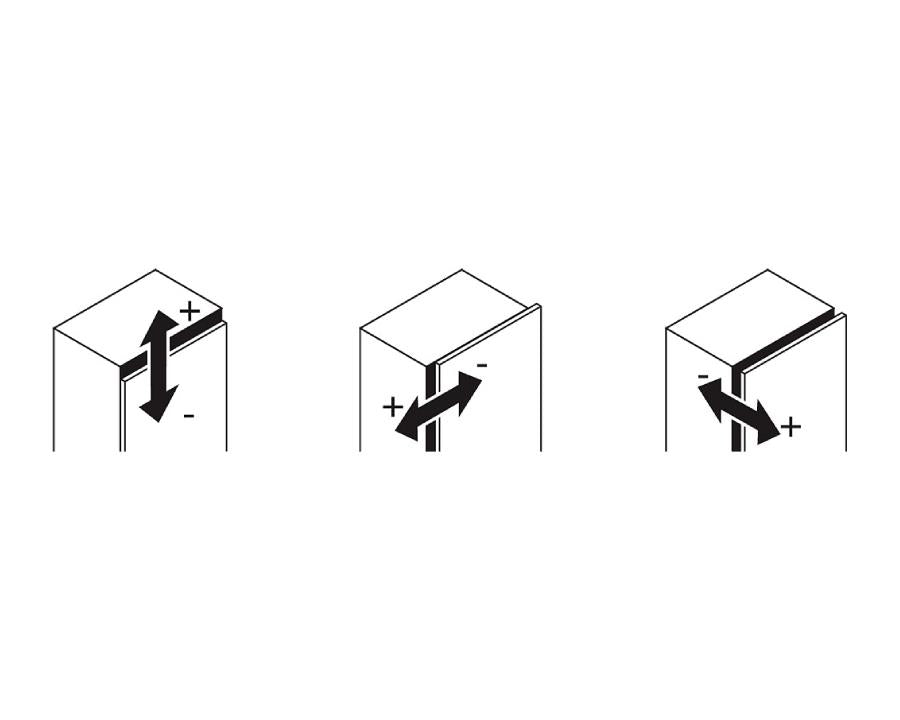

• 3-dimensional adjustment for perfect door alignment
• Quick, tool-free installation with the CLIP mechanism

Specifications:

• Application: Angled hinge
• Cranking: Overlay
• Opening angle: 95°
• Closing mechanism: With spring
• Cover cap types: 90M2603, 70.1553
• Boss material: Steel, nickel plated
• Boss assembly: Screw-on
• Flange dimensions:
  • Width: 57mm
  • Length: 20mm
  • Height: 3.2mm
• Diameter hinge boss drilling: 35mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 12.3mm
• Minimum/Maximum drilling distance: 3mm/7mm
• Arm material: Steel, nickel plated
• Cabinet angle: 20°
• Fixed dimension/factory setting: 5.81mm
• Side adjustment: +/- 1.8mm (with screw)
• Depth adjustment: +/- 2mm (spiral screw)
• Gap: 1mm
• Item package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately.
