SKU:IW79A9658.T

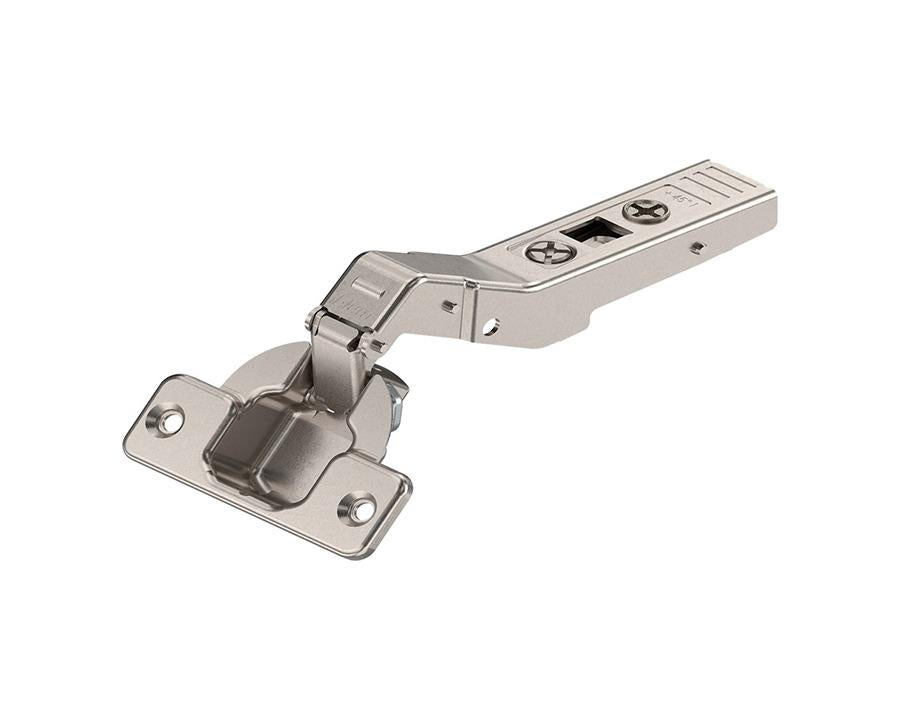

Blum CLIP top Angled Hinge 45 Degree I, Half Overlay Application. Boss: Screw-On 79A9658.T by W&B
Blum CLIP top Angled Hinge 45 Degree I, Half Overlay Application. Boss: Screw-On 79A9658.T by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Wilson and Bradley Angled Hinges – Precision Engineered for Seamless Functionality
The Wilson and Bradley hinge range combines innovative design and superior engineering, offering functionality that is uniquely tailored to meet the demands of modern cabinetry. Whether you are working with wood, glass, or aluminum frame doors, these hinges provide versatile solutions for both thin and thick doors. Our hinges are designed to withstand up to 200,000 opening and closing cycles, ensuring durability and long-lasting performance.
With the flexibility of 3-dimensional adjustment and a choice of screw-on or tool-free INSERTA options, Wilson and Bradley hinges make door-to-cabinet assembly fast, easy, and precise. These high-quality hinges are perfect for a range of applications, including special configurations such as angled, blind corner, or custom projects.
Features:
- Tested for 200,000+ cycles to ensure reliability over time.
- Versatile applications: Suitable for wood, glass, and aluminum frame doors.
- 3-dimensional adjustment for perfect alignment and operation.
- Quick and easy assembly with Blum’s patented CLIP mechanism.
Specifications:
- Application: Angled hinge
- Cranking: Half overlay
- Opening angle: 95°
- Closing mechanism: With spring
- Cover cap types: 90M2603, 70.1553
- Boss material: Steel, nickel plated
- Boss assembly: Screw-on
- Flange width: 57mm
- Flange length: 20mm
- Flange height: 3.2mm
- Diameter hinge boss drilling: 35mm
- Distance between drillings: 45mm
- Eccentric position of fixing holes: 9.5mm
- Boss drilling depth: 12.3mm
- Minimum/Maximum drilling distance: 3mm/7mm
- Arm material: Steel, nickel plated
- Cabinet angle: 45°
- Fixed dimension/factory setting: -6.01mm
- Side adjustment: +/- 1.8mm (with screw)
- Depth adjustment: +/- 2mm (spiral screw)
- Gap: 1mm
- Item package: 1 piece
- Packaging: Commercial packing
Note: All plates are sold separately
