SKU:IWBCTBFH60D

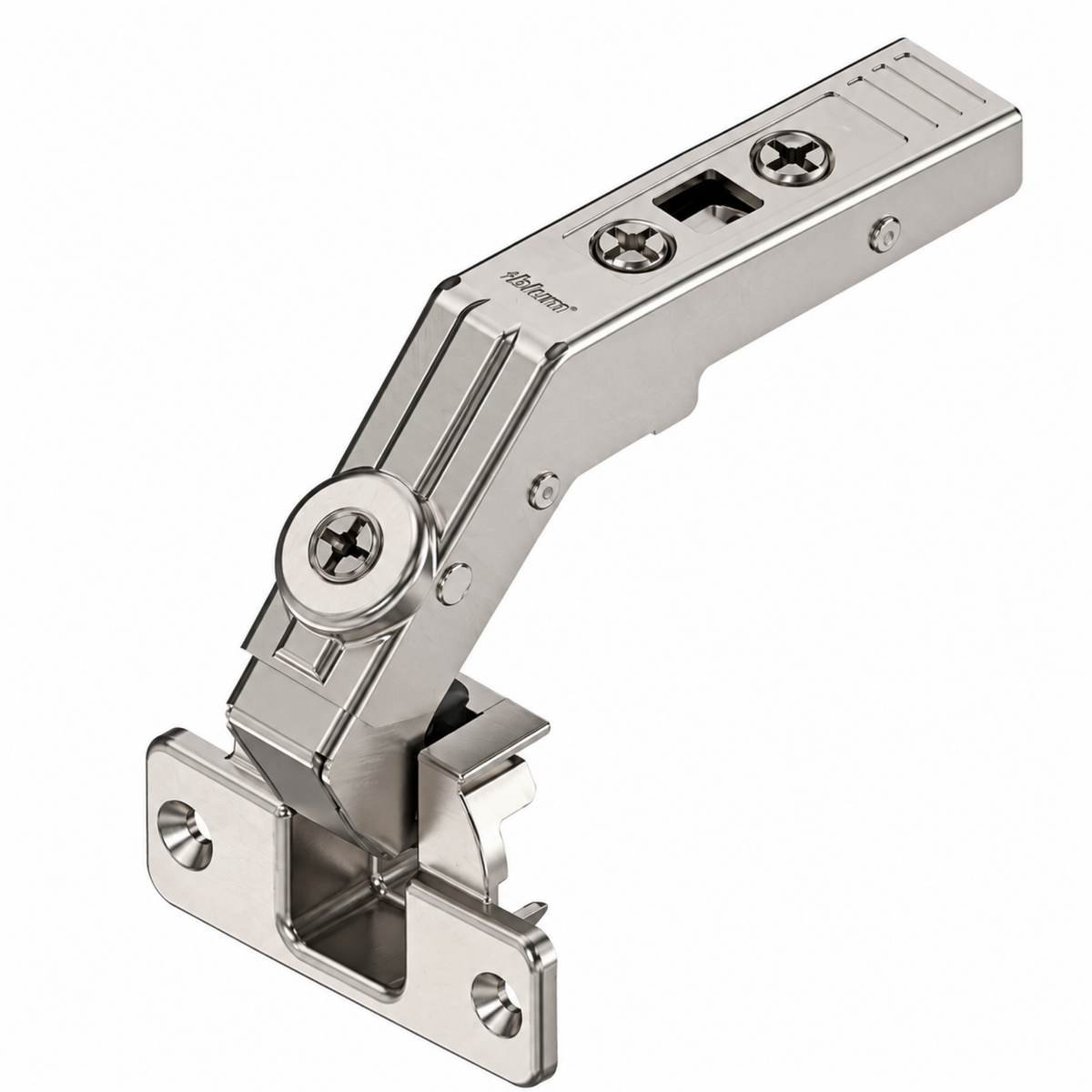

Blum CLIP top Bi-Fold Hinge 60 Degree. Boss: Screw-On BM79850 by W&B
Blum CLIP top Bi-Fold Hinge 60 Degree. Boss: Screw-On BM79850 by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Blum Bi-Fold Hinges by Wilson and Bradley
Blum’s innovative hinge systems combine function, design, and durability. Known for their reliability and ease of adjustment, Blum hinges offer 3-dimensional adjustability, ensuring the perfect fit for every door.
Built to withstand 200,000 opening and closing cycles, Blum hinges are ideal for a wide range of applications, from wood and glass doors to aluminum frames and both thin and thick doors. We also offer specialized solutions for blind corner and angled configurations.
CLIP top hinges provide enhanced adjustability, easy assembly, and a clean, modern design. Featuring side, height, and depth adjustments with spiral screws, Blum hinges also offer mounting plates with cam height adjustments. Plus, fronts can be quickly attached and removed without the need for tools.
Thanks to Blum’s time-tested CLIP mechanism, door-to-cabinet assembly is tool-free, fast, and reliable.
Features:
- Durable: Tested over 200,000 cycles for reliable function
- Versatile: Suitable for all types of doors and materials
- 3-dimensional adjustability: Side, height, and depth can be easily fine-tuned
- Quick installation: Tool-free, quick assembly with the CLIP system
Specifications:
- Application: Bi-fold hinge for overlay doors
- Opening Angle: 60°
- Closing Mechanism: Spring-assisted
- Cover Cap Type: 70.1503 (BPC10021)
- Boss Material: Zinc, nickel-plated
- Boss Assembly: Screw-on
- Flange Dimensions: 57mm (width), 20mm (length), 3.2mm (height)
- Hinge Boss Drilling: 35mm diameter, 11mm drilling depth
- Drill Hole Spacing: 45mm, eccentric position (9.5mm)
- Side Adjustment: +/- 2mm via screw
- Gap Adjustment: +7.2/-4.2mm
- Depth Adjustment: +3/-2mm with spiral screw
- Gap: 1.5mm
- Packaging: 1 piece (commercial packing)
Note: Plates sold separately.
