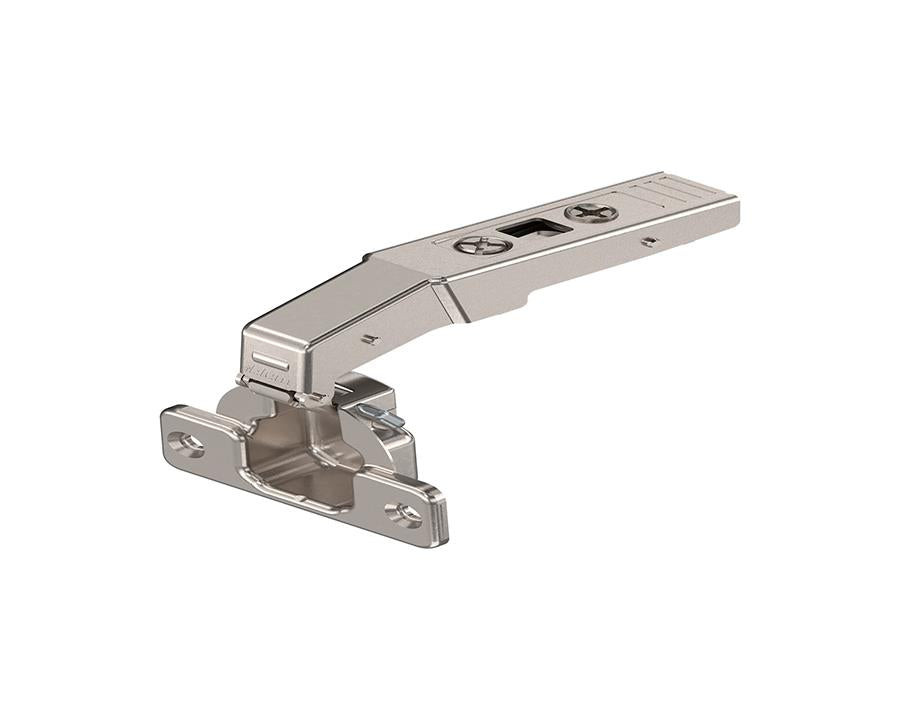

Blum CLIP top blind corner hinge 95° Inset, unsprung, Boss: Screw-On BM78T9550 by W&B

Blum CLIP top blind corner hinge 95° Inset, unsprung, Boss: Screw-On BM78T9550 by W&B

Regular price $9.48 AUD
Regular price Sale price $9.48 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Wilson and Bradley Blind Corner Hinge with TIP-ON Motion Technology

Wilson and Bradley’s innovative hinge systems combine modern design, superior function, and ease of installation. Engineered for durability, our hinges are designed to withstand over 200,000 opening and closing cycles, providing reliable performance for a wide range of door applications, including wood, glass, aluminum frame doors, and specialized designs like blind corners.

With TIP-ON motion technology, our hinges allow for the creation of handle-less door fronts, giving your cabinetry a sleek and modern appearance. The CLIP mechanism ensures quick and tool-free assembly, allowing doors to open and close with ease.

Features:

  • Tested for over 200,000 cycles for reliability
  • Supports TIP-ON motion technology for handle-less designs
  • 3-dimensional adjustment for a precise fit
  • Quick, tool-free assembly with CLIP mechanism
  • Suitable for various door applications, including blind corners

Specifications:

  • Application: Blind corner hinge
  • Opening angle: 95°
  • Closing mechanism: Unsprung
  • Hinge variant: Special exterior lever, with free movement for TIP-ON
  • Cover cap types: 90M2503, 70.1503
  • Boss material: Steel, Nickel plated
  • Boss assembly: Screw-On
  • Flange dimensions:
    • Width: 57mm
    • Length: 20mm
    • Height: 3.2mm
  • Diameter of fixing holes: 8mm
  • Distance between drillings: 45mm
  • Boss drilling depth: 12.3mm
  • Minimum/Maximum drilling distance: 3mm / 7mm
  • Arm material: Zinc
  • Arm finish: Nickel plated
  • Collision measurement (hinge arm height): 21mm
  • Fixed dimension/factory setting: -8mm

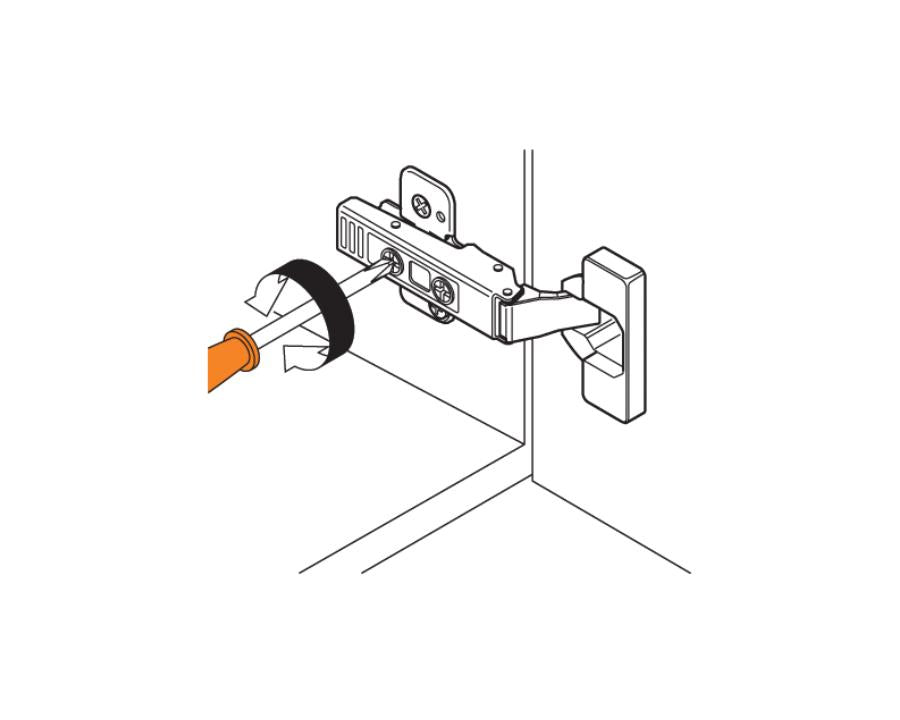

  • Side adjustment: +/- 2.5mm (with screw)
  • Depth adjustment: +/- 1mm (with spiral screw)
  • Gap: 3mm
  • Packaging: Commercial packing

Note: All plates are sold separately
