Innovative Hinge Solutions by Wilson and Bradley
Wilson and Bradley’s advanced hinge systems combine functionality, design, and precision, making them ideal for a wide variety of door applications. Our hinge systems are crafted to offer reliable performance, easy adjustment, and a sleek, attractive design. With the capability for 3-dimensional adjustment, our hinges are built for easy installation and long-lasting use, offering flexibility across multiple door materials including wood, glass, and aluminum frames.

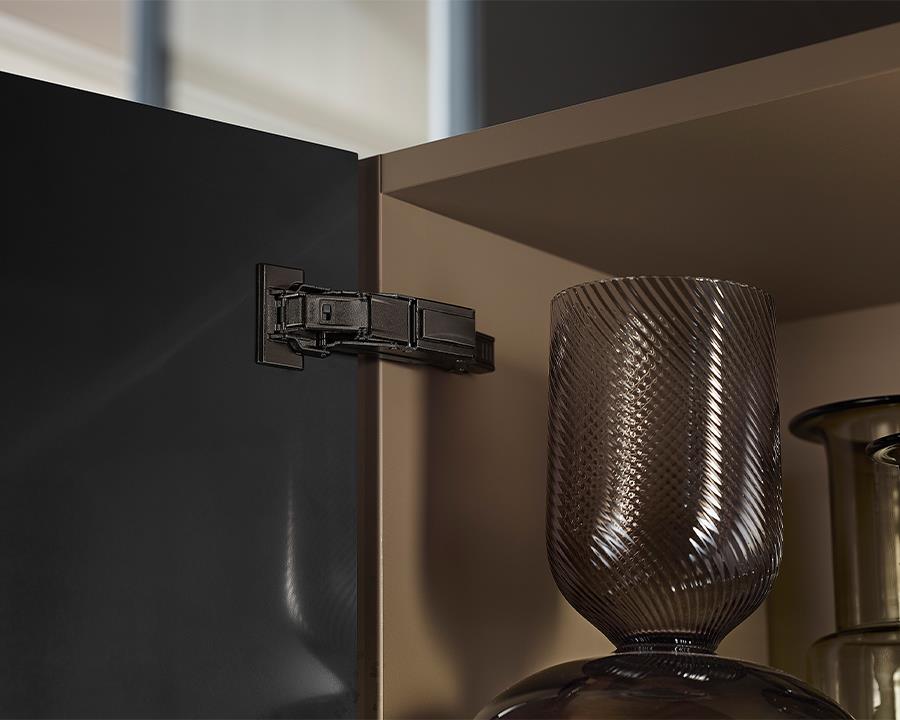

CLIP top BLUMOTION hinges are designed to provide a smooth, controlled closing action, regardless of the size, weight, or force with which doors are closed. Available in various angles (95°, 107°, 110°, and 155°), the BLUMOTION feature can be deactivated on one or both hinges to suit the speed of closure. Our CLIP technology ensures that door assembly is fast, tool-free, and convenient, allowing you to easily snap doors on and off with precise adjustments.
For projects involving thinner doors, our EXPANDO T fixing system (for doors from 8mm to 14mm thickness) accommodates many materials and exceptional design options. The steel pull-in anchor offers a secure fit for harder materials, while the plastic jaws ensure the same for softer materials. EXPANDO T features a fixed 10mm drilling diameter and a minimal 6mm drilling depth, providing flexible and secure door installation.
Features:
- Durability: Tested for over 200,000 opening and closing cycles for long-lasting reliability.
- Versatility: Suitable for wood, glass, aluminum, and thin doors (8mm to 14mm thickness).
- BLUMOTION: Integrated soft-close mechanism for smooth, controlled door movement.
- 3-dimensional adjustment: Precision adjustment for perfect door alignment.
- EXPANDO T: Fixed drilling diameter of 10mm for thinner doors, with a 6mm drilling depth.
- Easy assembly: Tool-free CLIP mechanism for simple installation.

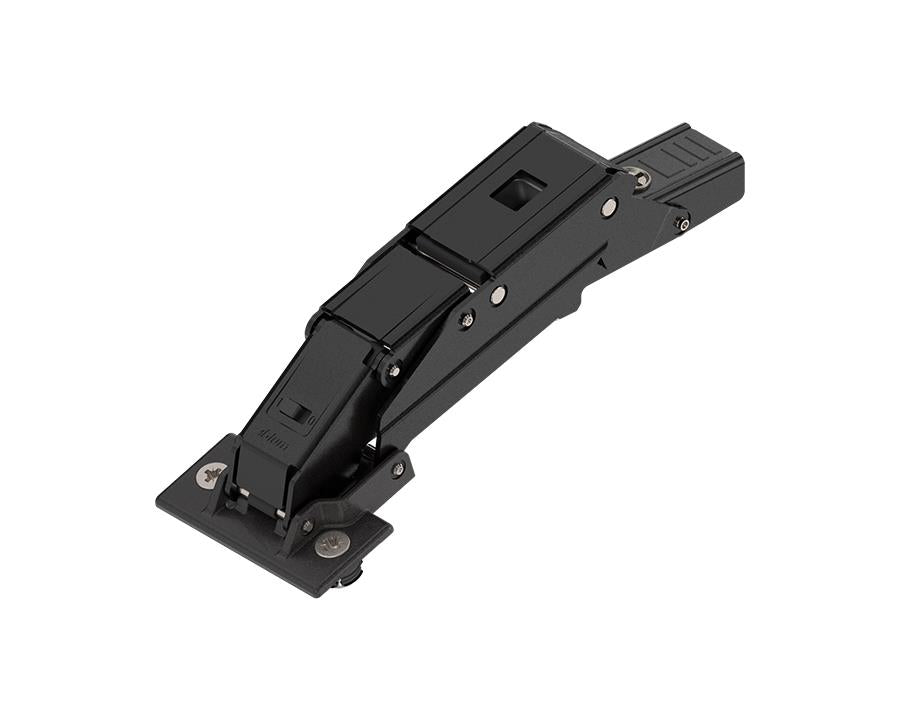

Specifications:
- Application: Hinge for thin doors (8mm-14mm)
- Opening angle: 110°
- Closing mechanism: With spring (BLUMOTION integrated)
- Cover cap types: 70.4503, 70T7504 (boss cover cap)
- Boss material: Zinc, with Onyx black finish
- Boss assembly: EXPANDO T (for thin doors)
- Flange dimensions:
- Width: 44mm
- Length: 22mm
- Height: 2.2mm
- Fixing hole diameter: 10mm
- Distance between drillings: 32mm
- Minimum drilling distance: 23.5mm
- Maximum drilling distance: 46mm
- Arm material: Steel, with Onyx black finish
- Collision measurement (hinge arm height): 56.5mm
- Fixed dimension/factory setting: -3.5mm
- Side adjustment: +/- 2mm (with screw)
- Depth adjustment: Convenient with spiral screw (+3/-2mm)
- Gap: 1.5mm
- Item package: 1 piece
- Packaging: Commercial packing
