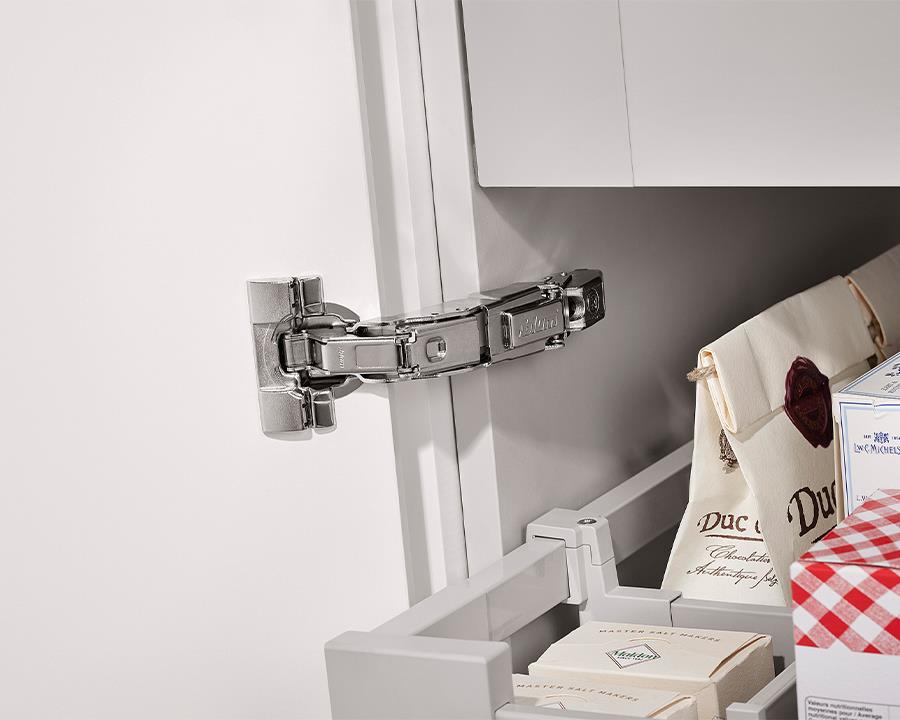

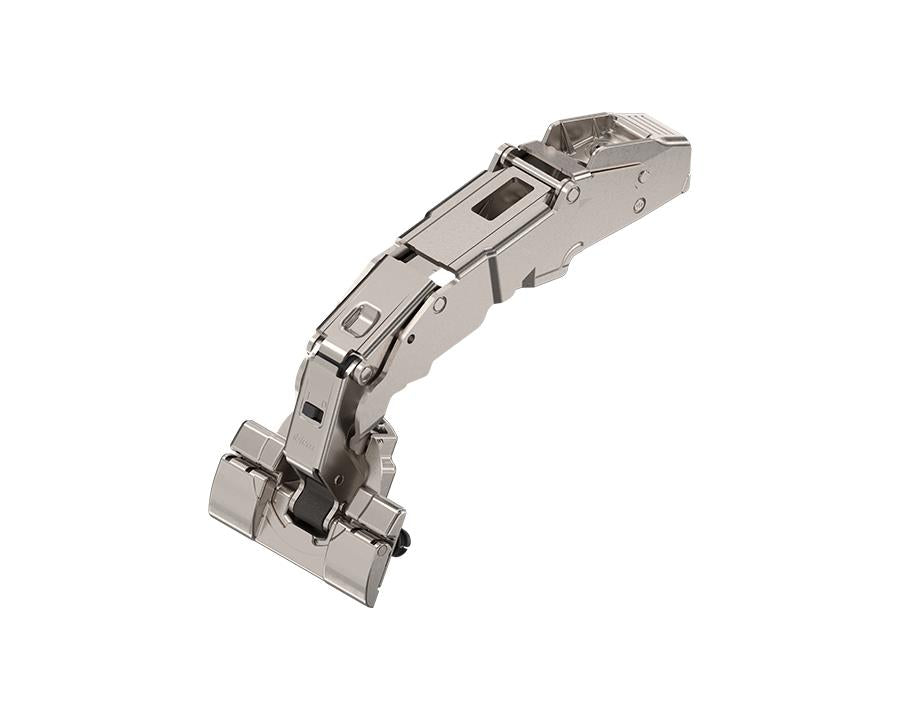

Blum CLIP top BLUMOTION 155° hinge. Half Overlay. Dual Application. Boss: INSERTA by W&B

Blum CLIP top BLUMOTION 155° hinge. Half Overlay. Dual Application. Boss: INSERTA by W&B

Regular price $36.97 AUD
Regular price Sale price $36.97 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Request bulk / project pricing

Before you submit an enquiry

Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.

To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.

For single-item purchases or small quantities, the website price is usually the best available price.

Continue to contact form

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges

Returns are handled according to the product condition, order type and Imperial return policy.

Blum Hinges: Innovation and Reliability by Wilson and Bradley

Blum’s hinge systems combine innovative design with reliable functionality, offering precise 3-dimensional adjustment for optimal door alignment. Designed to endure over 200,000 opening and closing cycles, Blum hinges provide seamless operation across various applications including wood, glass, aluminum frame doors, and both thin and thick doors. Specialized solutions for blind corners and angled doors are also available.

The CLIP top BLUMOTION system ensures smooth, controlled closing action for doors, adapting to size, weight, and closing force. With options for 95°, 107°, 110°, and 155° opening angles, the BLUMOTION feature can be deactivated on one or both hinges to control closing speed. CLIP technology makes installation easy and tool-free, while the system allows for quick 3-dimensional and cam adjustments.

Blum’s proven CLIP mechanism guarantees fast, tool-free assembly, providing reliable ease for every door equipped with Blum hinges.

Key Features:

  • Tested to endure over 200,000 opening and closing cycles
  • Suitable for various applications (wood, glass, aluminum frame, thin/thick doors)
  • 3-dimensional adjustment for precise door alignment
  • Tool-free and quick assembly

Specifications:

  • Application: Wide-angle hinge
  • Cranking: Dual application
  • Opening Angle: 155°
  • Closing Mechanism: Spring-assisted
  • Hinge Variant: With integrated BLUMOTION
  • Cover Cap Type: 70.4503 (BM704503)
  • Boss Material: Steel, nickel-plated finish
  • Boss Assembly: INSERTA
  • Flange Dimensions: Width: 57mm, Length: 22mm, Height: 4.8mm
  • Hinge Boss Drilling: 35mm diameter
  • Fixing Holes: 8mm diameter, 45mm distance between holes
  • Eccentric Position of Fixing Holes: 9.5mm
  • Boss Drilling Depth: 11.7mm
  • Minimum/Maximum Drilling Distance: 3mm/8mm
  • Arm Material: Zinc, nickel-plated finish
  • Collision Measurement: 72mm arm height
  • Factory Setting: 1.5mm
  • Side Adjustment: +/- 2mm (screw-driven)
  • Depth Adjustment: +3/-2mm (spiral screw)
  • Gap: 1.5mm
  • Item Package: 1 piece
  • Packaging: Industrial packing

Note: Plates sold separately
