Blum Hinges: Innovative Functionality by Wilson and Bradley
Blum's hinge systems combine cutting-edge ingenuity with superior performance, offering enhanced functionality, easy adjustment, and elegant design. Our hinges feature 3-dimensional adjustment, allowing for precise alignment across a wide range of applications.
Built to endure over 200,000 opening and closing cycles, Blum hinges are versatile, suitable for wood, glass, aluminum frame doors, and both thin and thick doors. We also provide specialized solutions for unique applications such as blind corner and angled doors.

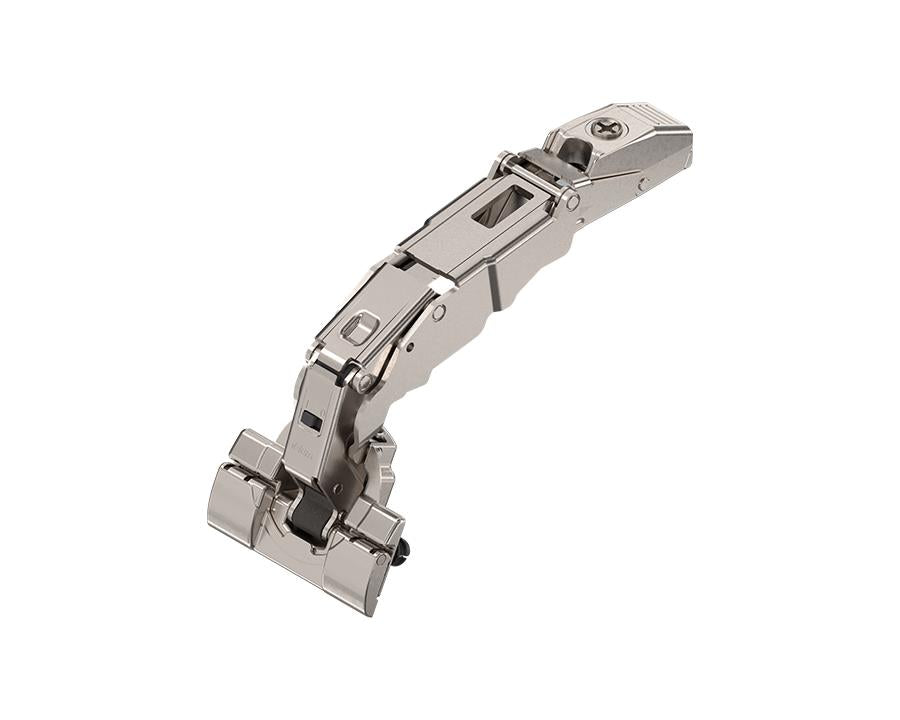

The CLIP top BLUMOTION system adapts to the specific needs of every door, ensuring smooth, controlled closing, regardless of size, weight, or closing force. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges to control closing speed. The CLIP technology makes installation and adjustments quick and easy, without the need for tools.
Blum’s trusted CLIP mechanism ensures simple, tool-free door-to-cabinet assembly, with every door equipped with Blum hinges opening and closing effortlessly.
Key Features:
- Rigorously tested to withstand 200,000+ opening/closing cycles
- Versatile for a variety of applications
- 3-dimensional adjustment for precise alignment
- Tool-free assembly for quick installation
Specifications:
- Application: Wide-angle hinge for zero protrusion
- Cranking: Overlay application
- Opening Angle: 155°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 70.4503 (BM704503)
- Boss Material: Steel, nickel-plated finish
- Boss Assembly: INSERTA (Knock-in)
- Flange Dimensions: Width: 57mm, Length: 27.5mm, Height: 6.4mm
- Hinge Boss Drilling: 35mm diameter
- Fixing Holes: 8mm diameter, 45mm distance between holes
- Eccentric Position of Fixing Holes: 9.5mm
- Boss Drilling Depth: 11.7mm
- Minimum/Maximum Drilling Distance: 3mm/8mm
- Arm Material: Steel, nickel-plated finish
- Collision Measurement: 62mm arm height
- Factory Setting: 11mm
- Side Adjustment: +/- 2mm (screw-driven)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Industrial packing
Note: Plates sold separately.
