Blum Hinges: Innovative Functionality by Wilson and Bradley
Blum’s hinge systems combine inventive design and reliable functionality, offering superior performance, easy adjustment, and stylish design. Our hinges provide 3-dimensional adjustment for precision alignment, making them ideal for various applications.
Built to withstand up to 200,000 opening and closing cycles, Blum hinges are versatile, suitable for wood, glass, aluminum frame doors, and both thin and thick doors. We also offer specialized solutions for blind corner and angled doors.
The CLIP top BLUMOTION system adapts to the specific needs of each door, ensuring smooth, controlled closing action regardless of size, weight, or closing force. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges to achieve the optimal closing speed. CLIP technology makes installation and adjustments simple, without the need for tools.
Blum’s trusted CLIP mechanism ensures that door-to-cabinet assembly is tool-free, quick, and efficient. With Blum hinges, every door opens and closes effortlessly.
Key Features:
- Tested for over 200,000 opening and closing cycles for exceptional durability
- Suitable for a wide range of applications
- 3-dimensional adjustment for precise alignment
- Easy, tool-free assembly and adjustment
Specifications:

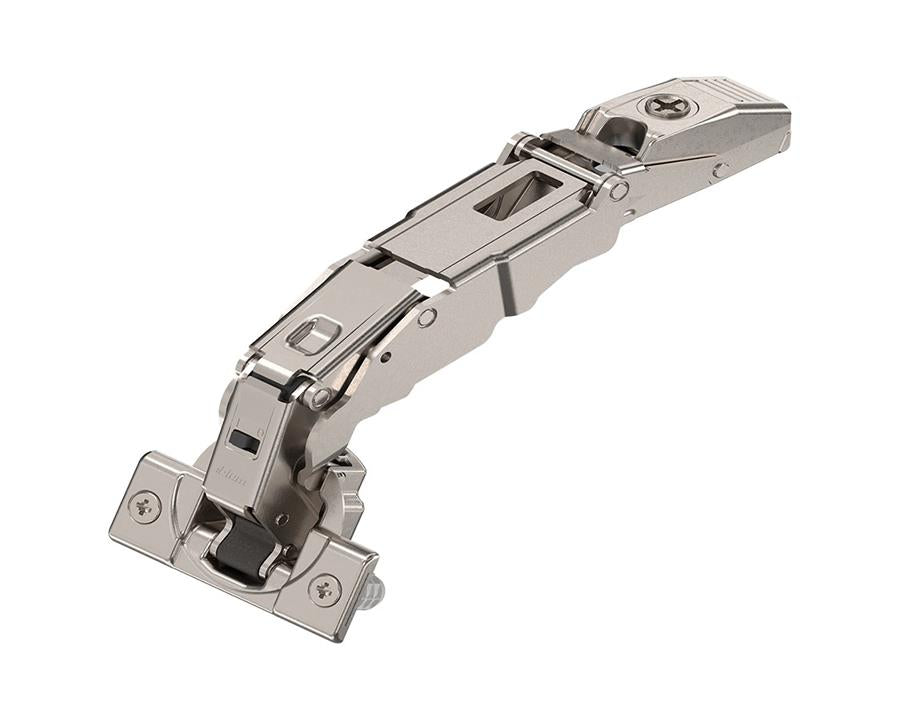

- Application: Wide-angle hinge for zero protrusion
- Cranking: Overlay application
- Opening Angle: 155°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 70.4503 (BM704503), 70T7504 (Boss cover cap)
- Boss Material: Steel, nickel-plated finish
- Boss Assembly: Knock-in
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Hinge Boss Drilling: 35mm diameter
- Fixing Holes: 8mm diameter, 45mm distance between holes
- Eccentric Position of Fixing Holes: 9.5mm
- Boss Drilling Depth: 11.7mm
- Minimum/Maximum Drilling Distance: 3mm/8mm
- Arm Material: Zinc, nickel-plated finish
- Collision Measurement: 62mm arm height
- Factory Setting: 11mm
- Side Adjustment: +/- 2mm (screw-driven)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Industrial packing
Note: Plates sold separately.
