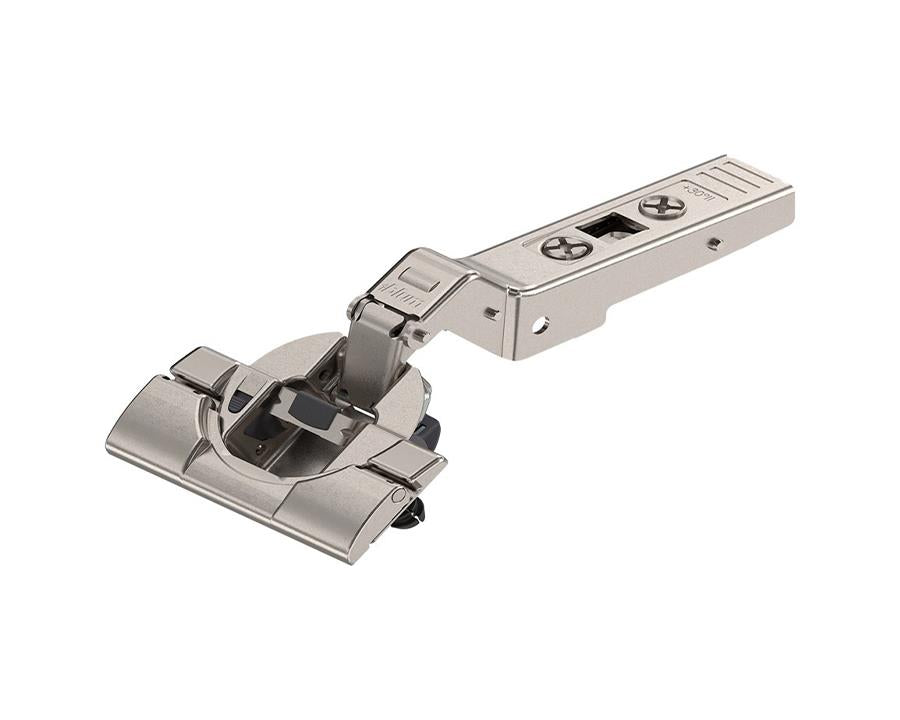

Blum CLIP top BLUMOTION Angled Soft Close Hinge 30 Degree Ii, Full Overlay. Boss: INSERTA 79B9596 by W&B

Wilson & Bradley Angled Hinges: Precision, Durability, and Design

Wilson & Bradley's innovative hinge systems are engineered for reliability, seamless adjustments, and an aesthetically pleasing finish. Designed for versatile applications, our hinges allow for 3-dimensional adjustments, providing flexibility and accuracy in every installation.

Our hinges are built to withstand over 200,000 cycles, ensuring long-lasting performance in all environments, including wood, glass, aluminum frame, and both thin and thick doors. Additionally, our special solutions cater to blind corner and angled door installations, offering tailored functionality.

With the CLIP top BLUMOTION system, our hinges guarantee smooth and controlled door closure, regardless of the door's size, weight, or closing force. The BLUMOTION feature can be easily deactivated on one or both hinges to adjust the speed of door closure, making installation simpler. The CLIP technology also allows for easy door installation and removal without the need for tools, while providing three-dimensional adjustments.

Key Features:

• Proven Durability: Rigorously tested for over 200,000 opening and closing cycles to ensure long-term reliability.
• Universal Fit: Suitable for a variety of applications, from wood to glass and aluminum frame doors.

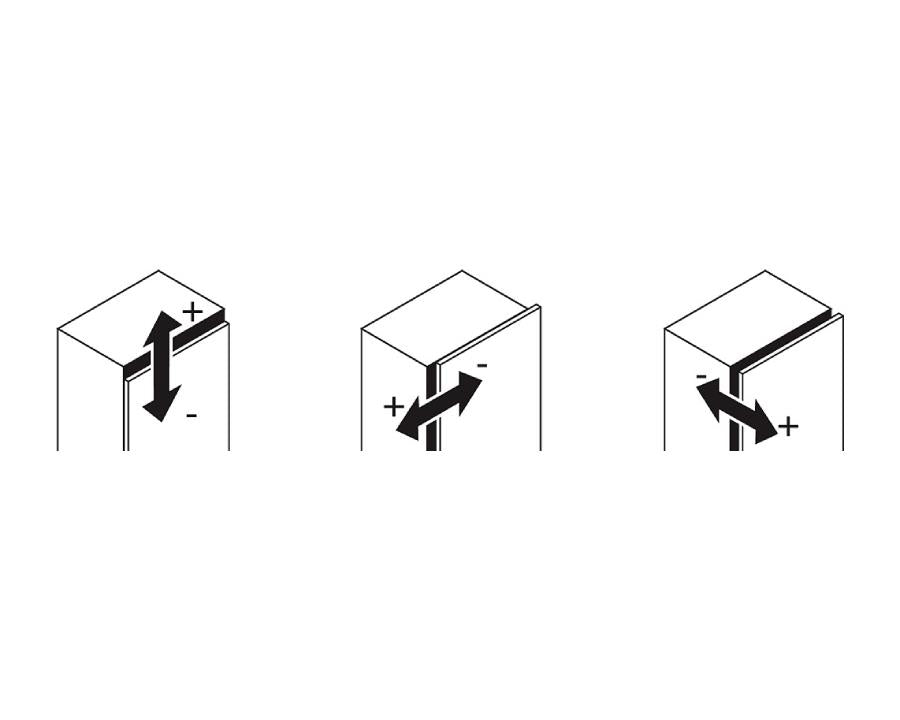

• 3-Dimensional Adjustment: Provides flexibility in installation, ensuring perfect door alignment.
• Tool-Free Assembly: The CLIP system allows for easy, tool-free installation and adjustment.
• Quiet and Smooth Operation: BLUMOTION ensures that doors close gently and quietly every time.

Specifications:

• Application: Angled hinge, ideal for door configurations with angled openings.
• Cranking: Overlay design for enhanced functionality.
• Opening Angle: 95° for optimal door clearance.
• Closing Mechanism: Integrated spring-assisted soft-close with BLUMOTION for a controlled, silent closing action.
• Cover Cap Types: 90M2603, 70.1553 for a clean, finished look.
• Boss Material: Nickel-plated steel for strength and durability.
• Boss Assembly: Screw-on for secure and stable installation.
• Flange Dimensions: 57mm width, 27.5mm length, 6.4mm height for precise fitting.
• Hinge Boss Drilling: 35mm diameter for compatibility with standard door drills.
• Fixing Holes: 8mm diameter, spaced 45mm apart for easy installation.
• Eccentric Position: 9.5mm offset for perfect door alignment.
• Arm Material: Steel, nickel-plated for enhanced durability.
• Cabinet Angle: 30° for flexible application.
• Fixed Dimension/Factory Setting: 3.08mm for consistent installation.
• Side Adjustment: +/- 1.8mm for fine-tuning door placement.
• Depth Adjustment: Spiral screw adjustment for easy depth changes, +/- 2mm.
• Gap: 1mm to ensure proper door clearance.
• Packaging: 1 piece per package, commercial packing for safe transport and storage.

Note: All plates are sold separately
