Wilson & Bradley Hinges: Engineering Excellence in Every Detail
Wilson & Bradley presents innovative hinge systems that combine robust functionality, sleek design, and cutting-edge technology for enhanced performance. Designed to deliver reliable operation and ease of installation, our hinges offer 3-dimensional adjustments that ensure precise door alignment. Constructed for longevity, these hinges are built to withstand up to 200,000 opening and closing cycles.
Our hinge range caters to various door types, including wood, glass, and aluminum frames, as well as thin and thick doors. We also specialize in more complex configurations, such as blind corner and angled door applications, offering flexible solutions for any need.
The CLIP top BLUMOTION system ensures a soft-close mechanism, smoothly adapting to the dynamics of each door. No matter the door's size, weight, or force applied, you can trust the BLUMOTION system to close it with ease and quiet precision. The integrated feature can be customized from -50° to 50° angles, with the option to deactivate BLUMOTION on one or both hinges for optimal closing speed.
The CLIP technology simplifies the installation process, making assembly tool-free and quick. Enjoy effortless door mounting and adjustment, resulting in a smooth, functional operation every time.
Key Features:
- Durable Performance: Tested for over 200,000 cycles to ensure long-lasting reliability.
- Versatile Applications: Suitable for all types of doors, from standard to specialty solutions like angled and blind corner hinges.

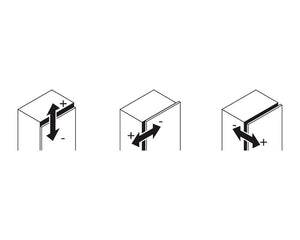

- 3-Dimensional Adjustments: Offers precise adjustments in all directions for perfect door alignment.
- Quick and Easy Assembly: CLIP technology makes installation faster and more efficient.
Specifications:

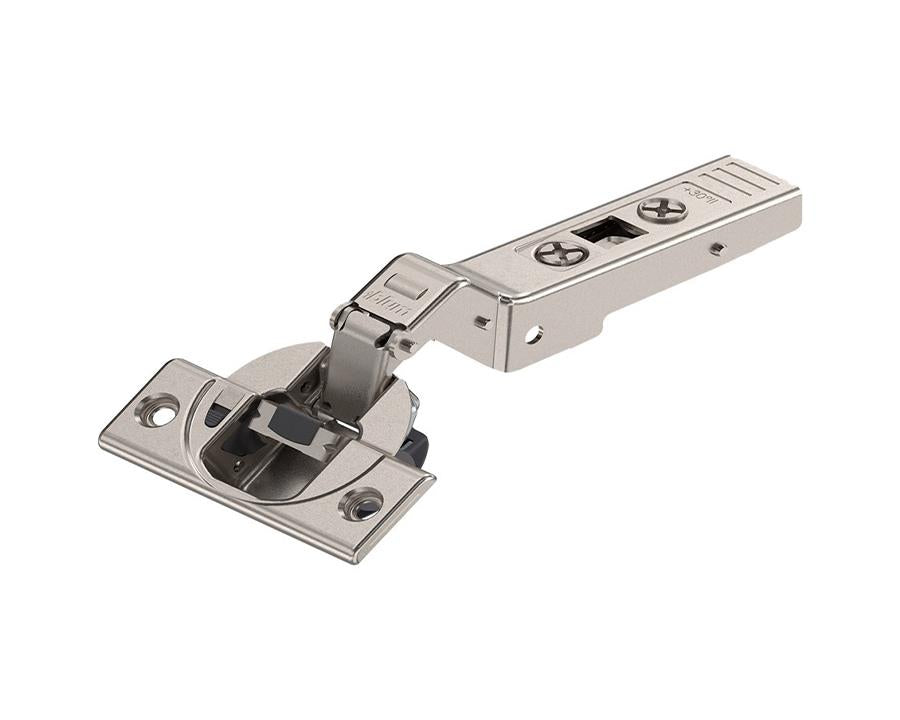

- Application: Angled hinge for maximum overlay
- Cranking: Full overlay configurations
- Opening Angle: 95°
- Closing Mechanism: Spring-assisted soft-close action
- Hinge Variant: Integrated BLUMOTION for a smooth, controlled close
- Cover Cap Types: 90M2603, 70.1553, 70T3504 (boss cover cap)
- Boss Material: Nickel-plated steel
- Boss Assembly: Screw-on for secure mounting
- Flange Dimensions: 57mm width, 22mm length, 3.2mm height
- Hinge Boss Drilling: 35mm diameter, 8mm fixing holes, 45mm spacing
- Eccentric Position: 9.5mm offset for perfect fitting
- Arm Material: Nickel-plated steel for strength and longevity
- Cabinet Angle: 30°
- Side Adjustment: Screw-adjustable, +/- 1.8mm
- Depth Adjustment: Convenient spiral screw, +/- 2mm
- Gap: 1.5mm
- Package: 1 piece per item, commercial packing
Note: All plates are sold separately.
