Blum hinges combine ingenuity and inventive power to create functionality that is unique to our systems. Our hinges are designed for reliable performance, enhanced ease of adjustment, and a sleek, attractive design. With 3-dimensional adjustment capabilities, our hinge systems offer unmatched flexibility for various applications.
Constructed to withstand 200,000 opening and closing cycles, Blum hinges are the ideal solution for a wide range of door types, including wood, glass, and aluminum frame doors. Whether for thin or thick doors, we also offer specialized solutions such as blind corner and angled applications.
The CLIP top BLUMOTION system automatically adapts to the dynamics of every door, ensuring a smooth and consistent closing action. Regardless of the door's size, weight, or closing force, the BLUMOTION feature is adjustable to ensure that doors close at the perfect speed. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges, giving you full control. With CLIP technology, doors can be easily snapped on and off, while 3-dimensional and cam adjustments can be quickly made.
Blum's proven CLIP mechanism allows for tool-free, quick, and easy assembly. Every door equipped with Blum hinges opens and closes with effortless reliability.
Key Features
- Durability: Tested to endure over 200,000 opening and closing cycles.
- Versatility: Ideal for a wide range of applications including wood, glass, and aluminum frame doors, as well as thin and thick doors.
- 3-Dimensional Adjustment: Simple and precise adjustment to ensure perfect alignment.
- Easy Assembly: Tool-free and quick with Blum's CLIP technology.
- Soft, Controlled Closing: Integrated BLUMOTION ensures a quiet and smooth closing action.
Specifications

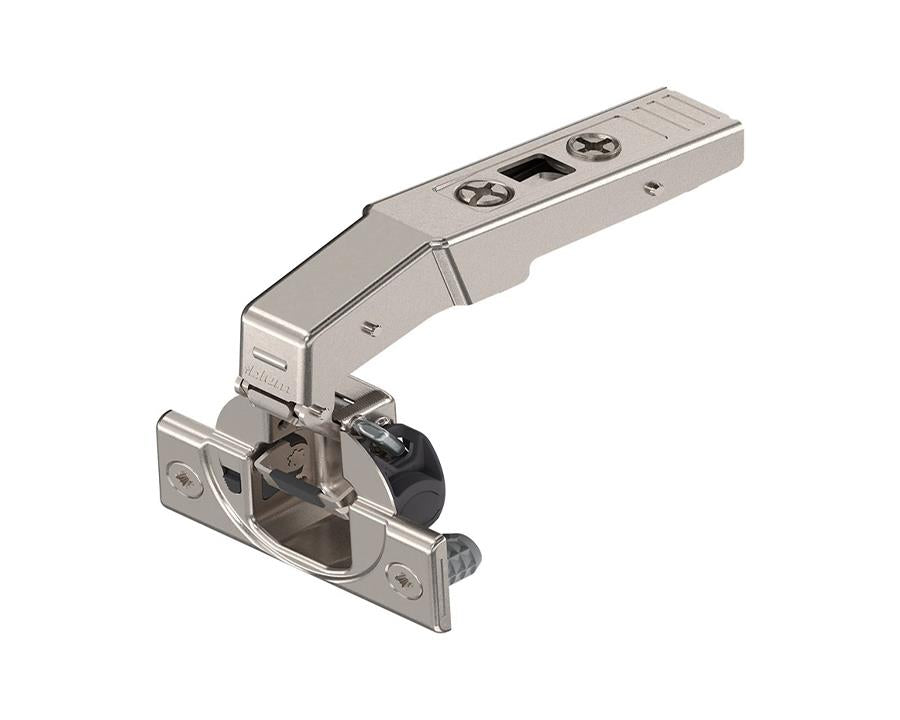

- Application: Blind corner hinge
- Opening Angle: 95°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 90M2503, 70.1503 (BPC10021), 70T3504 (Boss cover cap)
- Boss Material: Steel, Nickel-plated finish
- Boss Assembly: Knock-in
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Diameter of Hinge Boss Drilling: 35mm
- Distance Between Drillings: 45mm
- Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5mm
- Boss Drilling Depth: 13mm
- Minimum/Maximum Drilling Distance: 3mm/7mm
- Arm Material: Steel, Nickel-plated finish
- Collision Measurement (Hinge Arm Height): 21mm
- Fixed Dimension/Factory Setting: -8mm
- Side Adjustment: +/-2.5mm (With screw)
- Depth Adjustment: +/-1mm (Convenient spiral screw)
- Gap: 3mm
- Item Package: 1 piece
- Packaging: Commercial packing (1 piece)
Note: Plates are sold separately.
