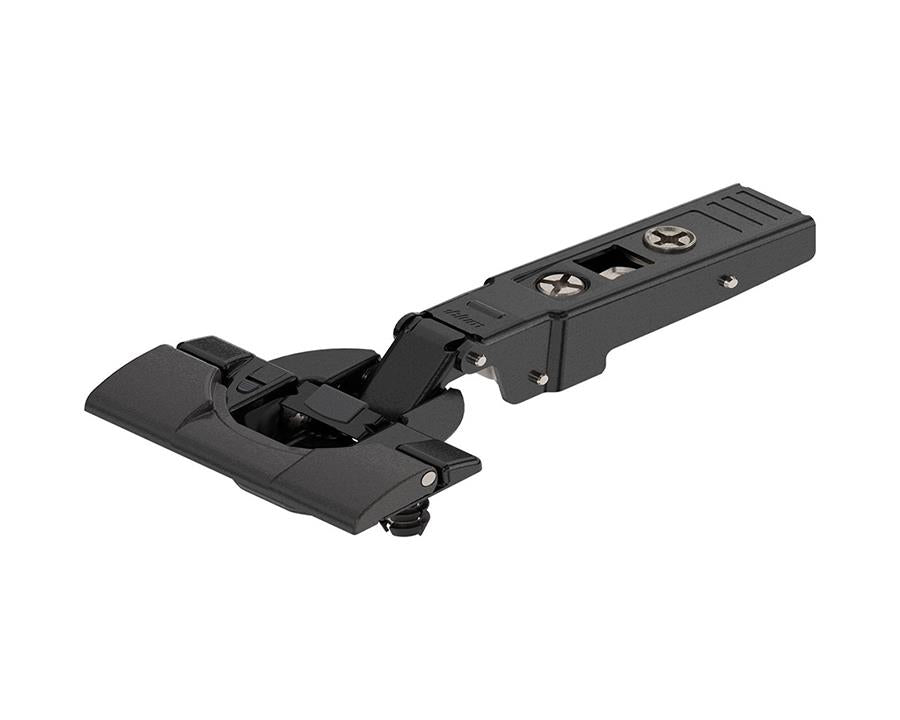

Blum CLIP top BLUMOTION Profile Door Hinge 95°. Overlay. Boss: INSERTA. Onyx Black 71B9590 by W&B
Blum CLIP top BLUMOTION Profile Door Hinge 95°. Overlay. Boss: INSERTA. Onyx Black 71B9590 by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Wilson and Bradley Profile Door Hinge System
Wilson and Bradley brings innovation to hinge design with solutions that are both functional and easy to install. Our hinges provide enhanced adjustability, durability, and seamless assembly, offering a superior user experience with 3-dimensional adjustment capabilities.
Built to endure up to 200,000 opening and closing cycles, our hinge range is adaptable for various applications, including wood, glass, aluminum, and both thin and thick doors. We also cater to specialized requirements like blind corners and angled installations.

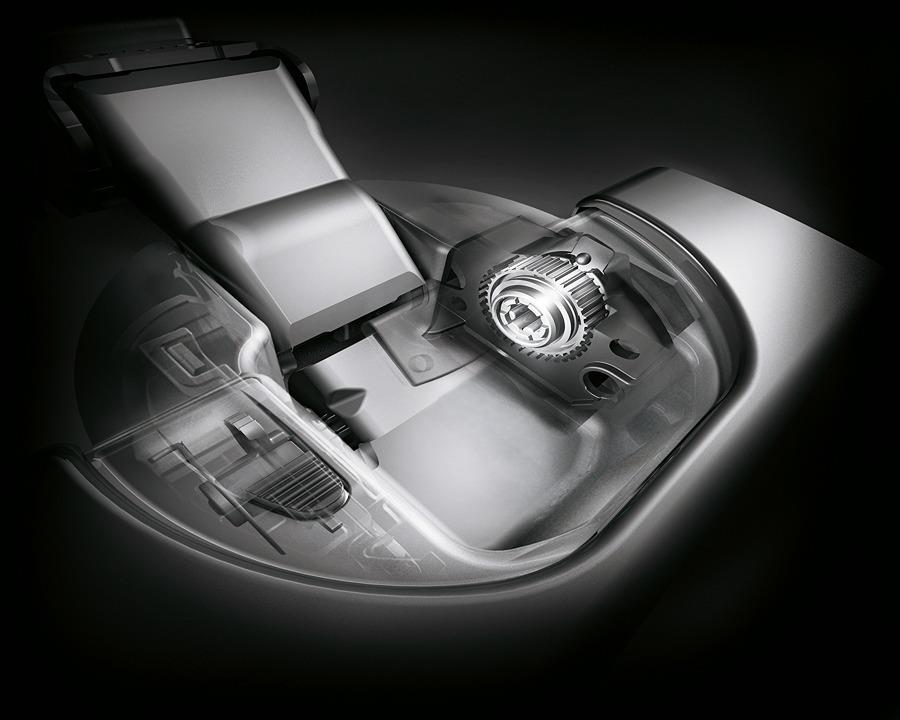

CLIP top BLUMOTION technology ensures smooth, quiet closing regardless of door size or force. The feature can be deactivated on one or both hinges to control closing speed, while the CLIP system allows for tool-free, rapid installation and adjustments.
Features:
- Rigorously tested for over 200,000 cycles

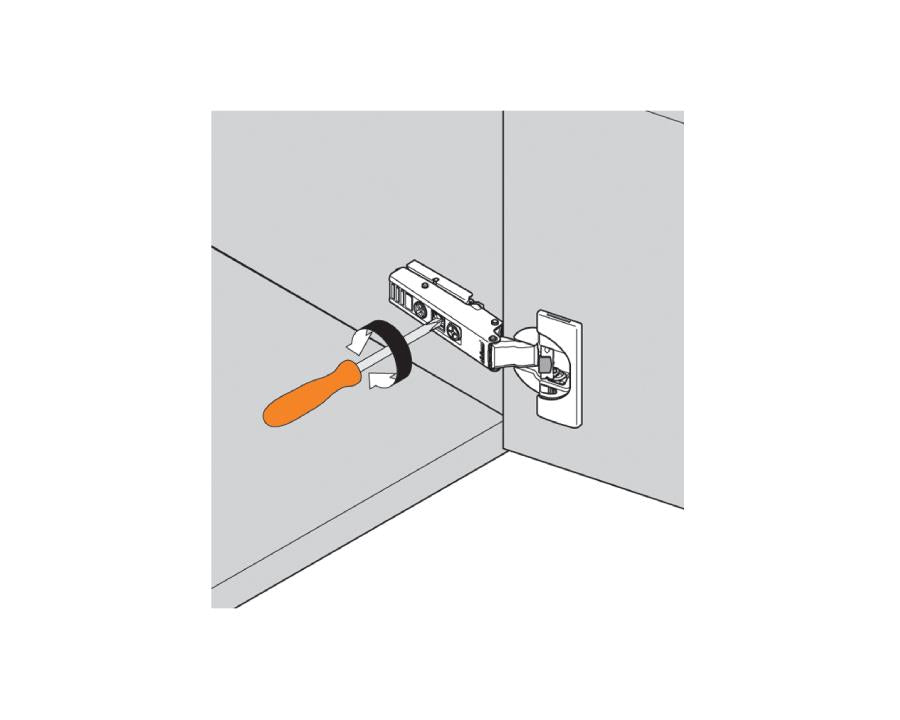

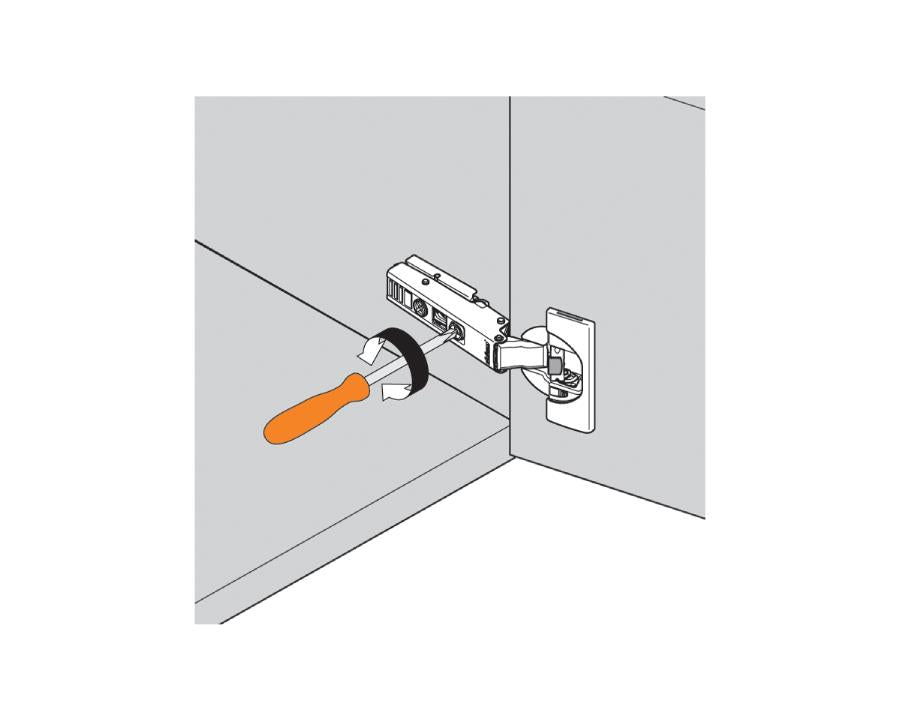

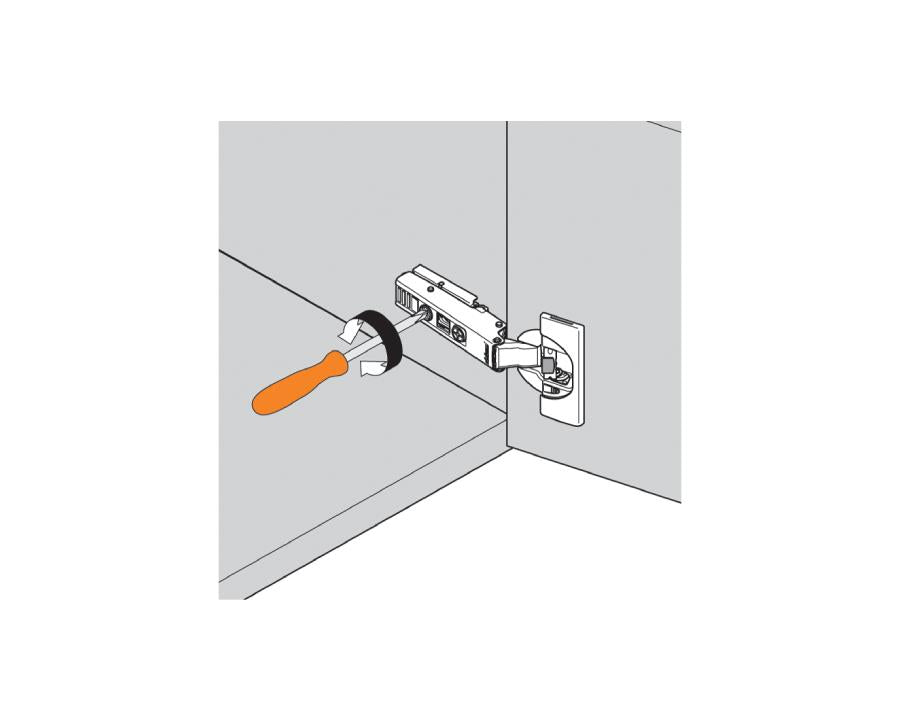

- Adjustable in 3 dimensions for precise alignment

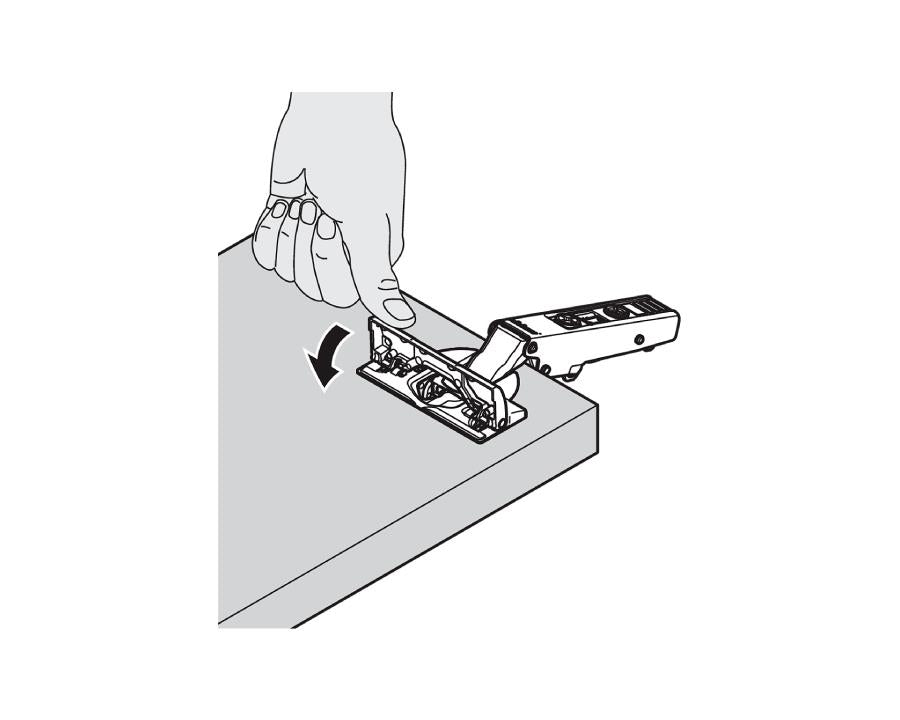

- Tool-free assembly with CLIP mechanism
- Smooth, controlled closing with BLUMOTION
Specifications:
- Application: Profile/thick-door hinge, full overlay
- Opening angle: 95°
- Closing mechanism: With spring
- Hinge variant: Integrated BLUMOTION
- Compatible hinge arm cover cap: 70.1553
- Boss material: Steel
- Boss finish: Onyx black
- Boss assembly: INSERTA
-
Flange dimensions:
- Width: 57mm
- Length: 27.5mm
- Height: 6.4mm
- Diameter of fixing holes: 8mm
- Distance between drillings: 45mm
- Boss drilling depth: 13mm
- Minimum/Maximum drilling distance: 3mm / 7mm
- Arm material: Steel
- Arm finish: Onyx black
- Collision measurement (hinge arm height): 22mm
- Side adjustment: +/- 2mm (with screw)
- Depth adjustment: +3/-2mm (with spiral screw)
- Gap: 1.5mm
- Packaging: Commercial packing
