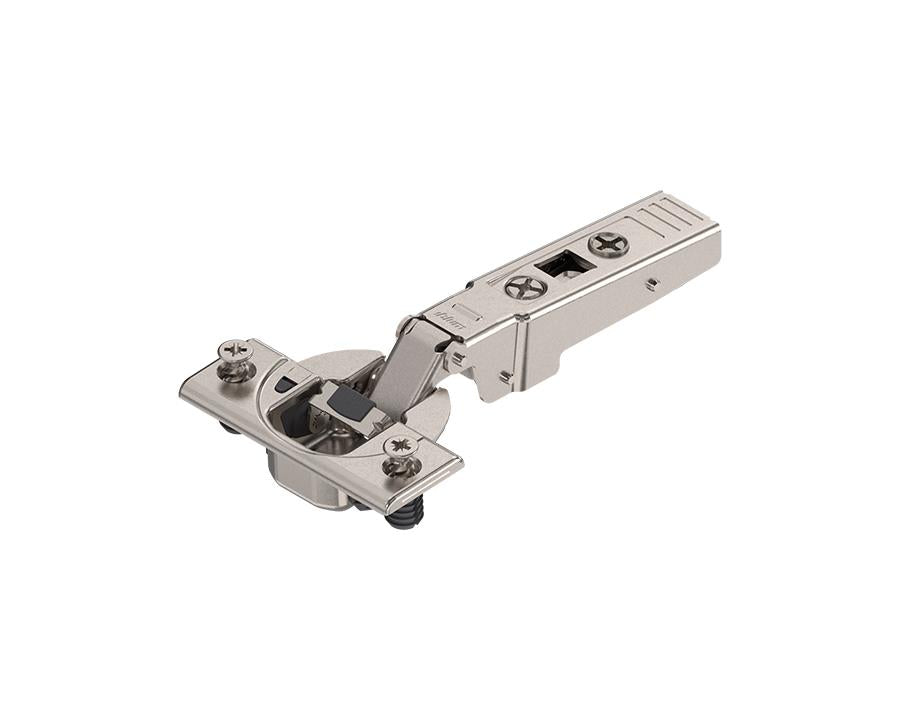

Blum CLIP top BLUMOTION Profile Door Soft Close Hinge 95 Degree. Full Overlay. Boss: EXPANDO 71B958E by W&B

Blum CLIP top BLUMOTION Profile Door Soft Close Hinge 95 Degree. Full Overlay. Boss: EXPANDO 71B958E by W&B

Regular price $17.53 AUD
Regular price Sale price $17.53 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley hinge systems blend inventive design with unmatched functionality. Built to ensure reliable operation, enhanced adjustability, and ease of assembly, our hinges offer 3-dimensional adjustment for precise door alignment and smooth operation.

Constructed to endure over 200,000 opening and closing cycles, these hinges provide solutions for a variety of applications, including wood, glass, and aluminium frame doors. Whether dealing with thin or thick doors, or requiring specialized solutions for blind corners or angled applications, we have you covered.

Our tried-and-true CLIP mechanism ensures tool-free, quick, and easy door-to-cabinet assembly, making installation a breeze while delivering consistent performance.

Features:

  • Tested for over 200,000 cycles for durability
  • 3-dimensional adjustment for accurate alignment
  • Tool-free assembly with CLIP technology
  • Reliable, smooth door operation

Specifications:

  • Application: Profile door hinge
  • Cranking: Overlay application
  • Opening angle: 95°
  • Closing mechanism: With spring
  • Hinge variant: With integrated BLUMOTION
  • Cover cap type: 90M2503, 70.1553, 70T3504 (boss cover cap)
  • Boss material: Steel, Nickel plated
  • Boss assembly: EXPANDO
  • Flange dimensions:
    • Width: 57mm
    • Length: 22mm
    • Height: 3.2mm
  • Diameter of fixing holes: 8mm
  • Distance between drillings: 45mm
  • Boss drilling depth: 13mm
  • Minimum/Maximum drilling distance: 3mm / 7mm
  • Arm material: Steel, Nickel plated
  • Collision measurement (hinge arm height): 22mm
  • Side adjustment: +/- 2mm (with screw)
  • Depth adjustment: +3/-2mm (with spiral screw)
  • Gap: 1.5mm
  • Packaging: Industrial packing

Note: All plates are sold separately
