SKU:IWBCPDSCH71B9550

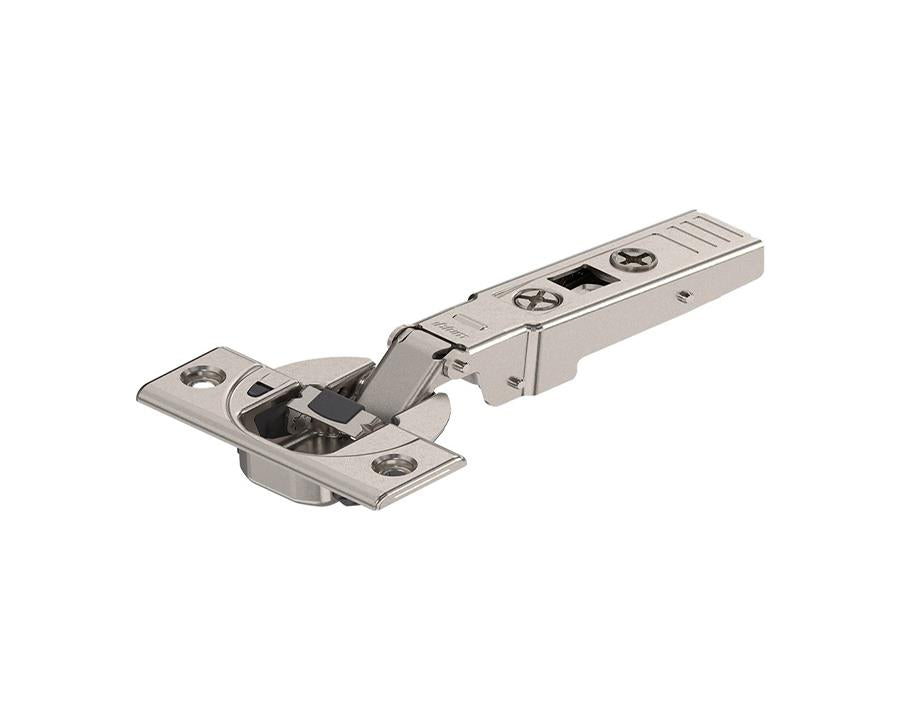

Blum CLIP top BLUMOTION Profile Door Soft Close Hinge 95 Degree. Full Overlay. Boss: Screw-On by W&B
Blum CLIP top BLUMOTION Profile Door Soft Close Hinge 95 Degree. Full Overlay. Boss: Screw-On by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Blum Hinges: Precision, Innovation, and Reliability by Wilson & Bradley
Blum's hinge systems offer a perfect blend of ingenuity and functionality. Designed for reliable performance and easy assembly, our hinges allow for 3-dimensional adjustments, ensuring optimal alignment for a variety of doors. Tested to withstand 200,000 cycles of opening and closing, Blum hinges are ideal for wood, glass, aluminum frame doors, and more—including applications for thin, thick, and angled doors.

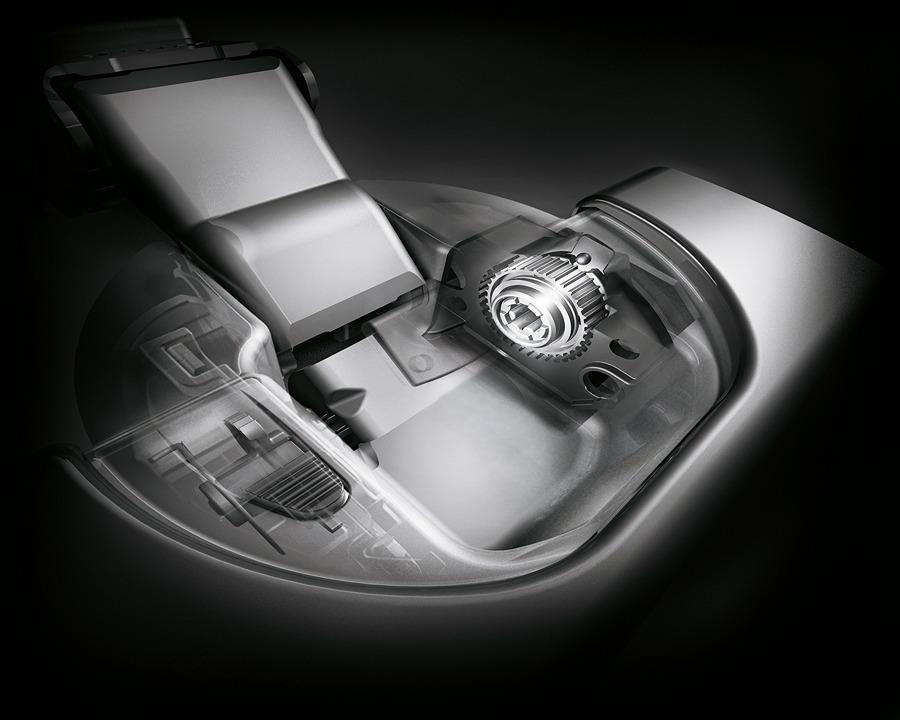

The CLIP top BLUMOTION system adapts to the dynamic forces of each door, ensuring a smooth, controlled closing action regardless of size or weight. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges to adjust the closing speed. Thanks to CLIP technology, doors snap on and off easily, with simple 3-dimensional and cam adjustments for a precise fit.
Key Features:
- Rigorously tested to endure 200,000+ cycles for lasting reliability
- 3-dimensional adjustment for precise door alignment

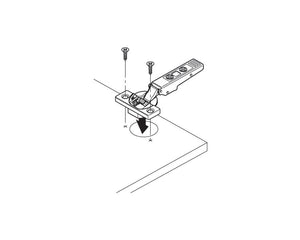

- Tool-free assembly with CLIP technology for easy installation
- Smooth, controlled closing with BLUMOTION feature
Specifications:
- Application: Profile door hinge
- Cranking: Overlay application
- Opening Angle: 95°
- Closing Mechanism: Spring-assisted
- Hinge Variant: Integrated BLUMOTION
- Cover Cap Types: 90M2503, 70.1553, 70T3504 (Boss cover cap - BHBC)
- Boss Material: Steel, Nickel-plated
- Boss Assembly: Screw-on
- Flange Dimensions: Width: 57mm, Length: 22mm, Height: 3.2mm
- Hinge Boss Drilling: 35mm diameter
- Fixing Holes: 8mm diameter, 45mm distance between holes
- Eccentric Position of Fixing Holes: 9.5mm
- Boss Drilling Depth: 13mm
- Min/Max Drilling Distance: 3mm/7mm
- Arm Material: Steel, Nickel-plated finish
- Collision Measurement: 22mm hinge arm height
- Factory Setting: 11mm

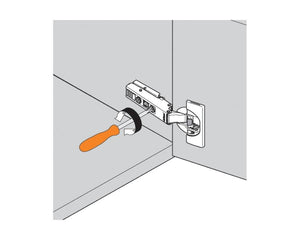

- Side Adjustment: +/- 2mm (screw-driven)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Packaging: Industrial pack, 1 piece
Note: All plates are sold separately.
