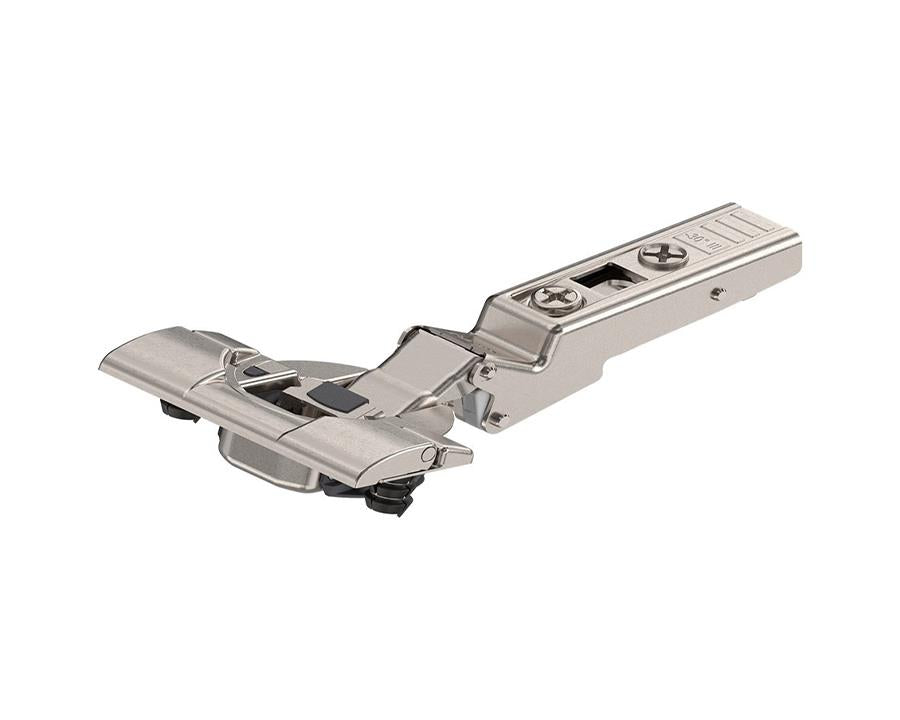

Blum CLIP top BLUMOTION Soft Close Angled Hinge -30 Degree Iii, Full Overlay. Boss: INSERTA 79B3491 by W&B
Blum CLIP top BLUMOTION Soft Close Angled Hinge -30 Degree Iii, Full Overlay. Boss: INSERTA 79B3491 by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Wilson and Bradley Angled Hinge with BLUMOTION
Wilson and Bradley hinges combine innovative engineering with durable functionality to create a system that enhances cabinet performance and design. The hinges are built to withstand over 200,000 opening and closing cycles, ensuring lasting reliability for wood, glass, aluminum frame, and thick or thin doors. We also provide specialized solutions for angled and corner applications.
The BLUMOTION feature ensures smooth, controlled door closing, regardless of size, weight, or closing force. Available in a wide range of angle settings from -50° to 50°, it’s possible to deactivate the BLUMOTION feature on one or both hinges for precise control over door closure speed. Plus, with CLIP technology, these hinges are quick to install and adjust, making door-to-cabinet assembly a breeze.
Features:
- Durable: Tested for over 200,000 cycles to ensure long-lasting performance.
- Flexible: 3-dimensional adjustment for precise alignment.
- Easy Assembly: Tool-free installation with CLIP system.
- Smooth Operation: Integrated BLUMOTION provides soft closing, regardless of door size or force.
Specifications:
- Application: Angled hinge
- Cranking: Maximum overlay
- Opening Angle: 110°
- Closing Mechanism: Spring-loaded
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 90M2603, 70.1553
- Boss Material: Nickel-plated steel
- Boss Assembly: INSERTA
- Flange Width: 57mm
- Flange Length: 27.5mm
- Flange Height: 6.4mm
- Hinge Boss Drilling: 35mm diameter
- Fixing Hole Diameter: 8mm
- Fixing Hole Distance: 45mm
- Eccentric Fixing Position: 9.5mm
- Boss Drilling Depth: 13mm
- Cabinet Angle: -30°
- Fixed Dimension/Factory Setting: 9mm
- Side Adjustment: +/- 2mm (with screw)
- Depth Adjustment: +3/-2mm (with spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Commercial packing
Note: All plates are sold separately
