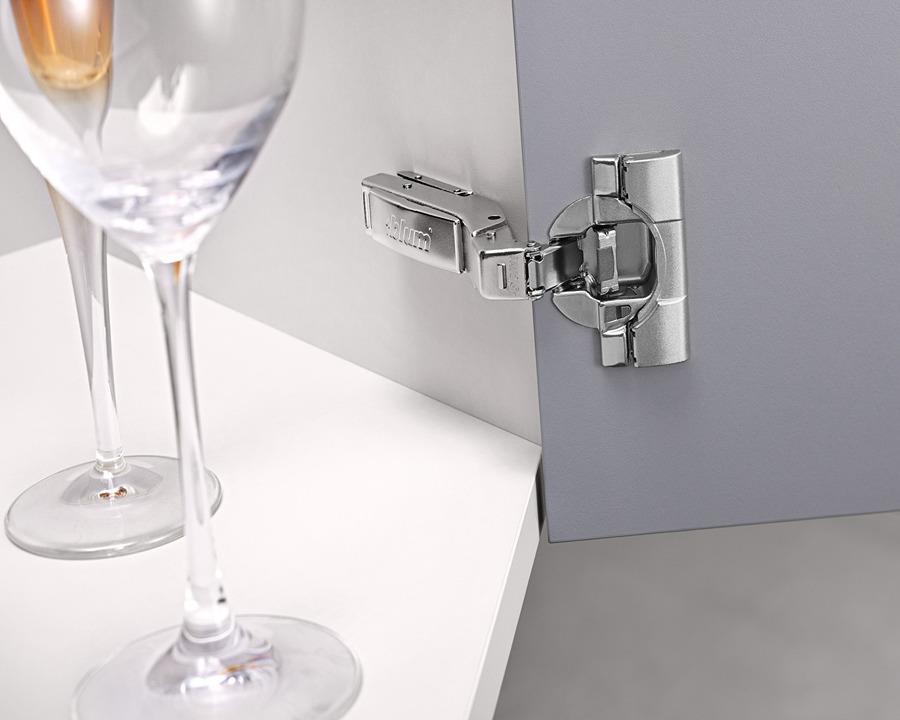

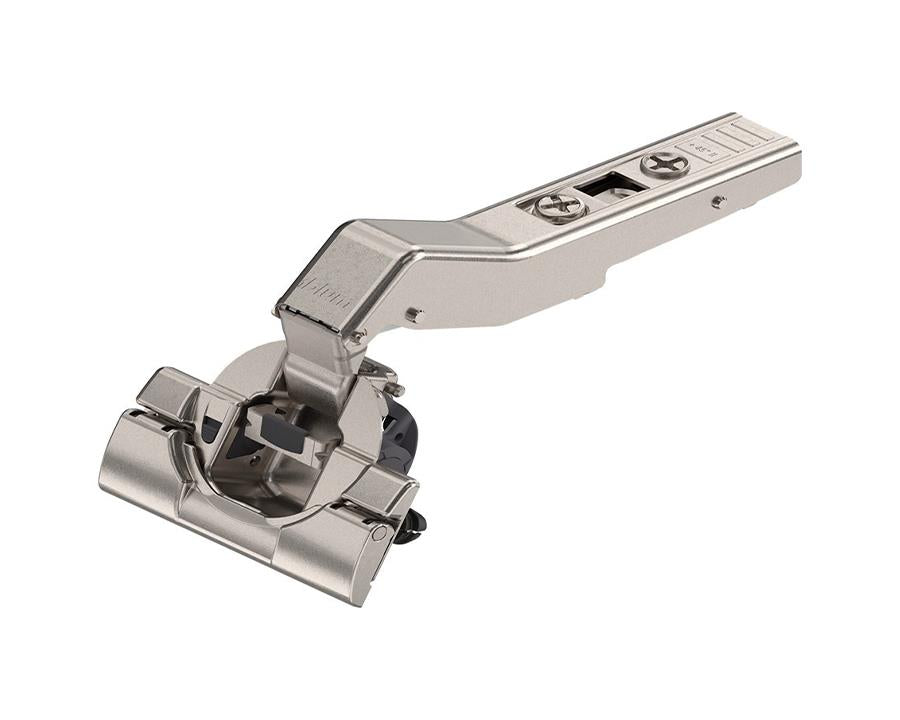

Blum CLIP top BLUMOTION Soft Close Angled Hinge 45 Degree Ii, Full Overlay. Boss: INSERTA 79B3598 by W&B
Blum CLIP top BLUMOTION Soft Close Angled Hinge 45 Degree Ii, Full Overlay. Boss: INSERTA 79B3598 by W&B
Couldn't load pickup availability
Wilson and Bradley Angled Hinge with BLUMOTION
Wilson and Bradley brings you the perfect blend of innovation, durability, and easy-to-use design with our advanced hinge systems. Crafted for precision and built to last, our hinges provide smooth, reliable performance with 3-dimensional adjustment, ensuring perfect door alignment in all situations.
Engineered to withstand over 200,000 opening and closing cycles, our hinges are versatile enough to handle wood, glass, and aluminium frame doors, as well as thin and thick doors. They are also ideal for specialized applications like blind corners and angled doors.
The BLUMOTION feature, integrated into the hinge, ensures that doors close quietly and smoothly, adapting to various sizes and weights. Adjustable between -50° and 50°, the BLUMOTION speed can be customized for a perfect, controlled closing action. With CLIP technology, you can easily snap the door onto the hinge, and make quick, precise adjustments with no tools required.
Features:
- Durability: Tested to perform over 200,000 cycles, ensuring long-term reliability.
- Versatility: Suitable for a range of door types including wood, glass, and metal frames.
- 3-Dimensional Adjustment: Allows for perfect alignment and easy fine-tuning.
- Easy Assembly: CLIP technology makes installation tool-free and quick.
Specifications:
- Application: Angled hinge
- Cranking: Maximum overlay
- Opening Angle: 110°
- Closing Mechanism: Spring-assisted
- Hinge Variant: With integrated BLUMOTION
- Cover Cap Types: 70.1503 (BPC10021), 90M2603
- Boss Material: Nickel-plated steel
- Boss Assembly: INSERTA
- Flange Width: 57mm
- Flange Length: 27.5mm
- Flange Height: 6.4mm
- Diameter of Hinge Boss Drilling: 35mm
- Fixing Hole Diameter: 8mm
- Distance Between Drillings: 45mm
- Eccentric Fixing Position: 9.5mm
- Boss Drilling Depth: 13mm
- Cabinet Angle: 45°
- Fixed Dimension: -1.5mm (factory setting)
- Side Adjustment: +/- 1.8mm (with screw)
- Depth Adjustment: +/- 2mm (via spiral screw)
- Gap: 1.5mm
- Item Package: 1 piece
- Packaging: Commercial packing
Note: All plates are sold separately
