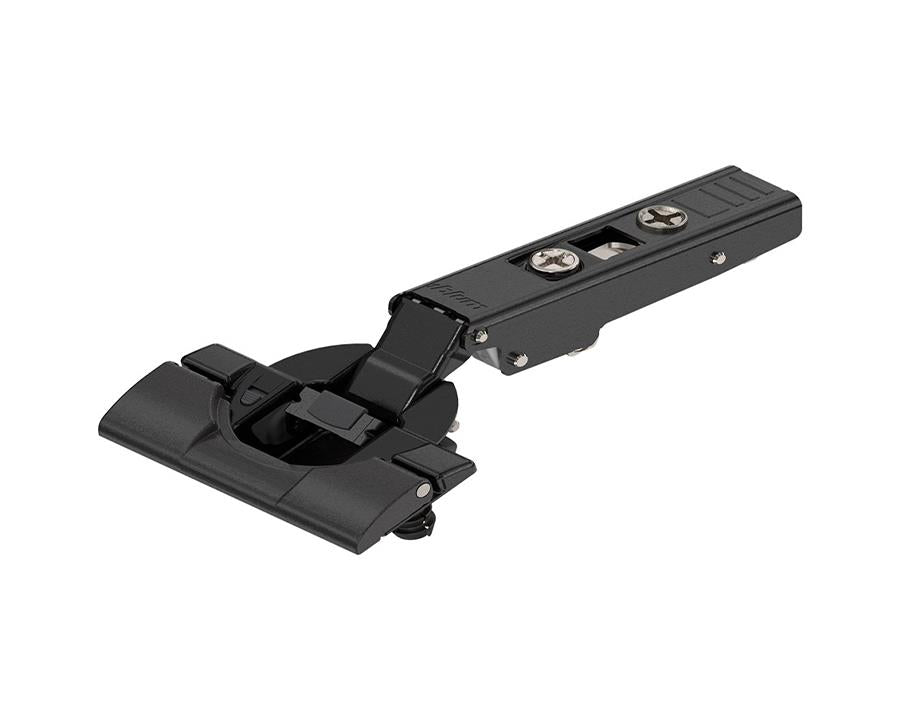

Blum CLIP top BLUMOTION Standard Hinge 110 Degree, Full Overlay. Boss: INSERTA. In onyx black 71B3590 by W&B
Blum CLIP top BLUMOTION Standard Hinge 110 Degree, Full Overlay. Boss: INSERTA. In onyx black 71B3590 by W&B
Couldn't load pickup availability
Innovative Hinge Solutions by Wilson and Bradley
Wilson and Bradley offer cutting-edge hinge systems that provide a perfect blend of functionality and design. Engineered for high performance, our hinges are built to last with enhanced adjustability and ease of assembly, while maintaining a visually appealing design. With 3-dimensional adjustability, our hinge systems allow for precise alignment and effortless installation.
Our hinges are rigorously tested to withstand 200,000 opening and closing cycles, ensuring reliability across multiple applications. Whether you are working with wood, glass, aluminum frame doors, or both thin and thick doors, we provide versatile solutions for all your needs. Special applications such as blind corners and angled doors are also easily handled with our range.
Wilson and Bradley's CLIP top BLUMOTION technology guarantees a smooth, controlled closing action, regardless of the size or force used on the door. Choose from 95°, 107°, 110°, or 155° angles, with the option to deactivate the BLUMOTION feature on one or both hinges for customized closing speeds. Our hinges also feature the CLIP system for quick, tool-free assembly, making door installation simpler and faster.
Features:
- Durability: Tested over 200,000 cycles for reliability in any application.
- Versatility: Suitable for a range of materials including wood, glass, and aluminum frame doors.
- 3-dimensional adjustment: For fine-tuning door alignment.

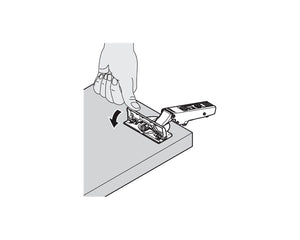

- Easy assembly: With CLIP technology for tool-free, quick door mounting.
- BLUMOTION: Integrated soft-close feature for smooth closing.
Specifications:
- Application: Standard hinge for overlay doors
- Cranking: Overlay application
- Opening angle: 110°
- Closing mechanism: With spring for smooth action
- Hinge variant: With integrated BLUMOTION for soft-closing doors
- Cover cap type: 70.1553
- Boss material: Steel, Onyx black finish
- Boss assembly: INSERTA for secure fitting
- Flange dimensions:
- Width: 57mm
- Length: 27.5mm
- Height: 6.4mm
- Hinge boss drilling: 35mm diameter
- Fixing hole dimensions:
- Diameter: 8mm
- Distance between drillings: 45mm
- Eccentric position of fixing holes: 9.5mm
- Arm material: Steel, Onyx black finish
- Collision measurement (arm hinge height): 21.5mm
- Fixed dimension/factory setting: 11mm

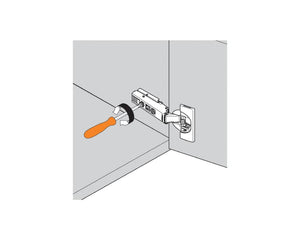

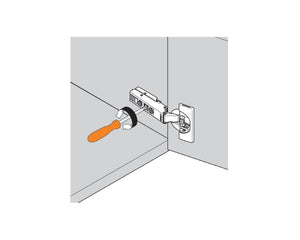

- Side adjustment: +/- 2mm (with screw)

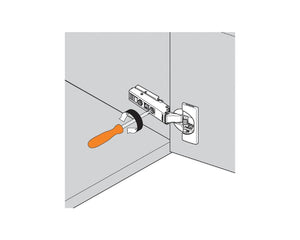

- Depth adjustment: Convenient with spiral screw (+3/-2mm)
- Gap: 1.5mm
- Item package: 1 piece
- Packaging: Industrial packing
Note: All plates are sold separately
