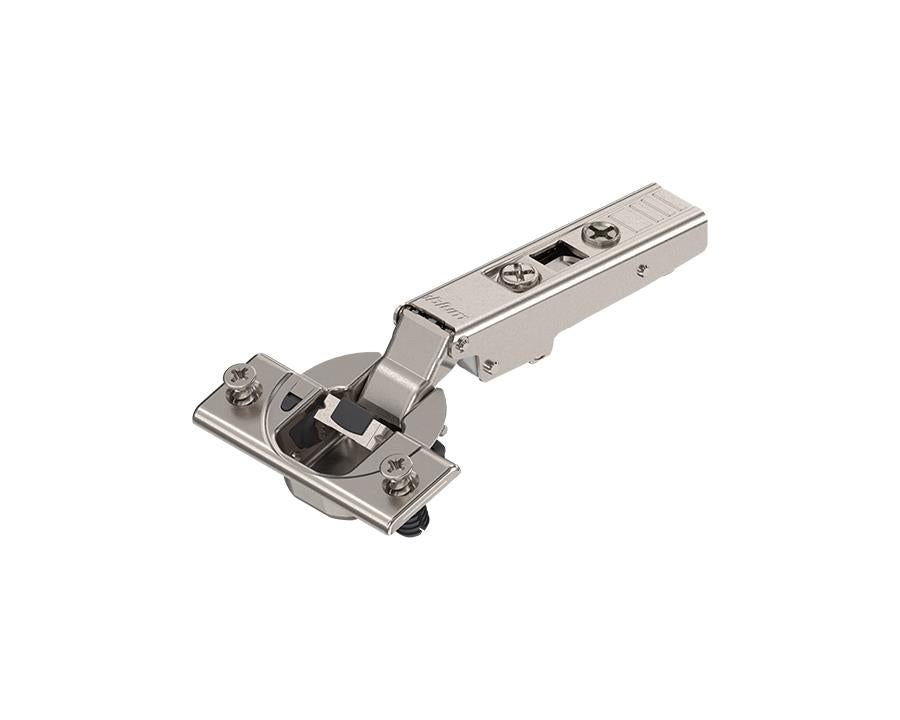

Blum CLIP top BLUMOTION Standard Soft Close Hinge 110 Degree. Full Overlay. Boss: EXPANDO 71B358E by W&B

Blum CLIP top BLUMOTION Standard Soft Close Hinge 110 Degree. Full Overlay. Boss: EXPANDO 71B358E by W&B

Regular price $10.10 AUD
Regular price Sale price $10.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley bring a new level of precision and reliability to hinge technology. Our hinges are designed to offer unparalleled functionality with 3-dimensional adjustment and long-lasting durability. Constructed to withstand 200,000 opening and closing cycles, our hinges are ideal for various applications including wood, glass, aluminum frame doors, and both thin and thick doors. We also offer specialized solutions for blind corner and angled door installations.

Our CLIP mechanism ensures a tool-free, quick, and easy installation, while BLUMOTION technology offers a smooth and controlled closing action, regardless of door size or force. Every door equipped with our hinges guarantees reliable performance with ease.

Features:

  • Durability: Tested for over 200,000 cycles, ensuring long-lasting use.
  • Versatility: Suitable for wood, glass, aluminum, and special applications.
  • 3-dimensional adjustment: Precise fine-tuning for perfect alignment.
  • BLUMOTION: Integrated technology for soft, quiet closing action.

Specifications:

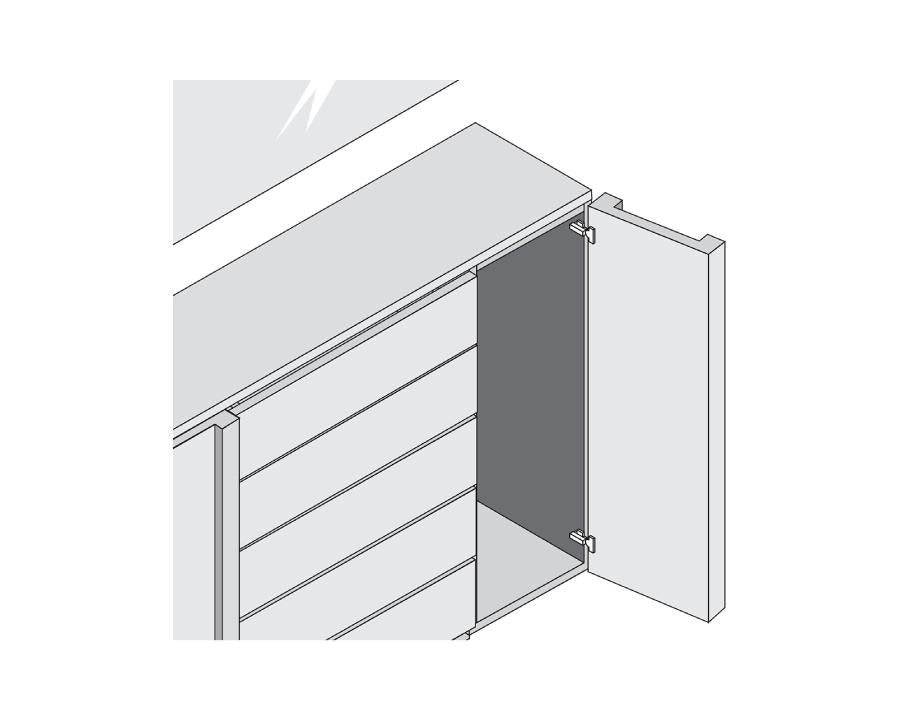

  • Application: Standard hinge for overlay doors
  • Opening angle: 110°
  • Closing mechanism: With spring for smooth closing
  • Hinge variant: With integrated BLUMOTION for soft-closing action
  • Cover cap types:
    • 90M2503
    • 70.1503 (BPC10021)
    • 70T3504 (BHBC) – Boss cover cap
  • Boss material: Steel, nickel plated
  • Boss assembly: EXPANDO for secure fit
  • Flange dimensions:
    • Width: 57mm
    • Length: 22mm
    • Height: 3.2mm
  • Hinge boss drilling: 35mm diameter
  • Fixing hole dimensions:
    • Diameter: 8mm
    • Distance between drillings: 45mm
    • Eccentric position of fixing holes: 9.5mm
  • Arm material: Steel, nickel plated
  • Collision measurement (hinge arm height): 21.5mm
  • Fixed dimension/factory setting: 11mm
  • Side adjustment: +/- 2mm (with screw)
  • Depth adjustment: Convenient with spiral screw (+3/-2mm)
  • Gap: 1.5mm
  • Item package: 1 piece
  • Packaging: Industrial packing
