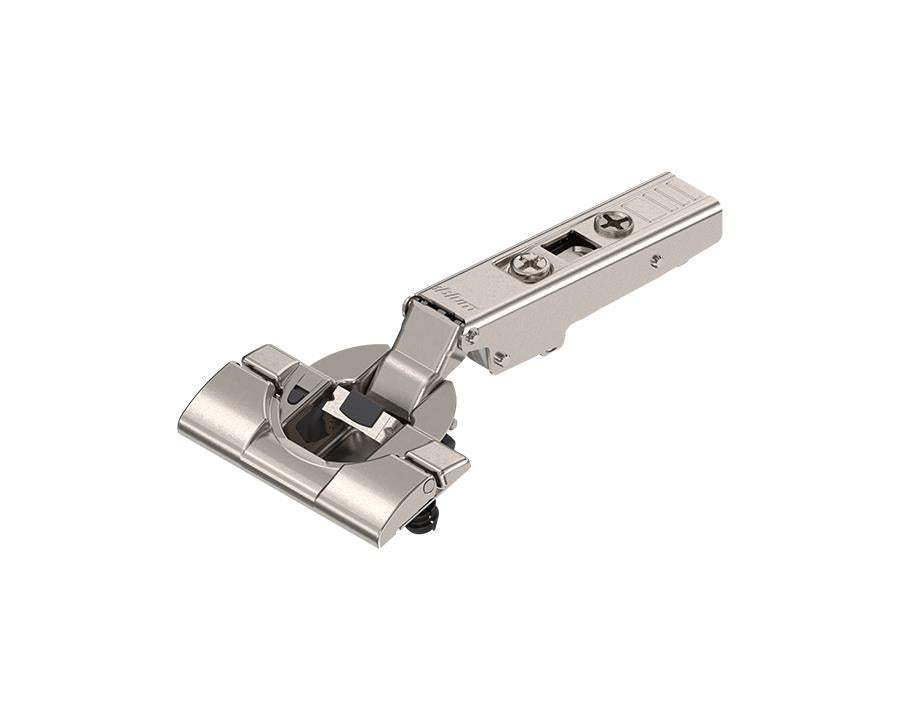

Blum CLIP top BLUMOTION Hinge
Blum’s CLIP top BLUMOTION hinge offers a superior solution for both functionality and design, with seamless adjustment features and smooth, controlled door closure. Constructed for durability with over 200,000 opening and closing cycles, this hinge range is perfect for a variety of applications, from wood to glass to aluminum-framed doors, as well as thicker and thinner door options.
Thanks to Blum’s CLIP technology, the assembly of doors to cabinets is completely tool-free, quick, and easy. The integrated BLUMOTION ensures a soft, quiet, and controlled closing action, regardless of the door's size, weight, or how forcefully it's closed. Whether you're working with angled doors or special corner solutions, this hinge adapts to meet those needs with ease.
Key Features:
- Tested to withstand 200,000 opening and closing cycles, ensuring long-term durability
- Soft and smooth door closure, thanks to the integrated BLUMOTION feature
- 3-dimensional adjustment for precise fine-tuning
- Quick, tool-free installation with the CLIP mechanism for convenience
- Versatile design suitable for a wide range of applications
Specifications:
- Application: Standard hinge (Overlay application)
- Opening angle: 110°
- Closing mechanism: Spring-loaded with integrated BLUMOTION
- Cover cap types: 90M2503, 70.1503 (BPC10021)
- Boss material: Steel (Nickel-plated finish)

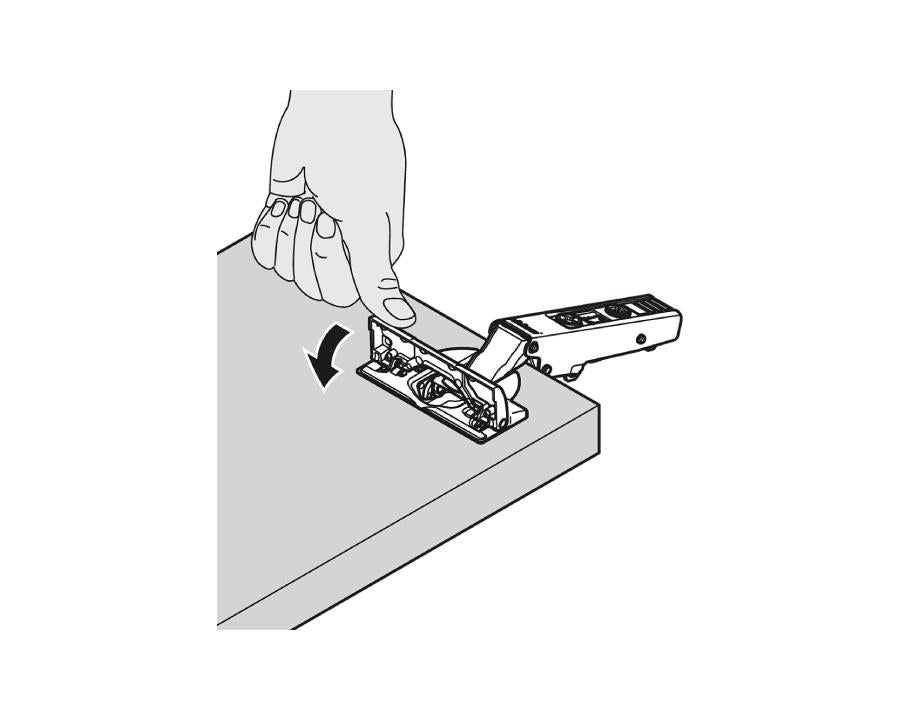

- Boss assembly: INSERTA
- Flange width: 57mm
- Flange length: 27.5mm
- Flange height: 6.4mm
- Diameter hinge boss drilling: 35mm
- Diameter of fixing holes: 8mm
- Distance between drillings: 45mm
- Eccentric position of fixing holes to hinge boss hole: 9.5mm
- Boss drilling depth: 13mm
- Minimum/Maximum drilling distance: 3mm to 7mm
- Arm material: Steel (Nickel-plated finish)
- Collision measurement (arm hinge height): 21.5mm
- Fixed dimension/factory setting: 11mm

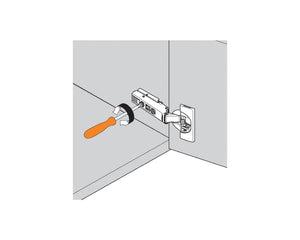

- Side adjustment: +/-2mm (with screw)

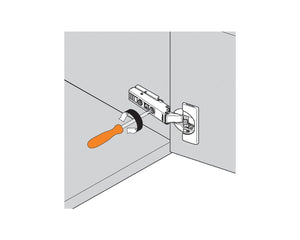

- Depth adjustment: +3/-2mm (with spiral screw)
- Gap: 1.5mm
- Item package: 1 piece
- Packaging type: Industrial packing
Note: Mounting plates are sold separately.
