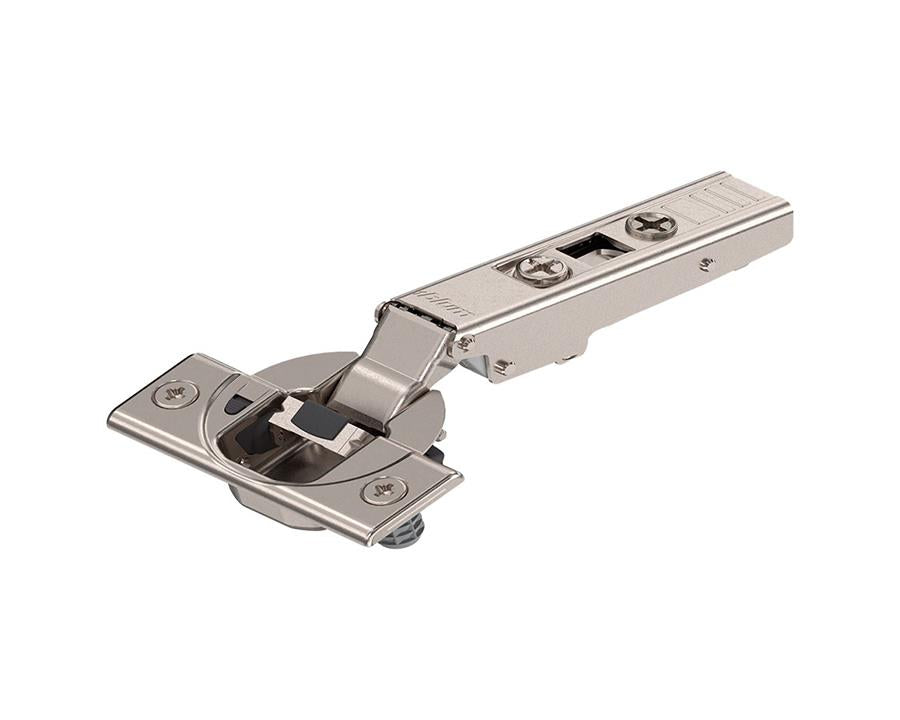

Blum CLIP top BLUMOTION Hinge by Wilson and Bradley
Blum’s CLIP top BLUMOTION hinge offers superior performance, with innovative features designed to enhance door functionality and ease of use. These hinges provide a smooth and controlled closing action, regardless of door size, weight, or closing force, making them suitable for a wide range of applications. Featuring 3-dimensional adjustment for precise fine-tuning, the hinge is engineered to withstand over 200,000 cycles for durability and long-lasting reliability.
The integrated BLUMOTION system ensures a soft, controlled close, while the CLIP mechanism allows for quick and tool-free door installation. Whether for wood, glass, or aluminum doors, the BLUMOTION hinge system adapts seamlessly to various design needs.
Features:
Tested to withstand over 200,000 opening and closing cycles for exceptional durability

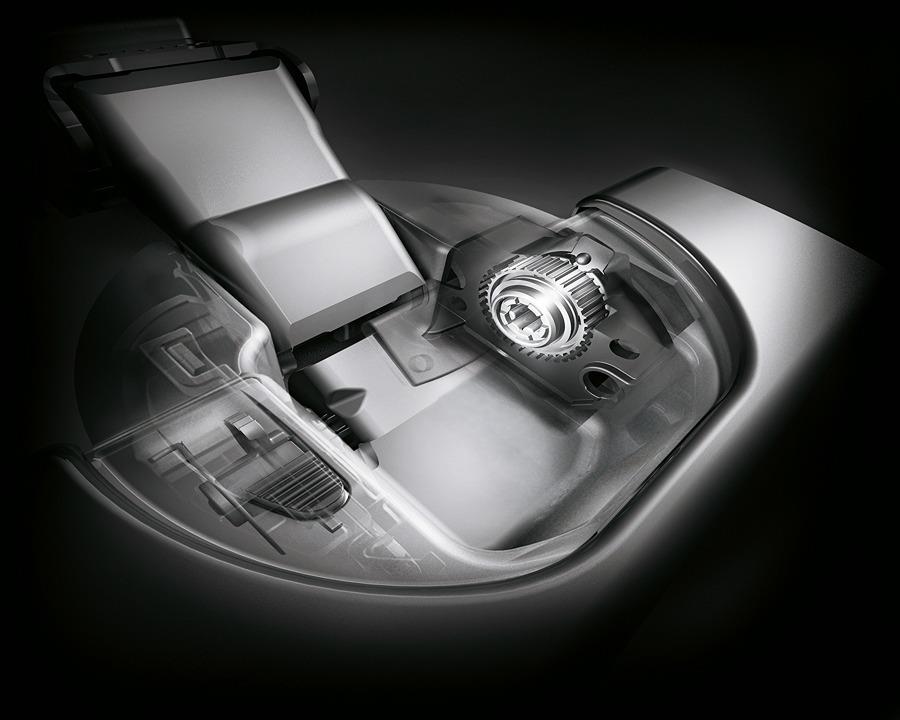

Integrated BLUMOTION feature for smooth, soft closing

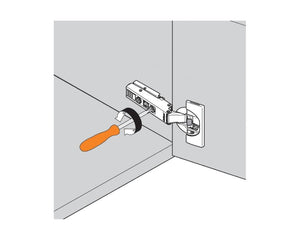

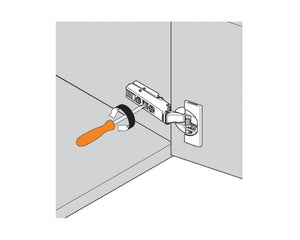

3-dimensional adjustment for easy fine-tuning
Tool-free assembly with Blum’s CLIP technology for fast and easy installation
Specifications:
Application: Standard hinge, overlay application
Opening angle: 110°
Closing mechanism: Spring-loaded with integrated BLUMOTION
Cover cap types: 90M2503, 70.1503 (BPC10021), 70T3504-boss cover cap (BHBC)
Boss material: Steel, nickel-plated finish
Boss assembly: Knock-in
Flange width: 57mm
Flange length: 22mm
Flange height: 3.2mm
Diameter hinge boss drilling: 35mm
Diameter of fixing holes: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
