Hinge

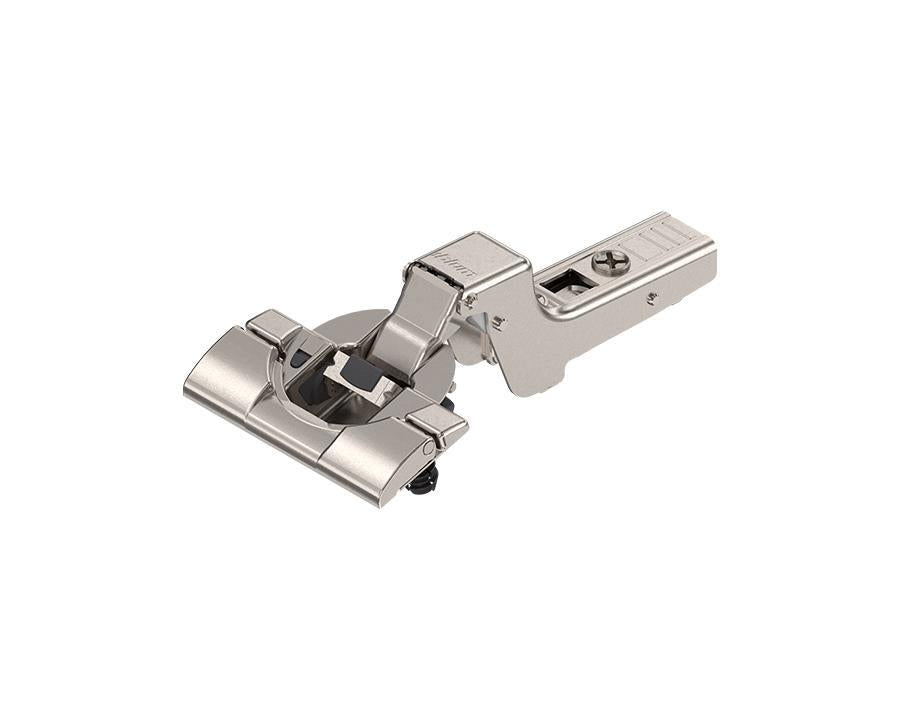

Blum CLIP top BLUMOTION Standard Soft Close Hinge 110 Degree. Inset Application. Boss: INSERTA by W&B

SKU: IWBCSSCH71B3790

Price

$17.97

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinges: Precision and Durability by Wilson and Bradley

Blum’s hinge systems are the result of ingenuity and innovative design. Combining reliable performance, enhanced adjustment, easy assembly, and attractive aesthetics, our hinges provide smooth, 3-dimensional adjustment for perfect door alignment.

Tested to endure 200,000 cycles of opening and closing, Blum hinges offer versatile solutions for wood, glass, and aluminum frame doors, as well as both thin and thick doors. Special solutions are also available for unique applications, such as blind corners and angled doors.

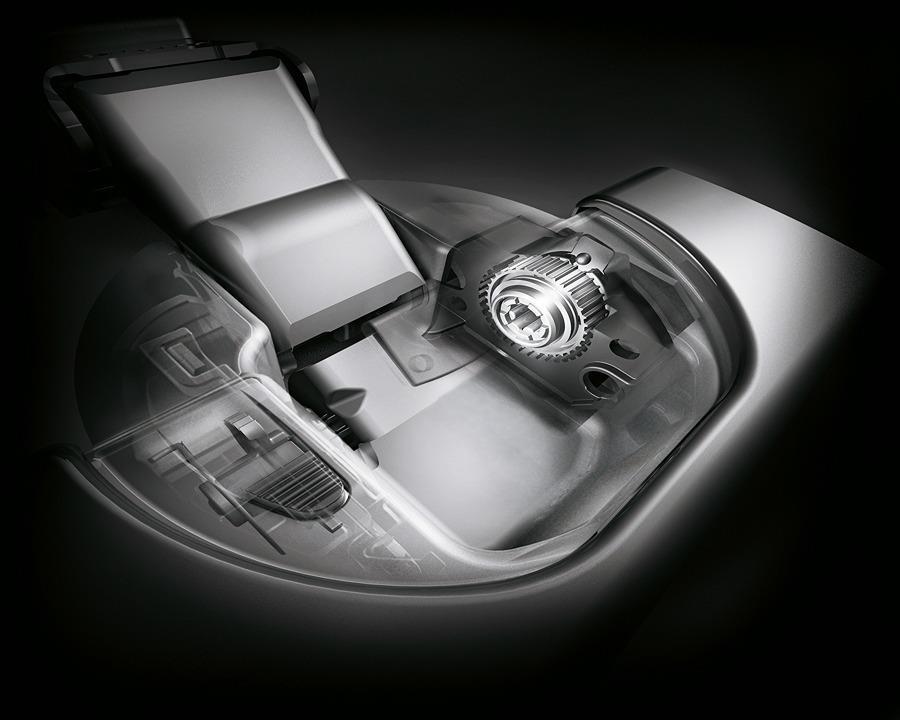

The CLIP top BLUMOTION system adjusts to the specific dynamics of each door, ensuring a smooth, controlled closing action, regardless of the door’s size or weight. Available in 95°, 107°, 110°, and 155° angles, the BLUMOTION feature can be deactivated on one or both hinges for optimal closing speed. CLIP technology allows for easy installation and 3-dimensional adjustments, all without tools.

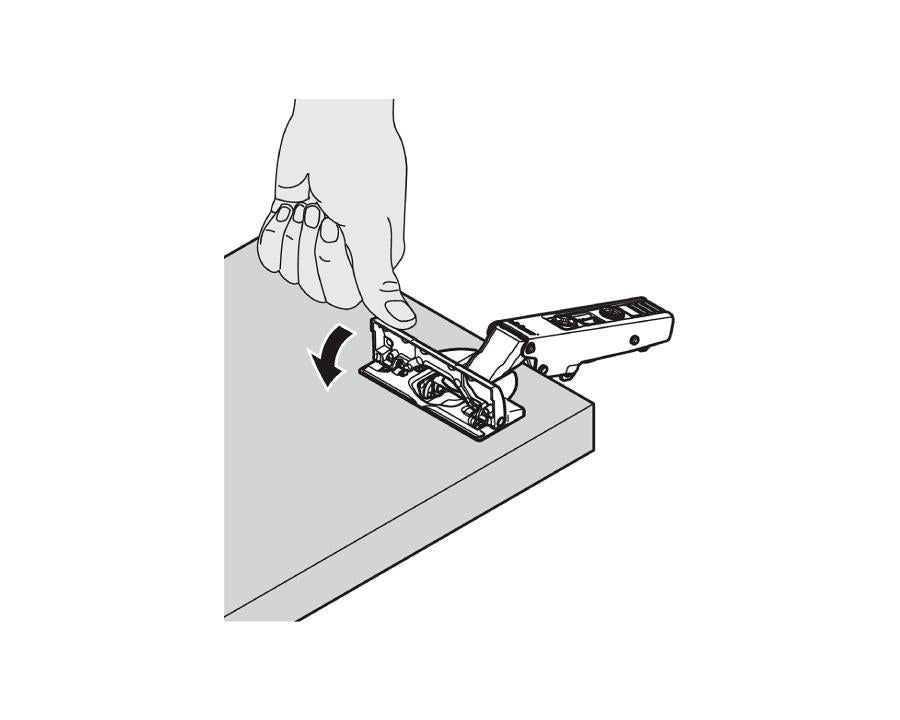

Blum's trusted CLIP mechanism simplifies the door-to-cabinet assembly, making the process fast, tool-free, and efficient. With Blum hinges, every door opens and closes with dependable ease.

Key Features:

Tested for 200,000 cycles to ensure long-lasting performance
Versatile for all door types and applications
3-dimensional adjustment for precise alignment
Tool-free, easy assembly and adjustments

Specifications:

Application: Standard hinge, inset application
Opening Angle: 110°
Closing Mechanism: Spring-assisted
Hinge Variant: With integrated BLUMOTION
Cover Cap Types: 94M3603, 70.1663
Boss Material: Steel, nickel-plated finish
Boss Assembly: INSERTA
Flange Dimensions: Width: 57mm, Length: 27.5mm, Height: 6.4mm
Hinge Boss Drilling: 35mm diameter
Fixing Holes: 8mm diameter, 45mm distance between holes
Eccentric Position of Fixing Holes: 9.5mm
Boss Drilling Depth: 13mm
Minimum/Maximum Drilling Distance: 3mm/7mm
Arm Material: Steel, nickel-plated finish
Collision Measurement: 39.5mm arm height
Factory Setting: -7mm

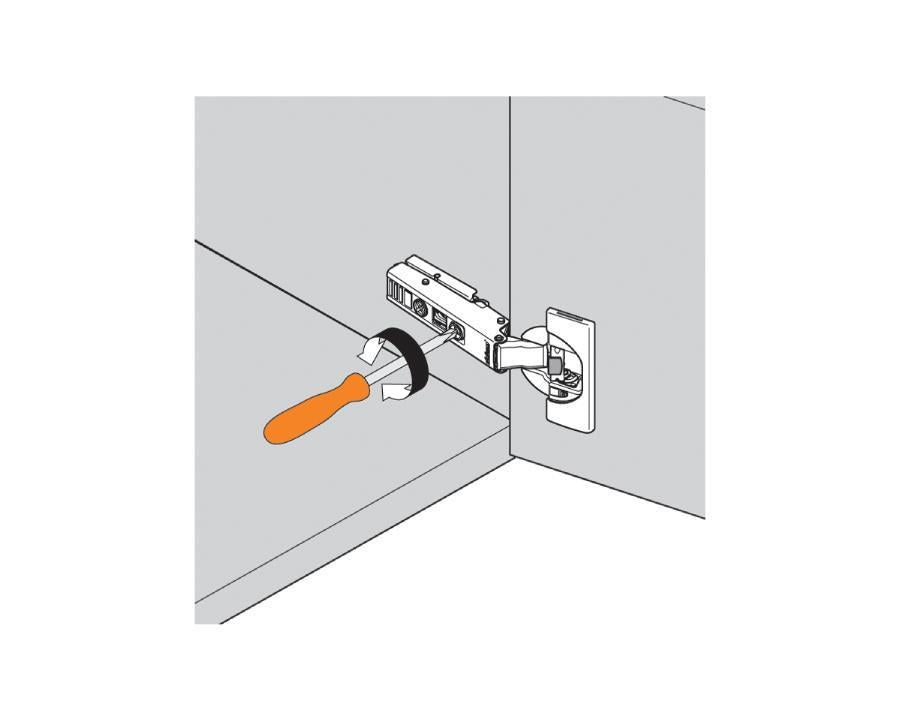

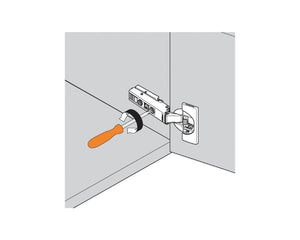

Side Adjustment: +/- 2mm (screw-driven)

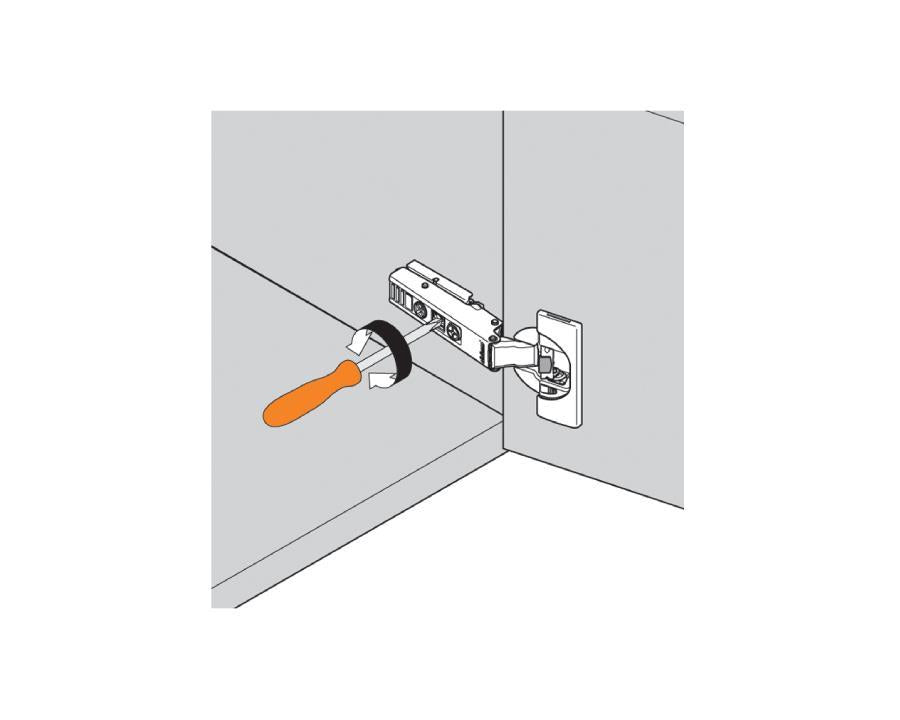

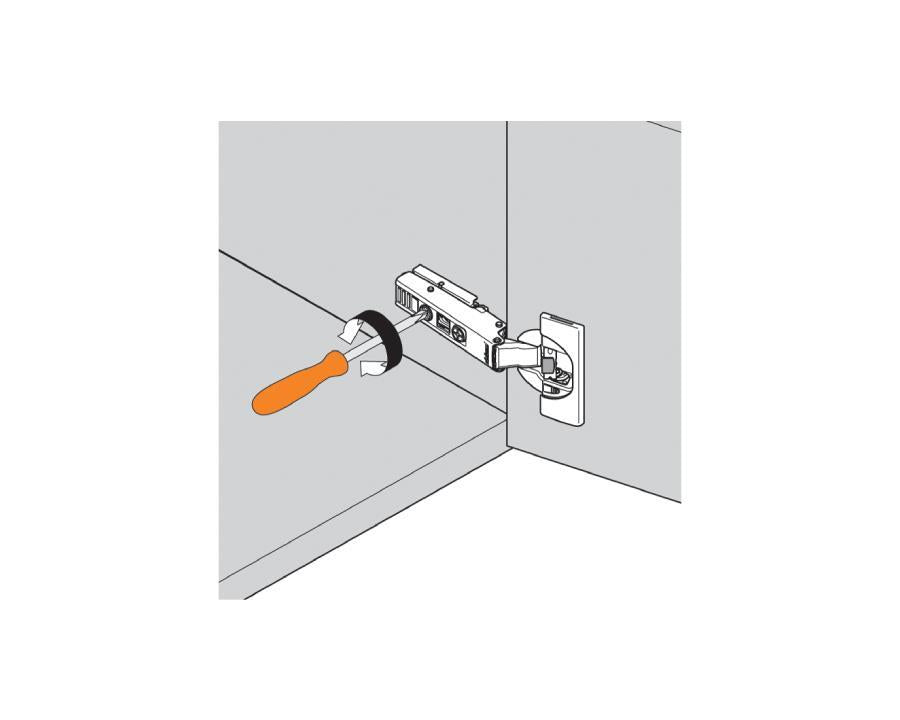

Depth Adjustment: +3/-2mm (spiral screw)
Gap: 1.5mm
Item Package: 1 piece
Packaging: Industrial packing

Note: Plates sold separately.

Installation & documents+

Technical brochures, installation guides, sizing diagrams and product documents can appear here when available.

Product Overview Programme Brochure Technical Brochure
