SKU:IWBCTCH134D

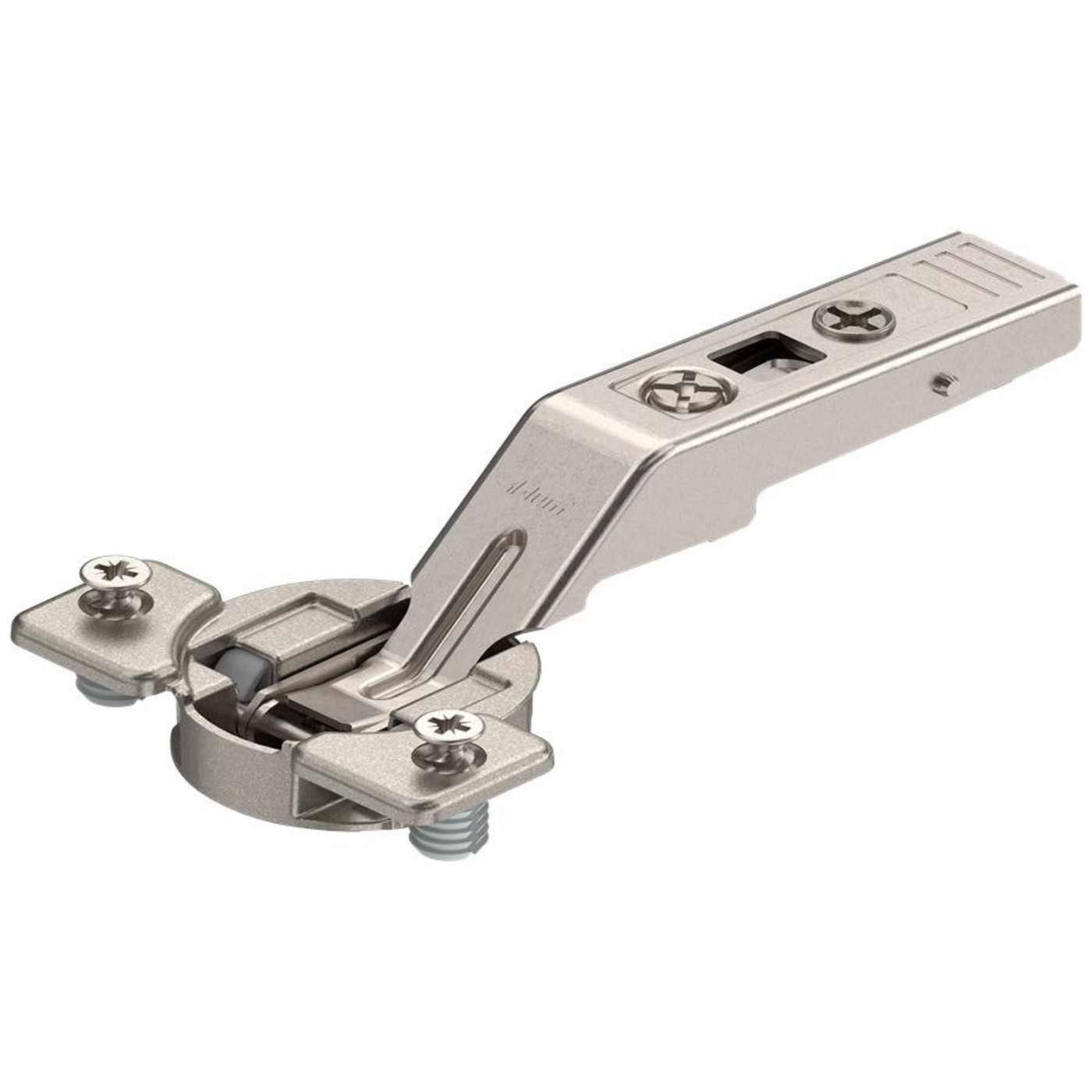

Blum CLIP top Centre Hinge For AVENTOS Overhead Stay Bi-Fold Lift Systems 134 Degree Unsprung Boss EXPANDO BM78553E by W&B
Blum CLIP top Centre Hinge For AVENTOS Overhead Stay Bi-Fold Lift Systems 134 Degree Unsprung Boss EXPANDO BM78553E by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Installation & documents

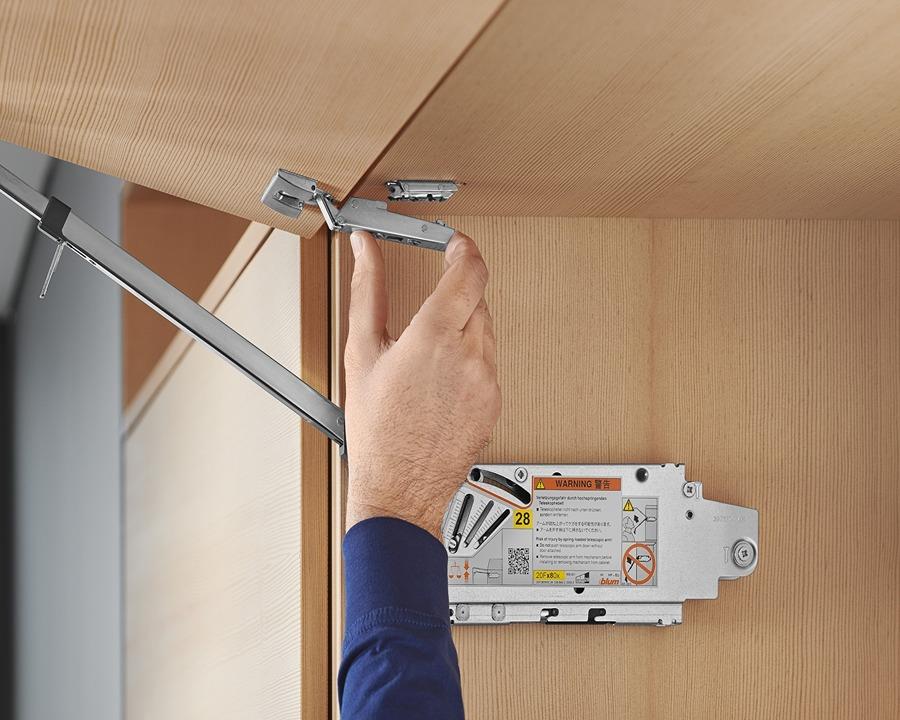

AVENTOS HF Lift System by Wilson and Bradley
The AVENTOS HF Lift System by Wilson and Bradley brings exceptional motion quality to wall cabinets, providing effortless access to your storage spaces with smooth and reliable operation. Even heavy or large fronts open with ease, delivering maximum freedom of movement.
Thanks to BLUMOTION, AVENTOS HF offers smooth, silent, and effortless closing action, making every interaction with your cabinets a satisfying experience. With 104° and 83° opening angle stops, it minimizes the space needed above the cabinet, ensuring compatibility with both standard and wide lift systems. The system opens easily, holds in place, and closes silently, no matter the size of the front.
Ideal for cabinet heights ranging from 480 mm to 1040 mm and widths up to 1800 mm, AVENTOS HF is a versatile solution for custom applications throughout the home.
Features:
- Quick installation with CLIP technology for an easy and secure setup
- Balanced design ensures that fronts remain in the desired position
- BLUMOTION integrated for silent and smooth closing
- Perfect for high and mid-wall units
- Compatible with aluminum fronts, wood with glass, and asymmetrical designs
Specifications:
- Application: Centre hinge for AVENTOS bi-fold lift systems
- Opening Angle: 134°
- Closing Mechanism: Unsprung
- Cover Cap Type: 90M2503, 70.1503
- Boss Material: Zinc
- Boss Finish: Nickel-plated
- Boss Assembly: EXPANDO
- Flange Width: 57mm
- Flange Length: 20mm
- Flange Height: 3mm
- Diameter of Hinge Boss Drilling: 35mm
- Diameter of Fixing Holes: 8mm
- Distance Between Drillings: 45mm
- Eccentric Position of Fixing Holes: 9.5mm
- Boss Drilling Depth: 12.6mm
- Minimum Drilling Distance: 3mm
- Maximum Drilling Distance: 6mm
- Arm Material: Steel
- Arm Finish: Nickel-plated
- Collision Measurement (Hinge Arm Height): 21mm
- Side Adjustment: +/- 2mm (with screw)
- Depth Adjustment: +1.5/-3mm (convenient spiral screw)
- Hinge Accessories: Includes dowel plate (177H3100) and furniture hinge (70T5590BTL)
- Item Package: 2 per set (includes 2 CLIP centre hinges, 2 CLIP 120° hinges, 6MPL)
- Packaging: Commercial packing
Note: All plates are sold separately
