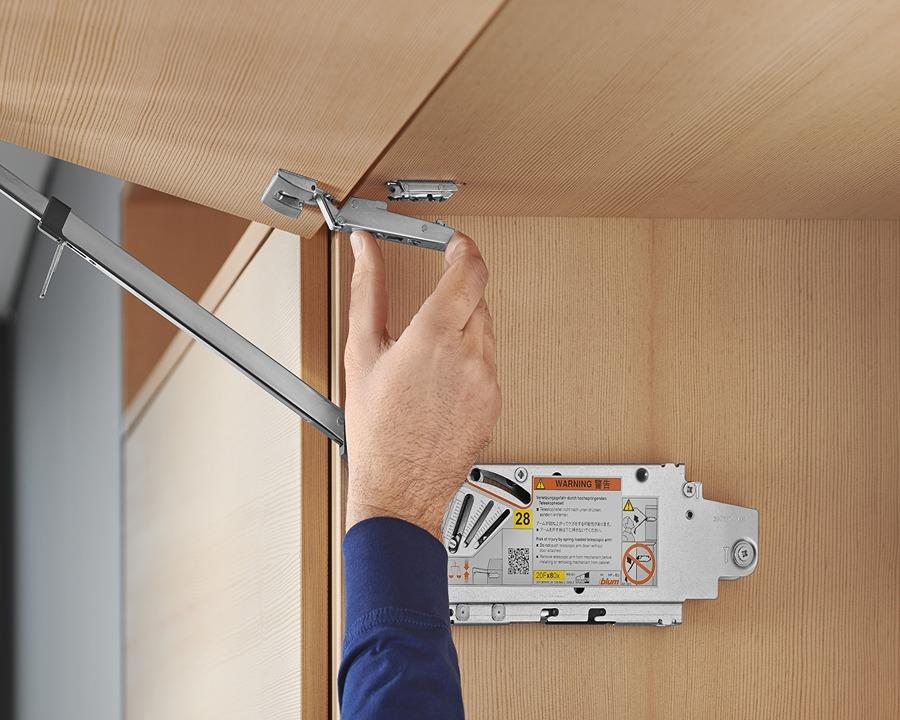

AVENTOS HF Lift System by Wilson and Bradley
The AVENTOS HF Lift System by Wilson and Bradley enhances wall cabinets across the home, providing smooth, easy access to contents while ensuring full freedom of movement. Even large, heavy fronts open effortlessly, making it ideal for all areas of the home.
Thanks to integrated BLUMOTION, AVENTOS HF offers a seamless opening and closing experience. The 104° and 83° opening angle stops require minimal space above the cabinet, allowing the system to remain in place and close silently, even on wide lift systems.
Perfect for cabinet heights from 480 to 1040 mm and widths up to 1800 mm, AVENTOS HF is the perfect solution for various custom applications, combining ease of use with practical functionality.
Features:
The AVENTOS HF Lift System by Wilson and Bradley enhances wall cabinets across the home, providing smooth, easy access to contents while ensuring full freedom of movement. Even large, heavy fronts open effortlessly, making it ideal for all areas of the home.
Thanks to integrated BLUMOTION, AVENTOS HF offers a seamless opening and closing experience. The 104° and 83° opening angle stops require minimal space above the cabinet, allowing the system to remain in place and close silently, even on wide lift systems.
Perfect for cabinet heights from 480 to 1040 mm and widths up to 1800 mm, AVENTOS HF is the perfect solution for various custom applications, combining ease of use with practical functionality.
Features:
- Quick and easy installation with CLIP technology
- Balanced design keeps fronts in the desired position
- Silent and smooth closing action with BLUMOTION
- Ideal for high and mid-sized wall units
- Complements aluminium, wood-glass combinations, and asymmetrical fronts
- Application: Centre hinge for AVENTOS bi-fold lift systems
- Opening Angle: 134°
- Closing Mechanism: Unsprung
- Cover Cap Type: 90M2503 & 70.1503
- Boss Material: Zinc
- Boss Finish: Nickel-plated
- Boss Assembly: Screw-on
- Flange Width: 57 mm
- Flange Length: 20 mm
- Flange Height: 3 mm
- Diameter of Hinge Boss Drilling: 35 mm
- Distance Between Drillings: 45 mm
- Eccentric Position of Fixing Holes: 9.5 mm
- Boss Drilling Depth: 12.6 mm
- Minimum Drilling Distance: 3 mm
- Maximum Drilling Distance: 6 mm
- Arm Material: Steel
- Arm Finish: Nickel-plated
- Collision Measurement (Hinge Arm Height): 21 mm
- Side Adjustment: +/- 2 mm (with screw)
- Depth Adjustment: Convenient spiral screw (+1.5/-3 mm)
- Hinge Accessories: Mounting plate 17SH3100, furniture hinge 70T5550.TL enclosed

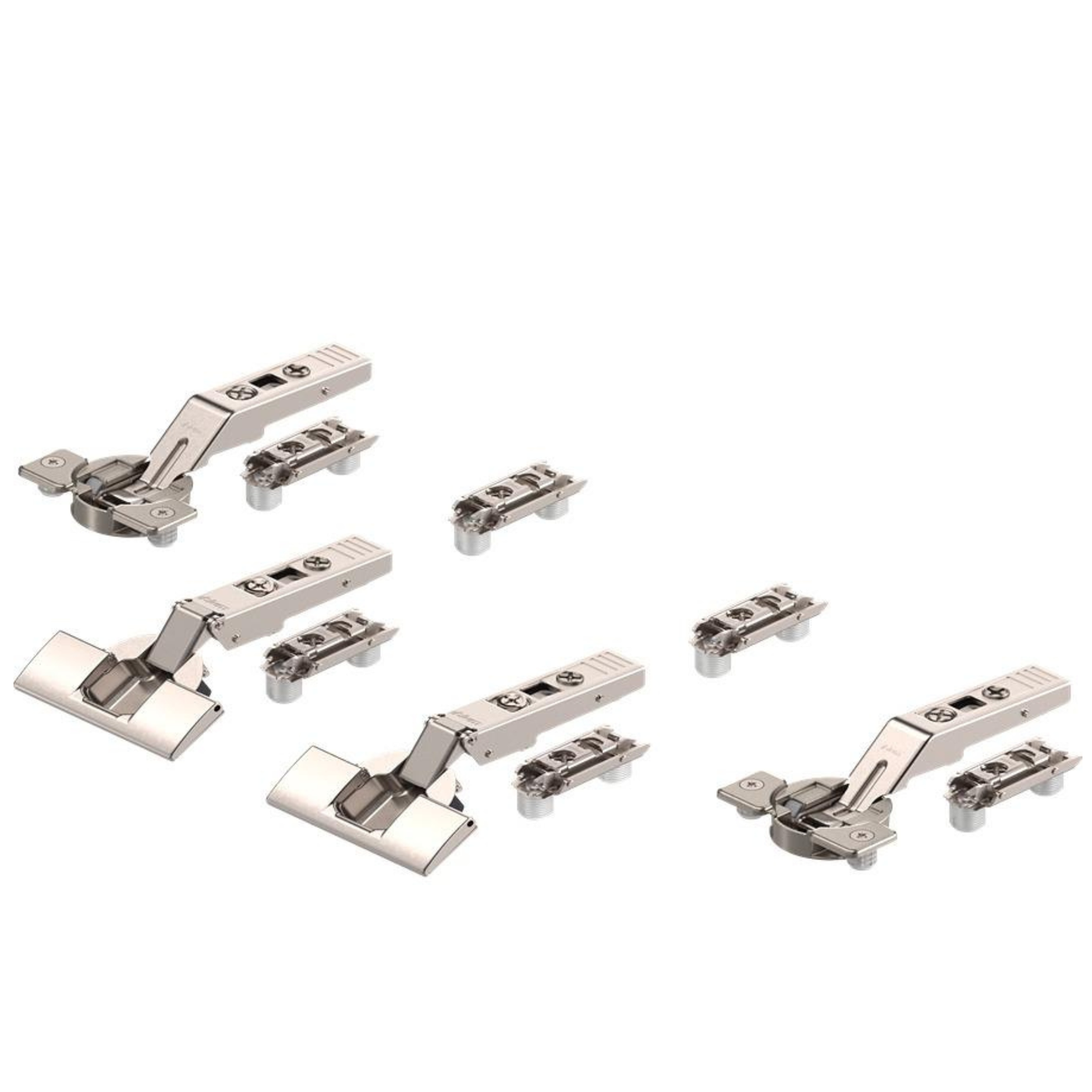

- Item Package: 2 per set (2 CLIP centre hinges, 2 CLIP 120° hinges, 6 MPL)
- Packaging: Printed bag and carton, commercial packing
