AVENTOS HF Lift System by Wilson and Bradley
The AVENTOS HF Lift System by Wilson and Bradley offers premium motion for wall cabinets, providing effortless access to contents and full freedom of movement. Its intuitive design ensures even large and heavy fronts open with ease.
Integrated with BLUMOTION, the AVENTOS HF system enhances the opening and closing experience, making it both smooth and silent. The 104° and 83° opening angle stops minimize the space needed above the cabinet, while wide lift systems open effortlessly, stay in place, and close quietly, all thanks to BLUMOTION.
Perfect for cabinet heights ranging from 480 to 1040 mm and widths up to 1800 mm, AVENTOS HF is ideal for custom applications throughout the home.
Features:
Fast and simple installation with CLIP technology
Balanced design allows fronts to remain in the desired position
Silent and effortless closing with BLUMOTION
Suitable for high and mid-sized wall units
Compatible with aluminium, wood-glass combinations, and asymmetrical fronts
Specifications:

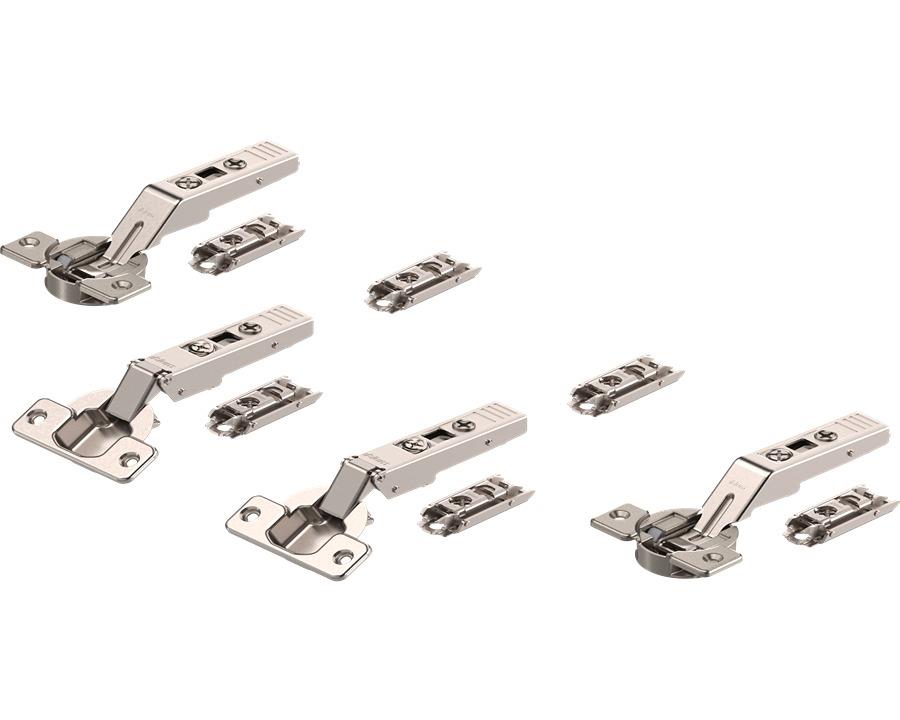

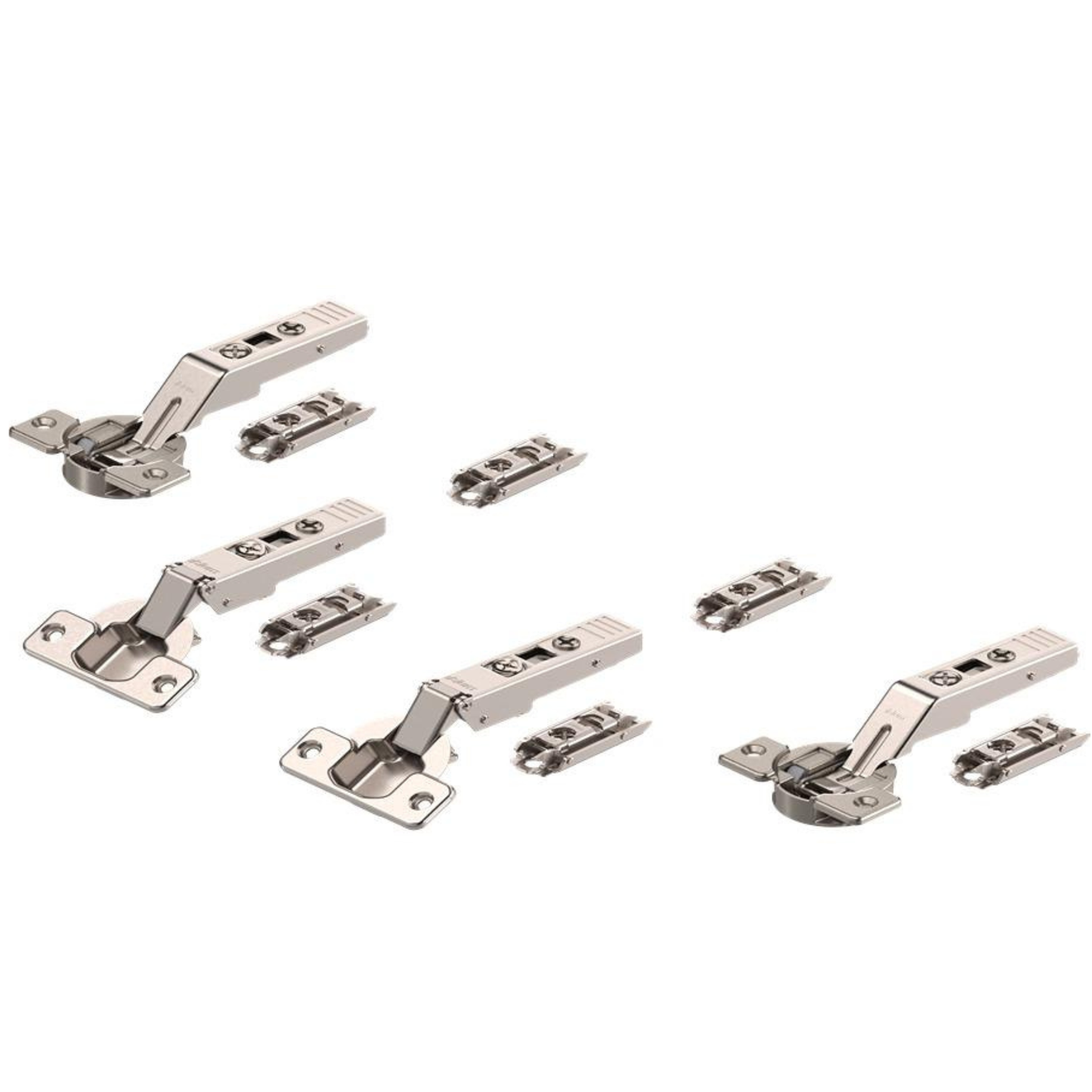

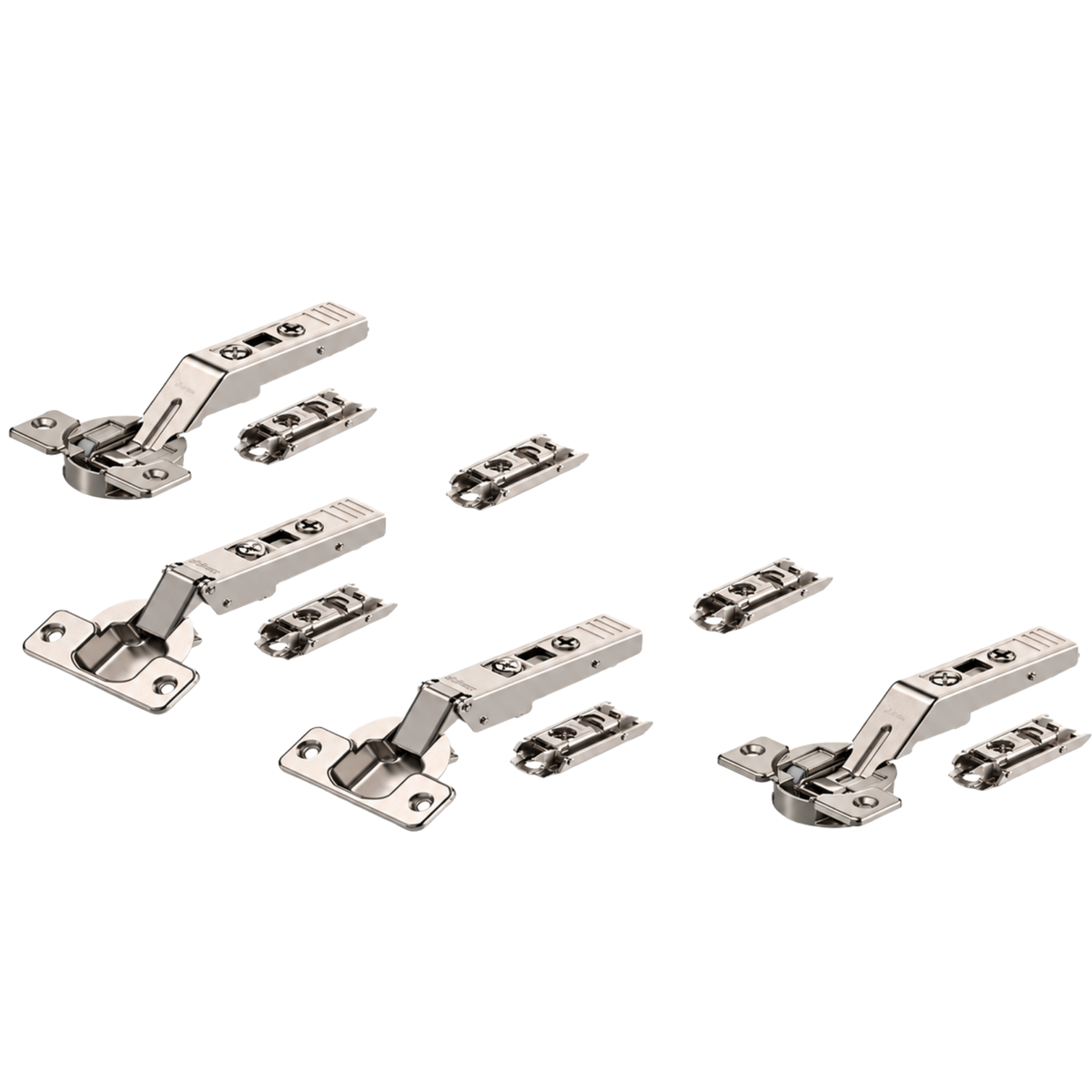

Application: Centre hinge for AVENTOS bi-fold lift systems
Opening Angle: 134°
Closing Mechanism: Unsprung
Cover Cap Type: 90M2503 & 70.1503
Boss Material: Zinc
Boss Finish: Nickel-plated
Boss Assembly: Screw-on
Flange Width: 57 mm
Flange Length: 20 mm
Flange Height: 3 mm
Diameter of Hinge Boss Drilling: 35 mm
Distance Between Drillings: 45 mm
Eccentric Position of Fixing Holes: 9.5 mm
Boss Drilling Depth: 12.6 mm
Minimum Drilling Distance: 3 mm
Maximum Drilling Distance: 6 mm
Arm Material: Steel
Arm Finish: Nickel-plated
Collision Measurement (Hinge Arm Height): 21 mm
Type of Side Adjustment: Screw-based (+/- 2 mm)
Type of Depth Adjustment: Convenient spiral screw (+1.5/-3 mm)
Hinge Accessories: Mounting plate 17SH3100 and furniture hinge 70T5550.TL enclosed
Item Package: 2 per set (2 CLIP centre hinges, 2 CLIP 120° hinges, 6 MPL)
Packaging: Printed bag and carton, commercial packing
