Wilson and Bradley Glass Door Hinges
Wilson and Bradley's innovative hinge systems combine robust functionality with refined design. Offering precise 3-dimensional adjustment, these hinges ensure smooth operation, reliable performance, and easy assembly.
Our hinges are tested to endure 200,000 cycles of opening and closing, making them a perfect solution for various door types—whether wood, glass, aluminum, or both thin and thick doors. Special solutions for blind corner and angled doors are also available.

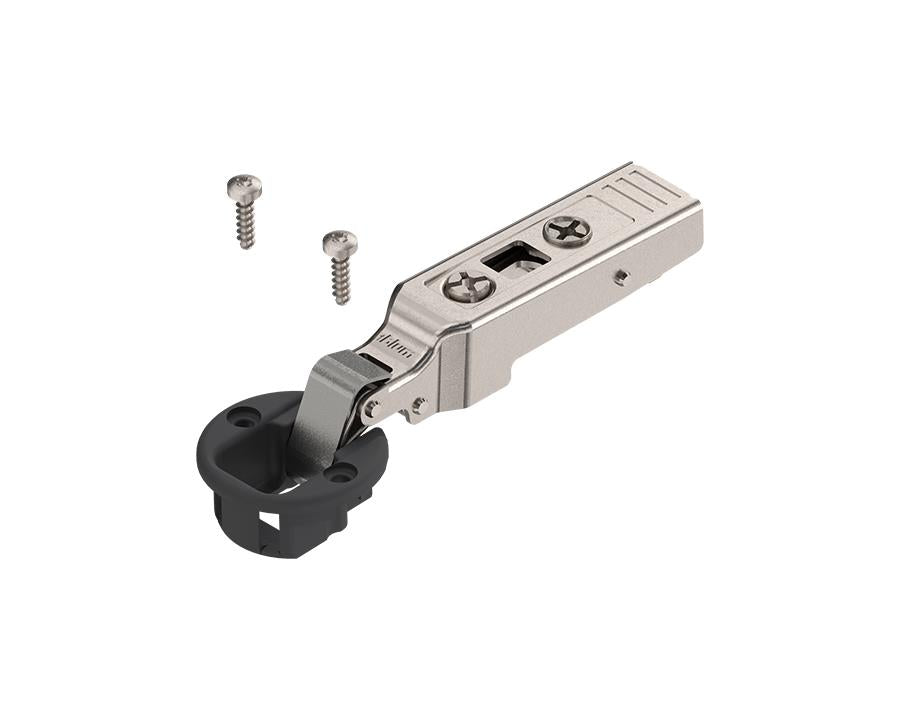

The CLIP top glass door hinge (94°) is designed for glass doors with front thicknesses from 4.5mm to 7mm. With tool-free, fast assembly and the ability to easily remove the door using the clip-on mechanism, this hinge offers both convenience and functionality.
Wilson and Bradley’s reliable CLIP mechanism makes the door-to-cabinet assembly quick and tool-free, ensuring smooth operation with every use.
Features:
- Tested for over 200,000 opening and closing cycles for durability
- Compatible with a wide range of applications, including glass doors
- 3-dimensional adjustment for precise alignment
- Easy, tool-free assembly and adjustments
Specifications:
- Application: Glass door hinge
- Cranking: Overlay application
- Opening Angle: 94°
- Closing Mechanism: Spring-assisted
- Cover Cap Types: 90M2603, 70.1553 (BPC10021)
- Boss Material: Nylon, Black finish
- Boss Assembly: Screw-on
- Flange Height: 2.5mm
- Diameter of Hinge Boss Drilling: 26mm
- Distance Between Drillings: 22mm
- Minimum Drilling Distance: 5.5mm
- Maximum Drilling Distance: 7mm
- Arm Material: Steel, Nickel-plated finish
- Collision Measurement (Hinge Arm Height): 19mm
- Fixed Dimension/Factory Setting: 10mm
- Side Adjustment: +0.5mm/-3.5mm
- Depth Adjustment: +/- 2mm
- Gap: 3mm
- Item Package: 1 piece
- Packaging: Commercial packing
Note: All plates are sold separately
